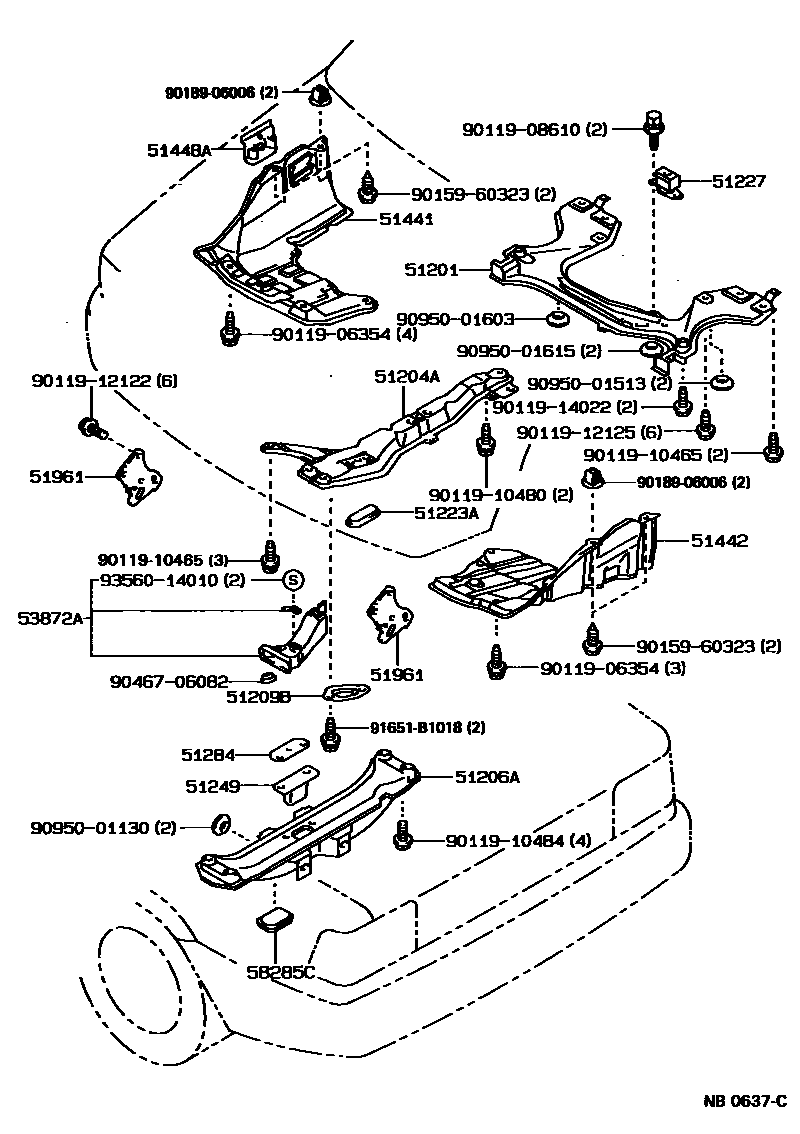

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12280iAE92198708-198710

sub51201-12281

sub90950-06001

main51201-12281iAE92198710-198711

sub51201-12282

sub90950-01603

main51201-12282iAE92198711-199206

main51201-12290iAE95198802-199009

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12060iAE92198708-199206

main51204-12070iAE95198802-199009

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12030iAE92198708-199206

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE9#198708-199206

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAE95198708-199206

sub51223-20030

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12030iAE92198708-198811

sub51227-12031

main51227-12031iAE92198811-199206

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12020iAE92198708-198712

sub51249-12030

main51249-12030iAE92198712-198811

sub51249-12040

main51249-12040iAE92..SED;AE92..WG..CND;AE92..WG..3FC..USA198811-199206

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-12010iAE92..WG..5F..USA198803-199206

51441COVER, ENGINE UNDER, NO.1

main51441-12120iAE9#198708-199206

51442COVER, ENGINE UNDER, NO.2

main51442-12050iAE92..5F198708-199206

main51442-12060iAE9#..ATM198708-199206

main51442-12070iAE95..5F198802-199009

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE9#198708-199206

51961HOOK, NO.1

main51963-12170iAE9#198708-199206

53872ADUCT, AIR, LOWER

main53872-12020iAE95..5F198802-199009

58285CCOVER, REAR FLOOR HOLE

main58285-12020iAE92198708-199206

main58285-12030iAE95198802-199009

9011906354

main90119-06354

9011908610

main90119-08610

9011910465

main90119-10465

9011910480

main90119-10480

9011910484

main90119-10484

9011912122

main90119-12122

9011912125

main90119-12125

9011914022

main90119-14022

9015960323

main90159-60323

9018906006

main90189-06006

9046706082

main90467-06082

9095001130

main90950-01130

9095001513

main90950-01513

9095001603

main90950-01603

9095001615

main90950-01615

91651B1018

main91651-B1018

9356014010

main93560-14010

31 parts on this diagram · 1 diagram in section
