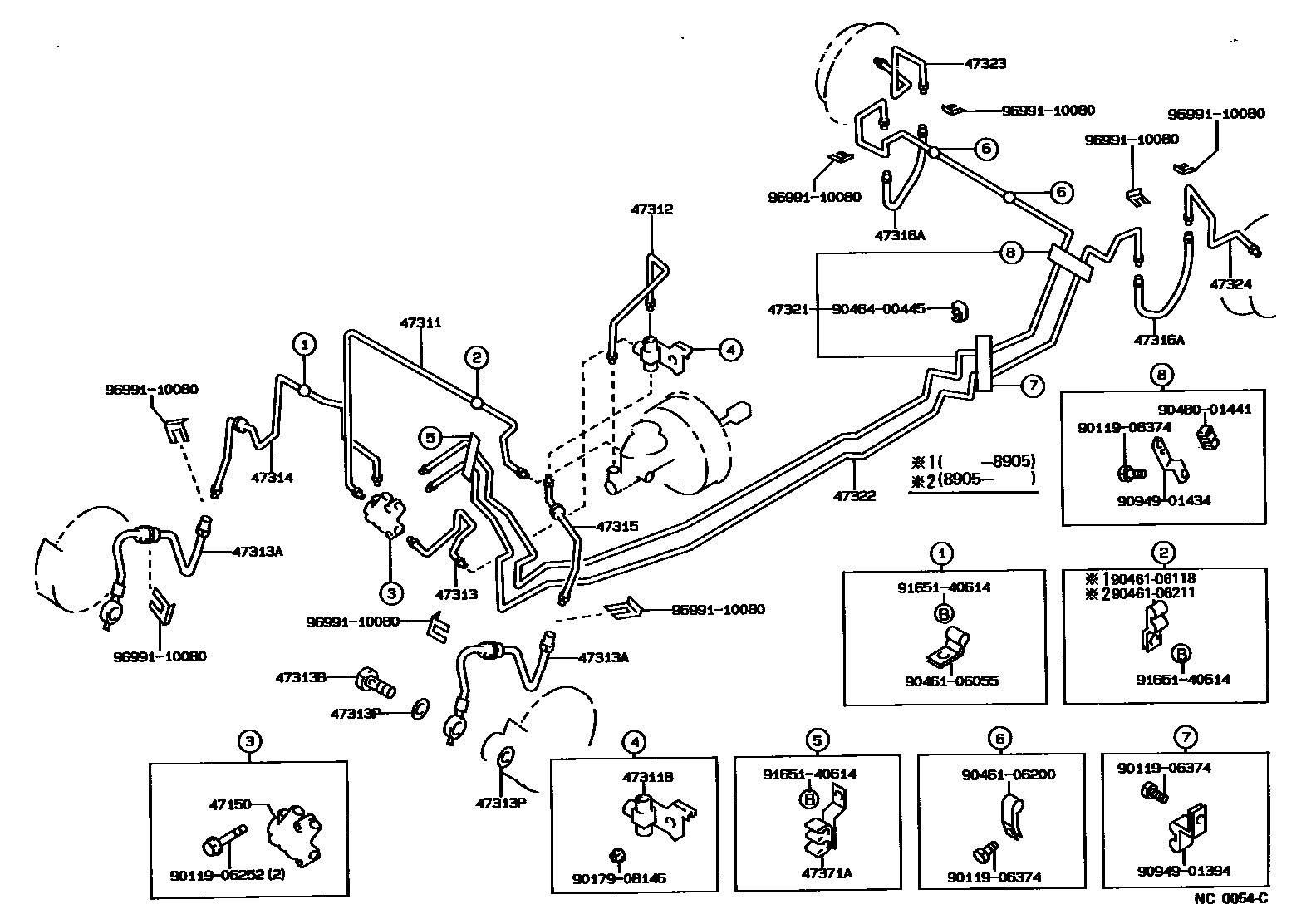

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
9011906252
9011906374
9017908146
9046106055
9046106118
9046106200
9046106211
9046400445
9048001441
9094901394
9094901434
9165140614
9699110080
29 parts on this diagram · 2 diagrams in section
