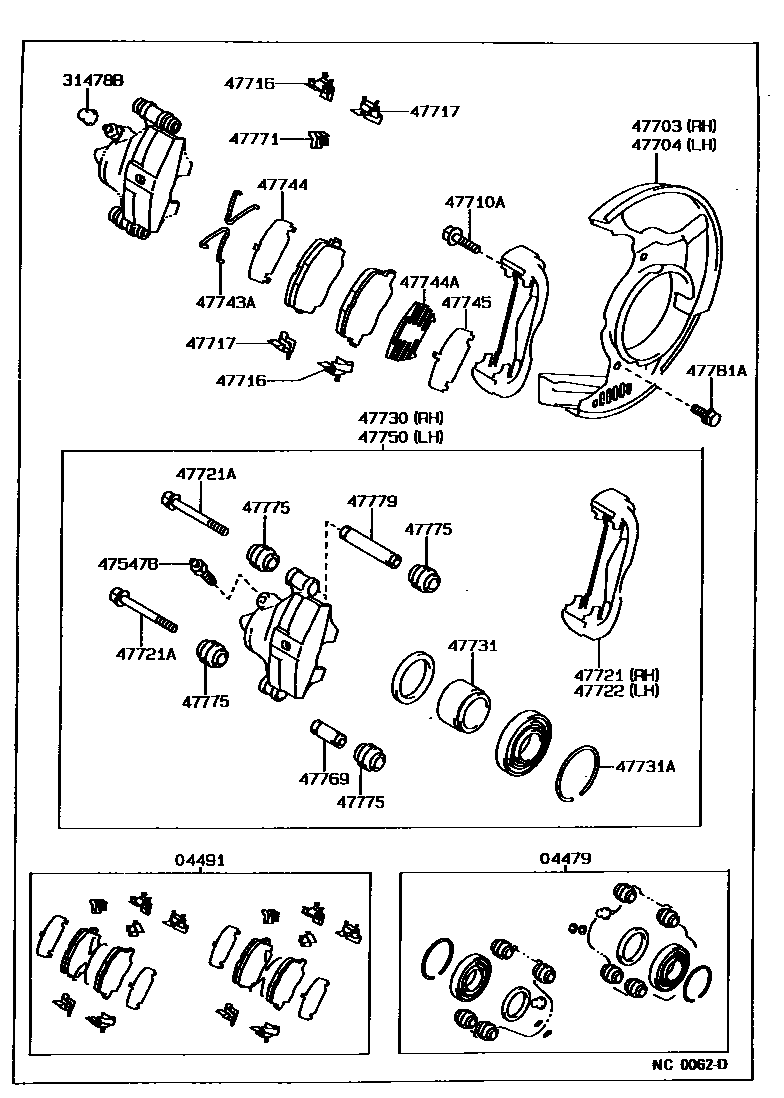

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE92..WG;AE92..SED..USA198708-199206

main04479-12140iAE95198908-199009

04491PAD KIT, DISC BRAKE, FRONT

main04491-12300iAE92198708-198812

sub04491-12301

main04491-12301iAE92..USA198812-198908

sub04465-12010

main04491-12340iAE95198802-198812

sub04491-12341

main04491-12341iAE95;AE92..CND198812-198908

sub04491-12342

main04491-12401iAE92..WG;AE92..SED..USA198908-199206

sub04465-12010

main04491-12431iAE92..SED..CND198908-199206

sub04491-12432

main04491-12470iAE95198908-198910

sub04491-20461

main04491-20461iAE95198910-199009

sub04465-21010

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE9#198708-199206

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE9#198708-199206

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-12120iAE9#198708-198901

sub47703-12121

main47703-12121iAE9#198901-198908

main47781-12150iAE9#198908-199206

sub47781-20290

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-12120iAE9#198708-198901

sub47704-12121

main47704-12121iAE9#198901-198908

main47782-12150iAE9#198908-199206

sub47782-20290

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE9#198708-199206

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iAE9#198708-198812

sub47716-32031

main47716-32031iAE92..WG;AE92..SED..USA198812-199206

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iAE9#198708-198812

sub47717-32031

main47717-32031iAE92..WG;AE92..SED..USA198812-199206

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iAE92198708-199206

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAE95;AE92..CBR198708-199008

*9-1.25PX71-25

main90119-09004iAE95;AE92..CBR;AE92..WG..EFI;AE92..SED..USA..EFI198708-199206

*9-1.25PX91-25

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iAE95;AE92..CBR;AE92..WG..EFI;AE92..SED..USA..EFI198708-199206

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iAE92..WG;AE92..SED..USA198708-199206

main47730-12350iAE92198802-199102

sub47730-12310

main47730-12370iAE95198908-199008

47731PISTON, FRONT DISC BRAKE

main47731-12130iAE95198908-199008

main47731-12150iAE95;AE92..CND198708-199206

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAE92..WG;AE92..SED..USA198708-199206

main90522-64003iAE95198908-199008

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12070iAE92..WG;AE92..SED..USA199010-199206

main47743-32010iAE9#198708-199010

sub47743-12070

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011iAE9#198708-198908

sub47744-32010

main47744-32010iAE92198908-199206

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-12020iAE95198802-198812

main47742-32040iAE95198812-199206

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-16011iAE92198708-198908

sub47744-32010

main47745-12050iAE95198802-198812

main47745-32040iAE95198812-199206

47750CYLINDER ASSY, DISC BRAKE, LH

main47730-12350iAE95;AE92..CND..CBR198901-199101

sub47730-12310

main47750-12310iAE92..USA..CBR198901-199206

main47750-12350iAE9#198708-199102

main47750-12370iAE95198908-199008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAE95;AE92..CBR;AE92..WG..EFI;AE92..SED..USA..EFI198708-199206

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iAE95;AE92..CBR;AE92..WG..EFI;AE92..SED..USA..EFI198708-199206

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010iAE9#198708-199206

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAE95;AE92..CBR;AE92..WG..EFI;AE92..SED..USA..EFI198708-199206

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAE9#198708-199206

25 parts on this diagram · 2 diagrams in section
