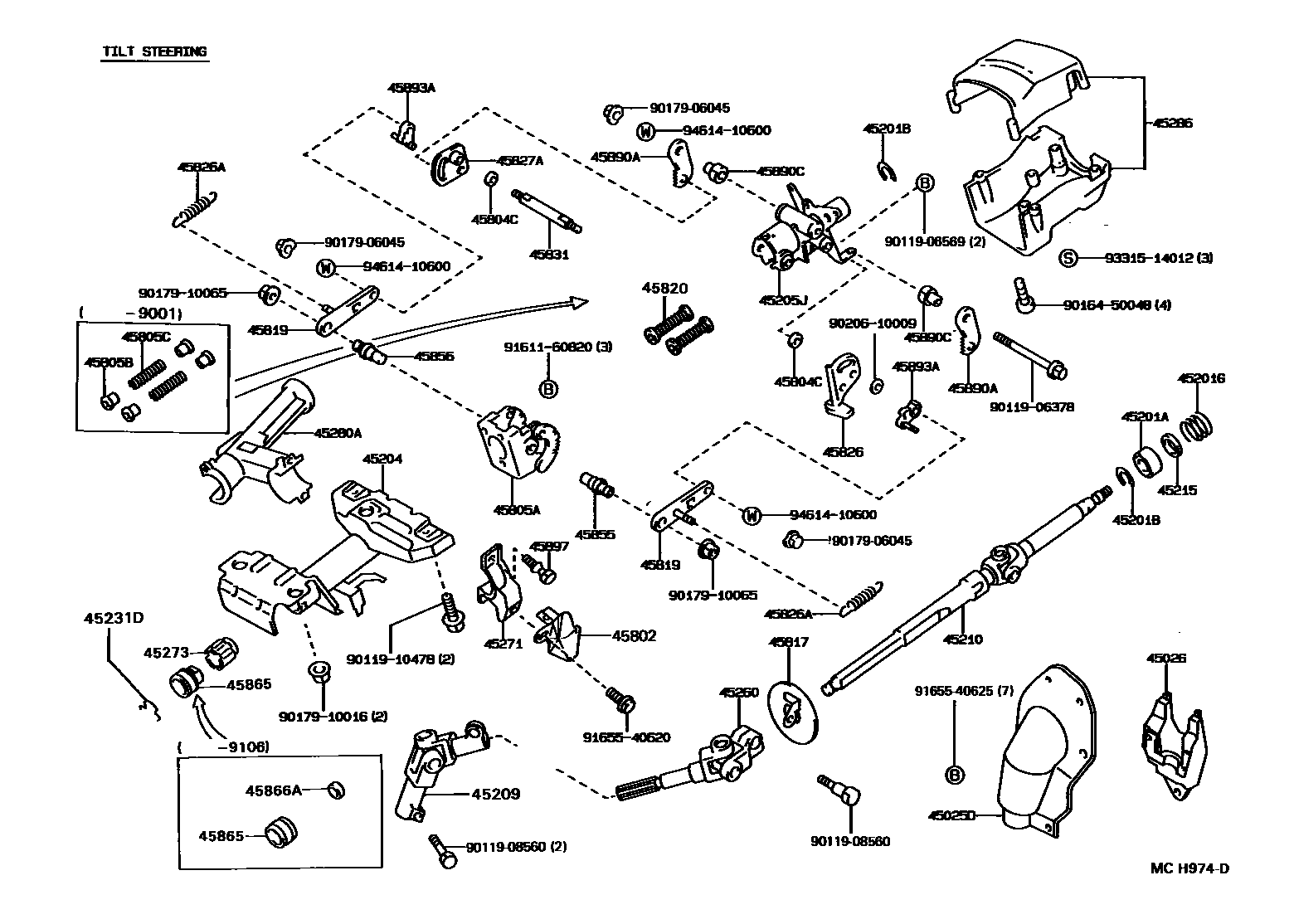

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12190iAE9#198708-199206

main45025-12200iAE9#..DX,STD198708-199206

W(POWER STEERING)

sub45025-12201

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12030iAE9#..DX,STD198708-199206

main45026-12040iAE92..LE198708-199206

W(POWER STEERING)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iAE9#198708-198809

sub90363-18005

main90363-18005iAE9#..DX,LE,SR5198809-199206

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE92198708-199206

T=1.20

main90520-17196iAE92..4FC..USA199202-199206

T=1.35-1.45,DX PACAGE

main90520-17196iAE9#..DX,LE,STD198708-199206

T=1.35-1.45

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAE9#..DX,LE,SR5198708-199206

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12090iAE9#198708-198908

sub45204-12091

main45204-12091iAE9#..DX,LE,SR5198908-199006

sub45204-12092

sub45273-22020

main45204-12092iAE9#..DX,LE,SR5199006-199206

sub45204-12093

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12260iAE9#198708-198809

sub45205-12261

main45205-12261iAE9#..DX,LE,SR5198809-199206

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12050iAE95..SR5198708-199206

W(POWER STEERING)

main45209-12050iAE92..3FC..DX199009-199106

W(TILT STEERING & POWER STEERING)

main45209-12050iAE92..LE199009-199206

main45209-32010iAE9#198708-199206

sub45209-10020

45210SHAFT ASSY, STEERING MAIN

main45210-12370iAE9#..(DX,LE)..CND198708-198908

W(POWER STEERING)

main45210-12380iAE9#..DX,STD198708-199206

main45210-12390iAE92..5F..(DX,STD)198708-199206

W(POWER STEERING)

main45210-12390iAE92..4FC..USA199202-199206

DX PACKAGE

main45210-12400iAE9#..5F..(DX,LE)..USA198708-199206

W(TILT STEERING)

sub45210-12560

main45210-12400iAE9#..5F..(DX,LE)..USA198908-199206

W(TILT STEERING & POWER STEERING)

sub45210-12560

main45210-12400iAE95..SR5198802-199008

sub45210-12560

main45210-12410iAE9#..(DX,LE)..CND198708-198908

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAE9#..DX,LE,SR5198708-199206

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iAE9#..DX,LE198708-199006

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12220iAE95..SR5;AE92..5F..CND;AE95..DX..CND;AE95..4FC..USA;AE92..5F..LE..USA;AE92..ATM..(DX,LE)198708-199206

W(TILT STEERING & POWER STEERING)

main45260-12220iAE95..SR5198802-198908

W(POWER STEERING)

main45260-12240iAE95..SR5198802-198908

main45260-12240iAE9#..DX,LE198708-199206

W(TILT STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAE92..DX,STD198708-199206

main45271-12050iAE92..4FC..USA199202-199206

DX PACKAGE

main45271-12060iAE9#..DX..CND198708-199206

W(TILT STEERING)

main45271-12060iAE95..SR5..CND198802-199008

main45271-12070iAE9#..DX,LE,STD198708-199012

main45271-12080iAE9#..(LE,SR5)..USA198708-199206

W(TILT STEERING)

main45271-12080iAE95..SR5..USA198802-199008

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE92..DX,STD198708-199206

main45273-16010iAE92..4FC..USA199202-199206

DX PACKAGE

main45273-22020iAE9#..5F..(DX,LE)..USA199006-199206

W(TILT STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12110iAE9#..DX,LE198708-199206

main45280-12130iAE9#..5F..(DX,LE)..CND198708-199206

W(TILT STEERING)

main45280-12130iAE95..SR5198802-199008

main45280-12140iAE9#..ATM..(DX,STD)198908-199206

main45280-12140iAE92..4FC..USA199202-199206

DX PACKAGE

main45280-12150iAE92..4FC198908-199206

W(TILT STEERING)

45286COVER, STEERING COLUMN

main45286-12941-02iAE9#..SED..CND198708-199206

MAROON,TRIM3#

sub45286-12941

main45286-12941-03iAE95..DX;AE92..SED;AE92..WG..USA198809-198901

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub45286-12941

main45286-12941-03iAE92..WG..CND198708-199206

SHADOW GRAY,TRIM1#

sub45286-12941

main45286-12941-04iAE9#..DX,LE198708-199206

DARK BLUE,TRIM8#

sub45286-12941

main45286-12941-05iAE95..DX;AE92..SED;AE92..WG..USA198708-198908

BEIGE,TRIM4#

sub45286-12941

main45286-12941-06iAE9#..DX..CND198908-199206

BROWN,TRIM4#

sub45286-12941

main45286-12943-02iAE92..LE..CND199008-199206

MAROON,TRIM3#

sub45286-12943

main45286-12943-02iAE9#..SED198708-199206

W(TILT STEERING),MAROON,TRIM3#

sub45286-12943

main45286-12943-03iAE9#..DX..CND198802-199206

SHADOW GRAY,TRIM1#

sub45286-12943

main45286-12943-03iAE92..WG..CND198809-198901

W(TILT STEERING),SHADOW GRAY,SHADOW GRAY,TRIM1#

sub45286-12943

main45286-12943-03iAE95..SR5..CND198708-199206

W(TILT STEERING),SHADOW GRAY,TRIM1#

sub45286-12943

main45286-12943-04iAE9#..DX..CND198708-199206

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-12943

main45286-12943-04iAE9#..DX..CND198802-199206

DARK BLUE,TRIM8#

sub45286-12943

main45286-12943-05iAE95..SR5198802-198908

BEIGE,TRIM4#

sub45286-12943

main45286-12943-05iAE9#..DX,LE198708-198908

W(TILT STEERING),BEIGE,TRIM4#

sub45286-12943

main45286-12943-06iAE95..SR5..CND198908-199206

BROWN,TRIM4#

sub45286-12943

main45286-12943-06iAE95..SR5..CND198908-199206

W(TILT STEERING),BROWN,TRIM4#

sub45286-12943

main45286-12944-03iAE95..DX..USA198908-199206

SHADOW GRAY,TRIM1#

sub45286-12944

main45286-12944-03iAE92..4FC..USA199202-199206

DX PACKAGE,SHADOW GRAY,TRIM1#

sub45286-12944

main45286-12944-04iAE9#..(DX,LE,STD)..USA198908-198909

BLUE,TRIM8#

sub45286-12944

main45286-12944-06iAE92..(DX,STD)..USA198908-199206

BROWN,TRIM4#

sub45286-12944

main45286-12944-06iAE92..4FC..USA199202-199206

DX PACKAGE,BROWN,TRIM4#

sub45286-12944

main45286-12944-D0iAE9#..SED..USA198908-199206

MAROON,TRIM3#

sub45286-12944

main45286-12944-D0iAE92..4FC..USA199202-199206

DX PACKAGE,MAROON,TRIM3#

sub45286-12944

main45286-12944-J0iAE92..4FC..USA199202-199206

DX PACKAGE,DARK BLUE,TRIM8#

sub45286-12944

main45286-12944-J0iAE9#..(DX,LE,STD)..USA198909-199206

DARK BLUE,TRIM8#

sub45286-12944

main45286-12945-03iAE95..SR5..USA198908-199008

W(TILT STEERING),SHADPW GRAY,SHADOW GRAY,TRIM1#

sub45286-12945

main45286-12945-03iAE92..DX..USA198908-199206

W(TILT STEERING),SHADOW GRAY,TRIM1#

sub45286-12945

main45286-12945-03iAE9#..DX..USA199008-199106

W(TILT STEERING),SHADOW GRAY,SHADOW GRAY,TRIM1#

sub45286-12945

main45286-12945-03iAE92..DX..USA199106-199206

SHADOW GRAY,TRIM1#

sub45286-12945

main45286-12945-04iAE95..SR5..USA198908-198909

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-12945

main45286-12945-04iAE95..SR5..USA198908-198909

DARK BLUE,TRIM8#

sub45286-12945

main45286-12945-06iAE9#..DX..USA198908-199106

W(TILT STEERING),BROWN,BROWN,TRIM4#

sub45286-12945

main45286-12945-06iAE95..SR5..USA198908-199206

W(TILT STEERING),BROWN,TRIM4#

sub45286-12945

main45286-12945-06iAE92..LE..USA199106-199206

BROWN,TRIM4#

sub45286-12945

main45286-12945-D0iAE92..SED..DX..USA199106-199206

MAROON,TRIM3#

sub45286-12945

main45286-12945-D0iAE92..SED..DX..USA198908-199206

W(TILT STEERING),MAROON,TRIM3#

sub45286-12945

main45286-12945-D0iAE92..LE..USA199008-199106

W(TILT STEERING),MAROON,MAROON,TRIM3#

sub45286-12945

main45286-12945-J0iAE92..DX..USA198909-199206

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-12945

main45286-12945-J0iAE92..DX..USA198909-199206

W(TILT STEERING),DARK BLUE,DARK BLUE,TRIM8#

sub45286-12945

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45802-12020iAE9#..USA198708-198908

main45802-12060iAE9#..(DX,LE,SR5)..USA198908-199206

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283iAE9#..DX,LE,SR5198708-199206

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iAE9#..DX,LE,SR5198708-199206

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031iAE9#198708-199001

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072iAE9#198708-199001

sub45820-12010

45817STOPPER, STEERING SHAFT THRUST

main45817-12030iAE9#..(DX,LE,SR5)..USA198708-199206

45819RETAINER, TILT LEVER

main45819-12010iAE9#..DX,LE198708-199106

sub45819-12020

main45819-12020iAE92..DX,LE199106-199206

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010iAE9#..DX,LE,SR5199001-199206

45826LEVER, STEERING TILT

main45826-12020iAE9#198708-198905

main45826-12021iAE9#..DX,LE,SR5198905-199206

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029iAE9#..DX,LE,SR5198708-199206

45827ALEVER, STEERING TILT SUB

main45827-12010iAE9#198708-198905

main45827-12011iAE9#198905-199106

main45827-12020iAE92..DX,LE199106-199206

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAE9#..DX,LE,SR5198708-199206

45855BOLT, TILT STEERING, NO.1

main45855-12010iAE9#198708-199106

OD=9.989-9.998

main45855-12020iAE9#198708-199106

OD=9.998-10.007

main45855-12030iAE92..DX,LE199106-199206

OD=9.989-9.998

main45855-12040iAE92..DX,LE199106-199206

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12010iAE9#198708-199106

OD=9.989-9.998

main45856-12020iAE9#198708-199106

OD=9.998-10.007

main45856-12030iAE92..DX,LE199106-199206

OD=9.989-9.998

main45856-12040iAE92..DX,LE199106-199206

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iAE9#..DX,LE198708-199106

sub45865-12060

main45865-12060iAE92..DX,LE199106-199206

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iAE9#..DX,LE198708-199106

45890APAWL ASSY, TILT STEERING

main45890-12020iAE9#198708-198905

LH

sub45890-12H00

main45890-12021iAE9#..DX,LE,SR5198905-199206

LH

main45890-12030iAE9#198708-198905

RH

sub45890-12H00

main45890-12031iAE9#..DX,LE,SR5198905-199206

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAE9#..DX,LE,SR5198708-199206

MARK 0

main90389-07005iAE9#..DX,LE,SR5198708-199206

MARK 2

main90389-07006iAE9#..DX,LE,SR5198708-199206

MARK 3

main90389-07007iAE9#..DX,LE,SR5198708-199206

MARK 4

main90389-07008iAE9#..DX,LE,SR5198708-199206

MARK A

main90389-07009iAE9#..DX,LE,SR5198708-199206

MARK 6

main90389-07010iAE9#..DX,LE,SR5198708-199206

MARK 7

main90389-07011iAE9#..DX,LE,SR5198708-199206

MARK 8

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iAE9#198708-198905

LH

main45893-12021iAE9#..DX,LE,SR5198905-199206

MARK A,LH

main45893-12070iAE9#198708-198905

RH

main45893-12071iAE9#..DX,LE,SR5198905-199206

MARK F OR 11,RH

main45893-12120iAE9#..DX,LE,SR5198905-199206

MARK B,LH

main45893-12130iAE9#..DX,LE,SR5198905-199206

MARK C,LH

main45893-12140iAE9#..DX,LE,SR5198905-199206

MARK D,LH

main45893-12150iAE9#..DX,LE,SR5198905-199206

MARK E,LH

main45893-12160iAE9#..DX,LE,SR5198905-199206

MARK G OR 12,RH

main45893-12170iAE9#..DX,LE,SR5198905-199206

MARK H OR 13,RH

main45893-12180iAE9#..DX,LE,SR5198905-199206

MARK I OR 14,RH

main45893-12190iAE9#..DX,LE,SR5198905-199206

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020iAE9#198708-199206

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910478

main90119-10478

9016450048

main90164-50048

9017906045

main90179-06045

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9161160820

main91611-60820

9165540620

main91655-40620

9165540625

main91655-40625

9331514012

main93315-14012

9461410600

main94614-10600
