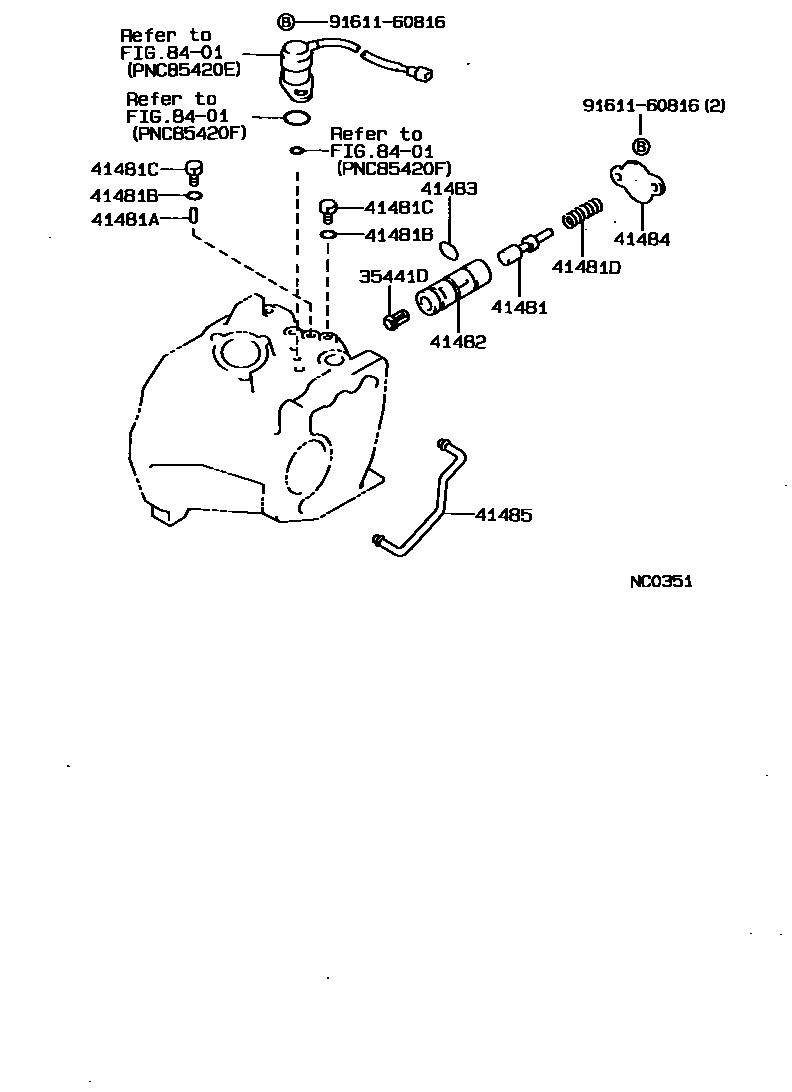

TRANSFER VALVE BODY & VALVE LEVER

35441DSTRAINER, CENTER DIFFERENTIAL LOCK CLUTCH CONTROL OIL

main35441-12010iAE95..4FC198802-199009

41481VALVE, DIFFERENTIAL LOCK CLUTCH CONTROL

main41481-12010iAE95..4FC198802-199009

41481APIN, STRAIGHT (FOR DIFFERENTIAL CONTROL VALVE)

main90250-04065iAE95..4FC198802-199009

41481BRING, O (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE)

main90301-06196iAE95..4FC198802-199009

41481CPLUG (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE)

main90341-08001iAE95..4FC198802-199009

41481DSPRING, COMPRESSION (FOR DIFFENTIAL VALVE)

main90501-08099iAE95..4FC198802-199009

41482SLEEVE, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE

main41482-12010iAE95..4FC198802-199009

41483RETAINER, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE SPRING

main41483-12010iAE95..4FC198802-199009

41484COVER, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE SLEEVE

main41484-12010iAE95..4FC198802-199009

41485TUBE, DIFFERENTIAL LOCK CLUTCH PRESSURE APPLY

main41485-12010iAE95..4FC198802-199009

8401

9161160816

main91611-60816

12 parts on this diagram · 1 diagram in section
