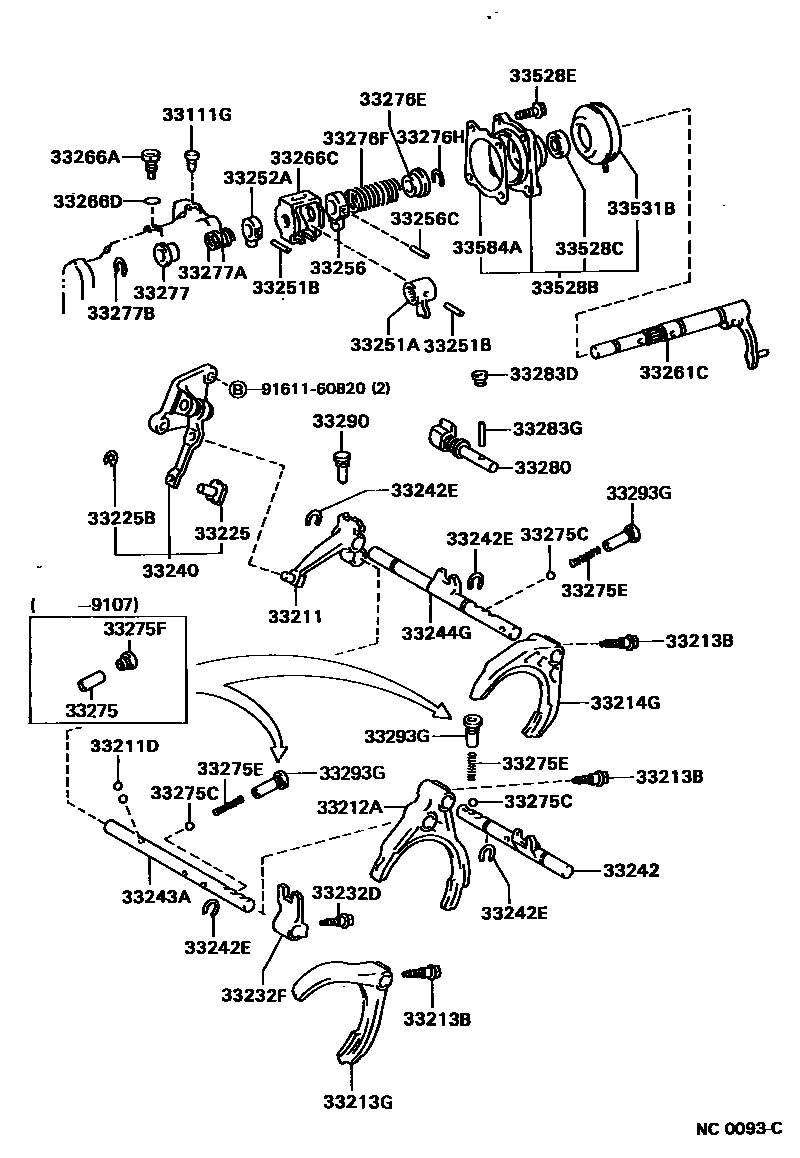

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
33213BBOLT(FOR SHIFT FORK SET)
NO.3 FORK
NO.1 & NO.2 FORK
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33232DBOLT (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=47.0
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
OD=44.1
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
sub33277-17010
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
33293GHOLDER, LOCK BALL
33528BCOVER, CONTROL SHAFT
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9161160820
main91611-60820
46 parts on this diagram · 2 diagrams in section
