TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

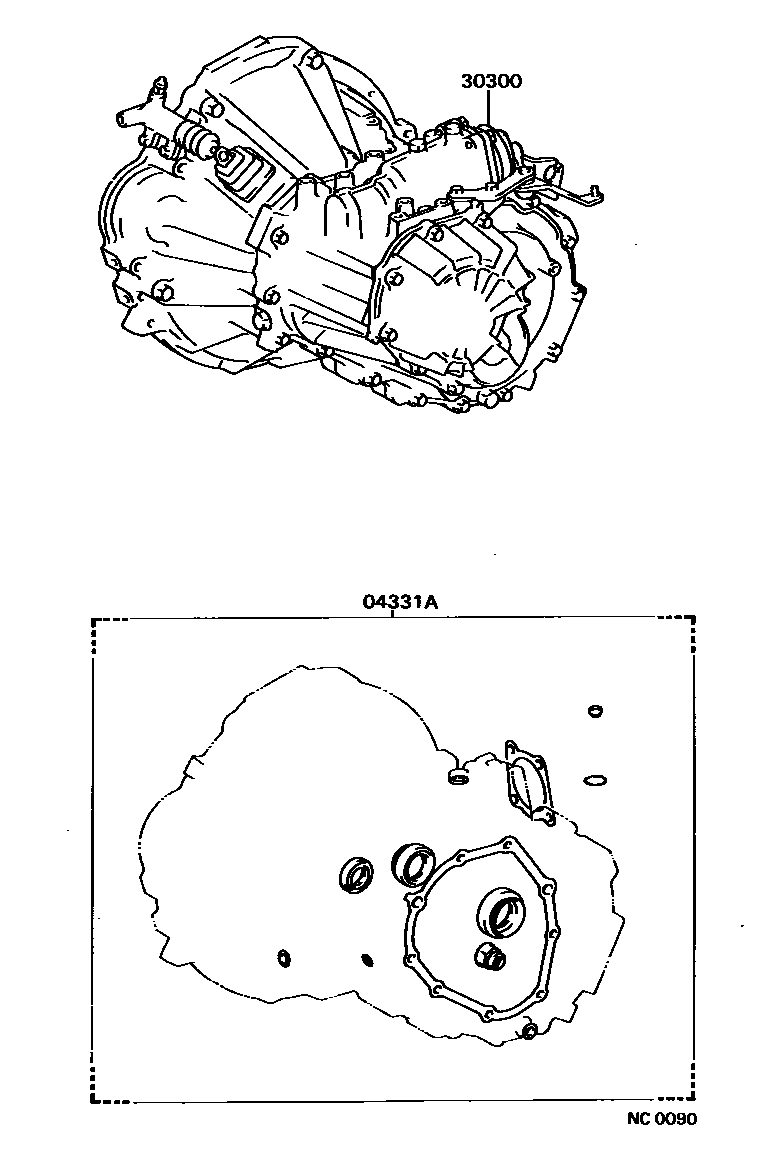

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12080i198708-199206
main04331-12100i198802-198804
main04331-12101i198804-199008
30300TRANSAXLE ASSY, MANUAL
main30300-12400i198708-199206
sub30300-12401
main30300-12600i198808-198908
sub30300-12601
sub90560-10019
sub91511-61016
main30300-12610i198802-198908
sub30300-12611
sub90560-10019
sub91511-61016
main30300-12691i198908-199008
main30300-12701i198908-199008

2 parts on this diagram · 2 diagrams in section
