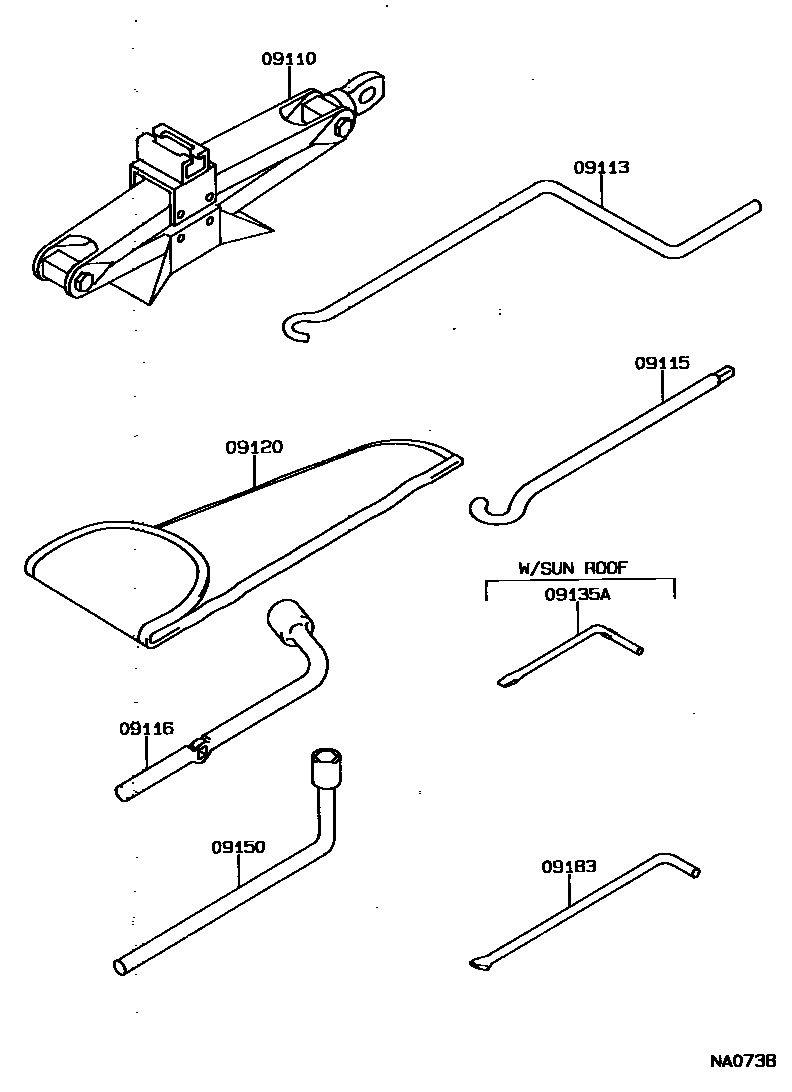

STANDARD TOOL

09110JACK ASSY

main09111-12090iAE92..WG198710-199206

main09111-12100iAE95;AE92..SED198708-199107

sub09111-20060

main09111-12130iAE92..SED199107-199206

sub09111-12100

09113HANDLE, JACK

main09113-12010iAE92..WG198710-199206

main09113-20030iAE92..SED198708-199206

sub09113-20050

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030iAE95198802-199009

09116LEVER, JACK HANDLE

main09116-16010iAE95198802-199009

09120BAG, TOOL

main09120-12030iAE9#198708-198810

sub09120-32010

main09120-32010iAE9#198810-199206

09135ABIT, SCREW DRIVER

main09135-00012iAE95;AE92..SED..(DX,LE)198708-199206

09150WRENCH, HUB NUT BOX

main09150-26010iAE92198708-199206

09183WRENCH, WHEEL CAP

main09183-00010iAE9#198708-199206

8 parts on this diagram · 1 diagram in section
