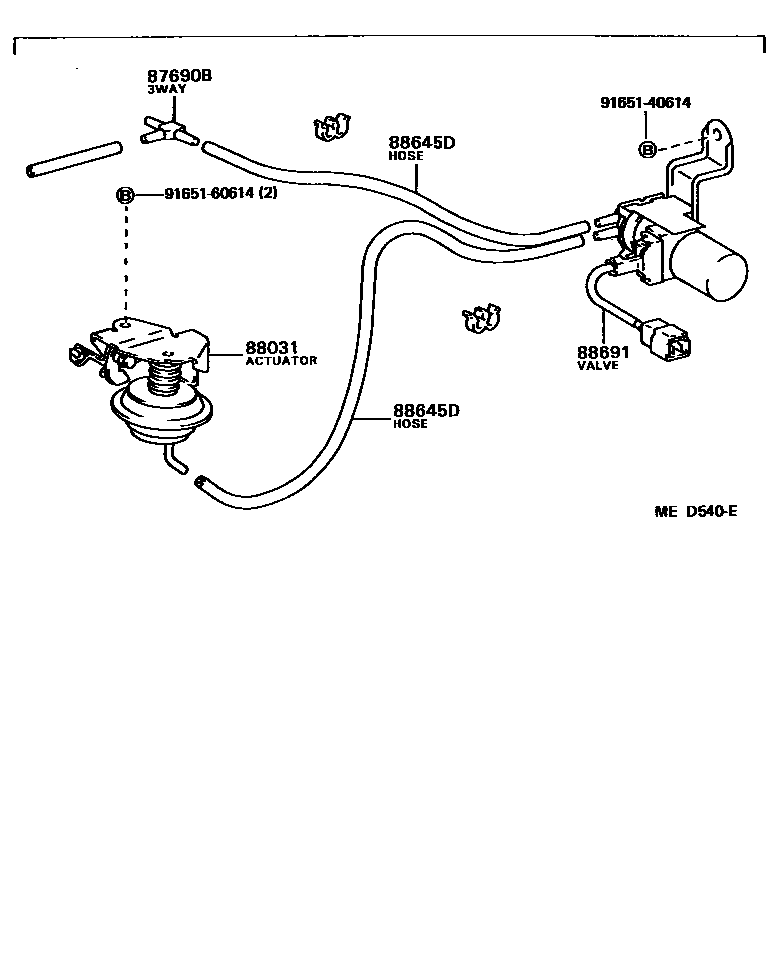

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

87690BWAY, 3

main90413-04005iAE82198308-198707

88031ACTUATOR SET, IDLE-UP

main88031-12140iAE82198308-198707

main88031-12150iCE80..DX198308-198508

COOLER IDLE UP

main88031-30070iCE80198308-198508

HEATER IDLE UP

sub88031-12150

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iCE80..DX198308-198508

*H,L=390,MARK=#0,COOLER IDLE UP

sub90999-92003

main95411-10060iAE82198308-198707

*H,L=390,MARK=#0

sub90999-92003

main95411-19930iAE82198308-198707

*H,L=300,MARK=#*

sub90999-92002

main95411-19930iAE82198308-198512

*H,L=260,MARK=#*

sub90999-92002

main95411-19930iAE82198512-198707

*H,L=280,MARK=#*

sub90999-92002

main95411-19995iCE80..DX198308-198508

*H,L=850,MARK=#*,COOLER IDLE UP

sub90999-92004

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-12280iAE82,CE80..DX,LE,LEL198308-198508

main88690-12281iAE82..USA198508-198707

9165140614

main91651-40614

9165160614

main91651-60614

6 parts on this diagram · 2 diagrams in section
