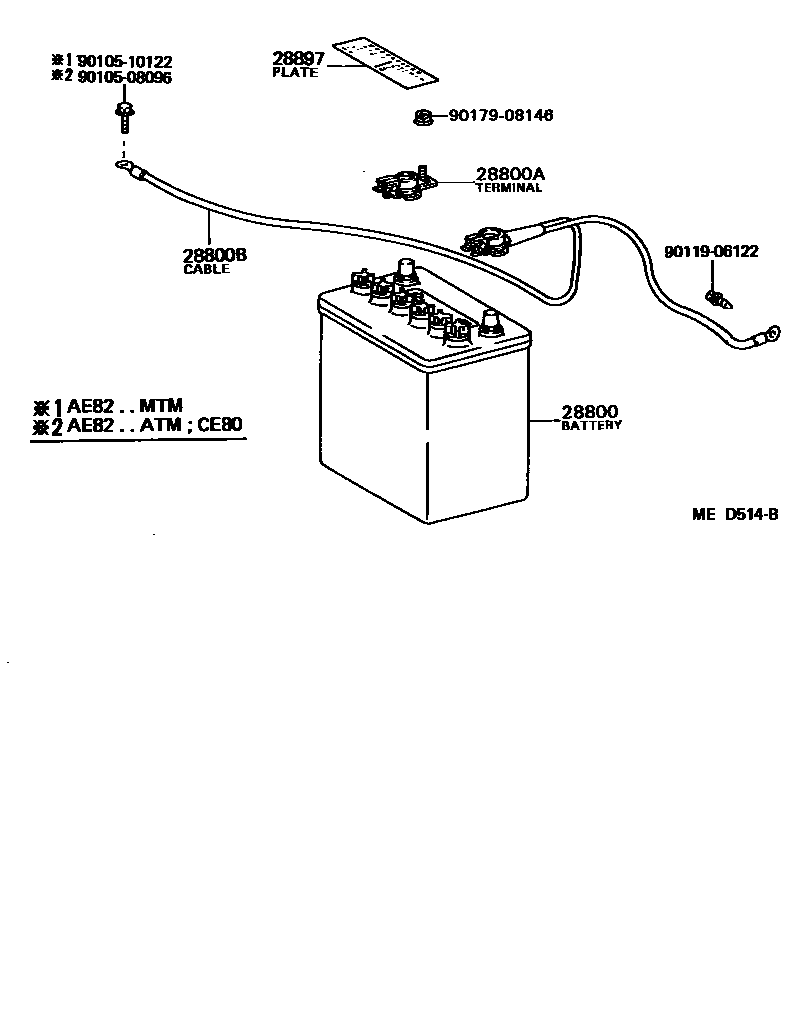

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i4ALC..AE82..USA198502-198707

55D23L,55D23L-MF

sub28800-42030

main28800-31031i4ALC..AE82..USA198308-198707

32C24L,32C24L(N40L)

sub28800-31021

main28800-31190i4ALC..AE82..USA198308-198502

50D20L-MF

main28800-31200i4ALC..AE82..USA198502-198707

50D20L,50D20L-MF

main28800-43070i4ALC..AE82..USA198308-198502

55D23L-MF

main28800-64010i4ALC..AE82..CND198308-198707

55D23L,55D23L

sub28800-42041

main28800-64070i1CLC..CE80198502-198508

95D31L,95D31L-MF(NX120-7L-MF)

sub28800-64180

main28800-64090i1CLC..CE80198308-198502

95D31L-MF(NX120-7L-MF)

28800ATERMINAL, BATTERY POSITIVE

main90982-05022i4ALC,1CLC..AE82,CE80198308-198411

sub90982-05030

main90982-05030i4ALC,1CLC..AE82,CE80198411-198707

28800BCABLE, BATTERY TO GROUND

main82123-12060i4ALC..AE82198308-198707

main82123-12070i1CLC..CE80198308-198508

28897PLATE, BATTERY CAUTION

main28897-26010i4ALC..AE82..USA198308-198707

BATTERY=32C24L(N40L)

main28897-38010i4ALC..AE82..CND198308-198707

main28898-26010i4ALC,1CLC..AE82,CE80..USA198308-198707

EXCL/BATTERY=32C24L(N40L)

9010508096

main90105-08096

9010510122

main90105-10122

9011906122

main90119-06122

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
