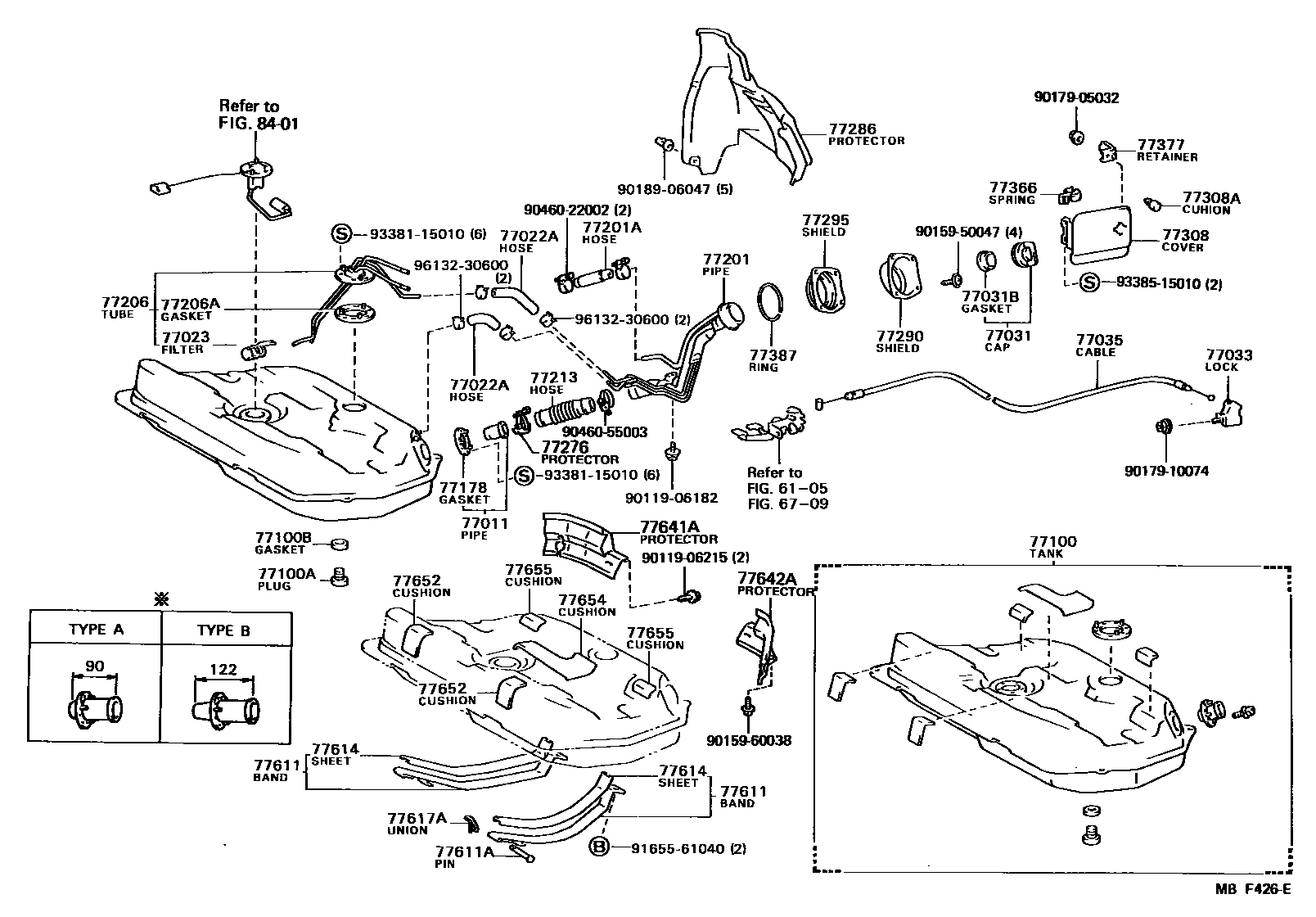

FUEL TANK & TUBE

0001 1 0002 1 0003 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12050iAE82198702-198707

TYPE B

sub77011-16050¥2,830

main77011-16030iAE82,CE80¥2,250198308-198702

sub77011-16040¥2,820

main77011-16040iAE82¥2,820198702-198707

TYPE A

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-16040iAE82¥790198605-198707

L=135

sub95333-06020¥480

main95332-06020iAE82,CE80¥350198311-198605

L=200(*H,L=140)

sub95333-06020¥480

main95332-06020iAE82,CE80¥350198308-198311

L=200(*H,L=130)

sub95333-06020¥480

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAE82¥920198308-198707

main77023-22040iCE80¥1,050198308-198508

77031CAP ASSY, FUEL TANK

main77310-16010iAE82¥2,820198308-198707

sub77310-16011¥2,790

main77310-32010iCE80¥2,820198308-198508

sub77310-32011¥1,940

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iAE82,CE80¥660198308-198707

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12040iAE82..LE,LEL¥1,450198503-198707

sub77037-38010¥1,520

main77037-32010iAE82..LE,LEL¥1,350198308-198503

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12060iAE82..LE,LEL¥1,980198308-198707

sub77035-14090¥1,690

77100TANK ASSY, FUEL

main77001-19315iCE80¥38,100198308-198508

main77001-19405iAE82¥41,800198308-198707

sub77001-19315¥38,100

sub77017-16021¥3,300

77100APLUG(FOR FUEL TANK)

main90341-20004iAE82,CE80¥360198308-198707

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE82,CE80¥220198308-198707

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iAE82,CE80¥810198308-198707

77201PIPE SUB-ASSY, FUEL TANK INLET

main77210-12020iAE82¥26,200198308-198601

sub77210-12100¥21,500

main77210-12030iCE80198308-198508

main77210-12100iAE82¥21,500198601-198707

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77259-16010iAE82,CE80¥1,810198308-198707

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-12201iCE80¥6,100198308-198508

main77017-16030iAE82¥6,000198308-198702

sub77017-16100¥5,900

main77017-16100iAE82¥5,900198702-198707

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77178-10010iAE82,CE80¥640198308-198707

77213HOSE, FUEL TANK SUB INLET

main77213-16031iAE82,CE80¥3,820198308-198707

77276PROTECTOR, FUEL HOSE

main77606-12110iAE82,CE80¥2,710198308-198707

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-12050iAE82,CE80¥1,870198308-198707

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12020iAE82,CE80¥1,430198308-198707

77295SHIELD, FUEL FILLER PIPE

main77293-16010iAE82,CE80¥1,300198308-198707

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-12060iAE82,CE80..DX,STD¥1,470198308-198508

main77350-12070iAE82..LE,LEL¥1,840198308-198707

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08010iAE82,CE80¥170198308-198707

sub90541-08014¥190

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAE82,CE80¥260198308-198707

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12030iAE82..LE,LEL¥930198408-198707

main77377-24010iAE82..LE¥930198308-198408

77387RING, FUEL INLET BOX

main77391-14020iAE82,CE80¥160198308-198707

77611BAND, FUEL TANK

main77601-12080iAE82,CE80¥2,860198308-198707

RH

main77602-16030iAE82,CE80¥2,640198308-198707

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAE82,CE80¥250198308-198707

77614SEAT, FUEL TANK BAND

main77681-16020iAE82,CE80¥880198308-198707

sub77681-32040¥2,090

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAE82,CE80¥110198308-198707

77641APROTECTOR, FUEL TANK, NO.1

main77641-16011iAE82,CE80¥2,660198308-198707

77642APROTECTOR, FUEL TANK, NO.2

main77642-16010iAE82,CE80¥1,600198308-198707

77652CUSHION, FUEL TANK, NO.1

main77652-16050iAE82,CE80¥300198308-198707

sub77652-16060¥280

77654CUSHION, FUEL TANK, NO.2

main77653-16020iAE82,CE80¥650198308-198707

77655CUSHION, FUEL TANK, NO.3

main77654-16010iAE82,CE80¥650198308-198707

8401

9011906182

main90119-06182¥90

9011906215

main90119-06215¥120

9015950047

main90159-50047¥130

9015960038

main90159-60038¥190

9017905032

main90179-05032¥120

9017910074

main90179-10074¥110

9018906047

main90189-06047¥70

9046022002

main90460-22002¥530

9046055003

main90460-55003¥270

9165561040

main91655-61040¥210

9338115010

main93381-15010¥60

9338515010

main93385-15010¥70

9613230600

main96132-30600¥200

50 parts on this diagram · 3 diagrams in section
