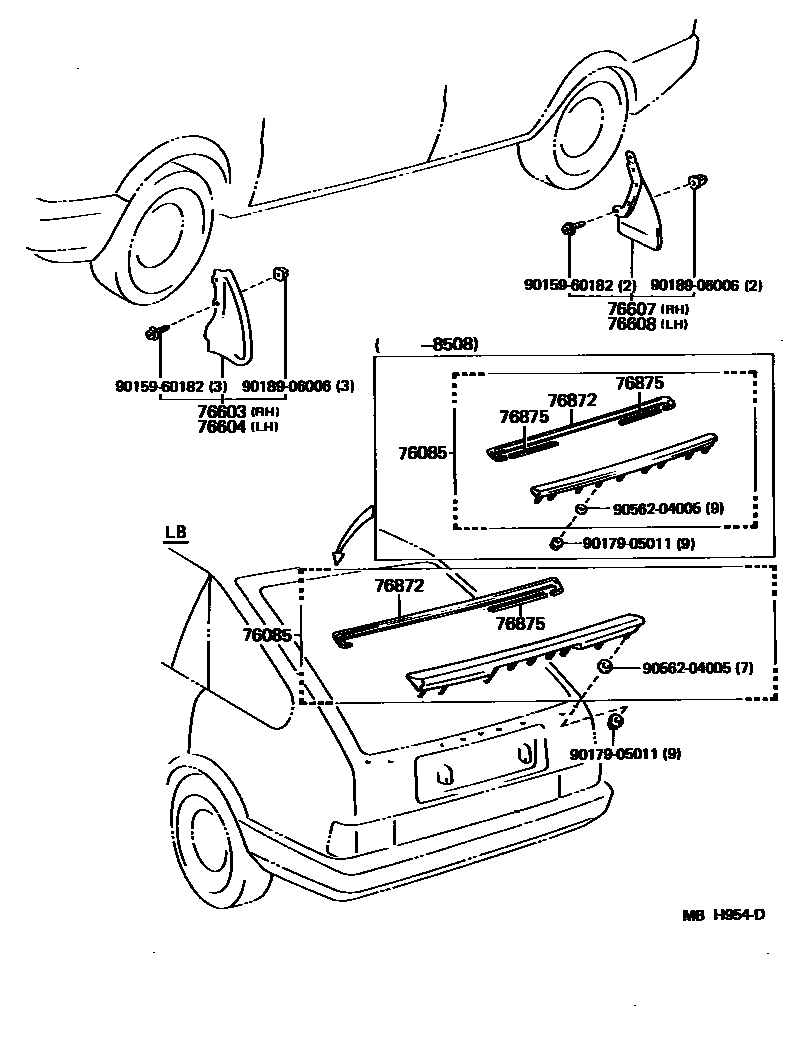

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-12020iAE82,CE80..LB198308-198508

main76085-12080iAE82..LB198508-198707

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19085iAE82,CE80..DX,LE,LEL198308-198707

sub76621-19086

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19085iAE82,CE80..DX,LE,LEL198308-198707

sub76622-19086

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19045iAE82,CE80..DX,LE,LEL198308-198707

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19055iAE82,CE80..DX,LE,LEL198308-198707

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12900iAE82,CE80..LB198308-198508

main76872-12901iAE82..LB198508-198707

76875PROTECTOR, REAR SPOILER, NO.4

main76875-12010iAE82,CE80..LB198308-198508

main76875-12050iAE82..LB198508-198707

9015960182

main90159-60182

9017905011

main90179-05011

9018906006

main90189-06006

9056204005

main90562-04005

11 parts on this diagram · 1 diagram in section
