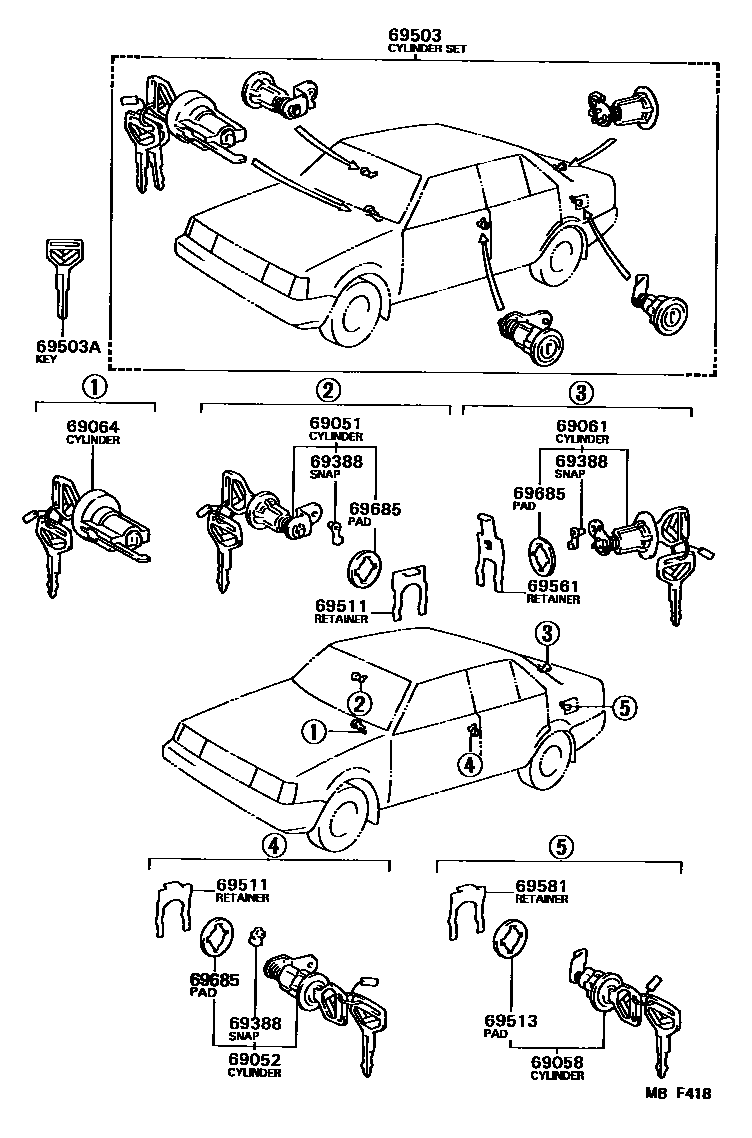

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12180iAE82,CE80¥3,580198308-198707

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12180iAE82,CE80¥3,580198308-198707

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12110iAE82,CE80..DX,STD¥3,710198308-198508

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-12240iAE82,CE80..SED..(DX,STD)198308-198508

sub69055-12230

main69055-12250iAE82..SED..(LE,LEL)198308-198707

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-16061iAE82,CE80¥6,700198308-198707

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iAE82,CE80¥280198308-198707

RH DOOR,LUGGAGE

main69759-20090iAE82,CE80¥280198308-198707

LH DOOR

69503CYLINDER SET, LOCK

main69005-12340iAE82,CE80..SED..(DX,STD)¥20,900198308-198508

main69005-12380iAE82,CE80..LB..DX¥20,000198308-198508

main69005-12390iAE82..LB..LE¥21,000198308-198707

main69005-12570iAE82..SED¥17,800198308-198707

69503AKEY, BLANK

main90999-00085iAE82,CE80¥1,550198308-198707

MASTER KEY,MASTER KEY

main90999-00094iAE82,CE80¥1,550198308-198707

SUB KEY,SUB KEY

main90999-00106iAE82,CE80¥2,060198308-198707

MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR

sub90999-00212¥2,060

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iAE82,CE80¥160198308-198707

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iAE82,CE80..DX,STD¥120198308-198508

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-12120iAE82,CE80..LB¥310198308-198707

main69561-12150iAE82,CE80..SED¥310198308-198707

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iAE82,CE80..DX,STD¥160198308-198508

69685PAD, LOCK CYLINDER

main69513-32010iAE82,CE80¥120198308-198707

FR DOOR

main69563-12010iAE82,CE80..LB..DX¥390198308-198508

OD=40,BACK DOOR

main69563-32010iAE82¥310198308-198707

LUGGAGE,BACK DOOR

main69563-32010iAE82,CE80..LB..DX¥310198308-198508

OD=30,BACK DOOR

13 parts on this diagram · 2 diagrams in section
