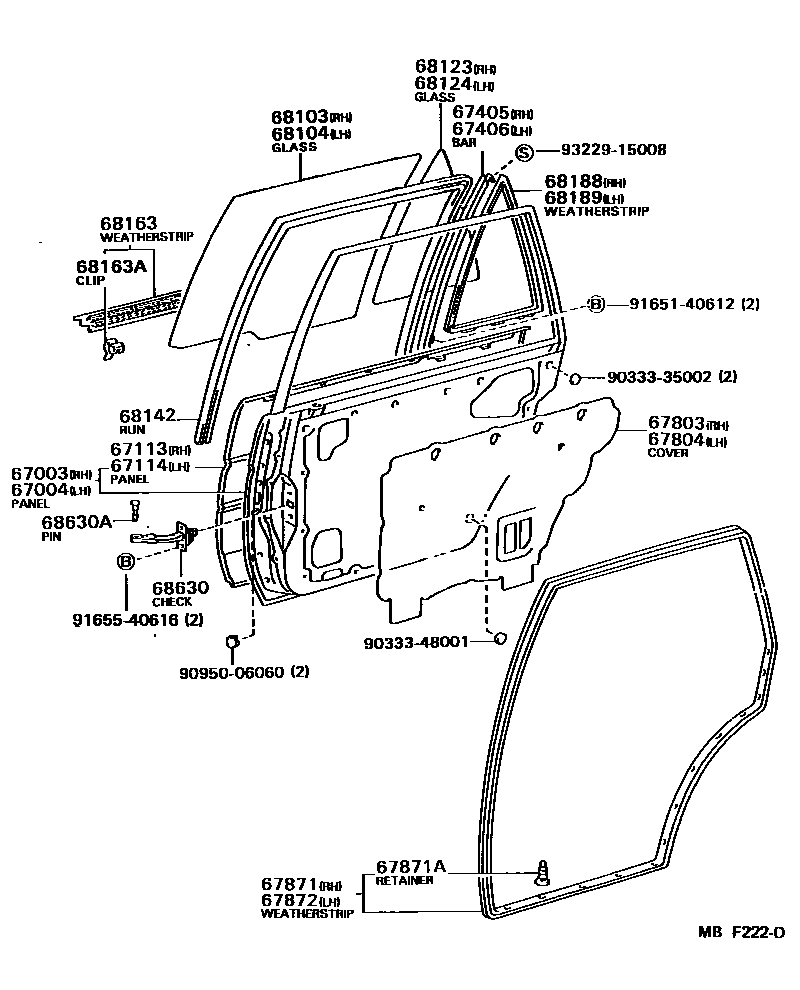

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12300iAE82,CE80..SED¥52,000198308-198707

main67003-12330iAE82,CE80..LB198308-198707

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12300iAE82,CE80..SED¥52,000198308-198707

main67004-12330iAE82,CE80..LB¥52,000198308-198707

67113PANEL, REAR DOOR, OUTER RH

main67113-12110iAE82,CE80¥19,100198308-198707

67114PANEL, REAR DOOR, OUTER LH

main67114-12110iAE82,CE80¥19,100198308-198707

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12100iAE82..LE¥3,150198308-198310

sub67407-12110¥3,810

main67407-12110iAE82,CE80..DX,STD¥3,810198308-198707

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12100iAE82..LE¥3,150198308-198310

sub67408-12110¥3,810

main67408-12110iAE82,CE80..DX,STD¥3,810198308-198707

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-12170iAE82,CE80¥660198308-198707

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67842-12050iAE82,CE80¥640198308-198707

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12170iAE82,CE80..SED¥7,100198308-198707

main67871-12210iAE82,CE80..LB¥7,100198308-198707

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040iAE82,CE80¥110198308-198707

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12170iAE82,CE80..SED¥7,100198308-198707

main67872-12210iAE82,CE80..LB¥7,100198308-198707

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12120iCE80¥9,300198308-198408

*TEM,T=3.5

sub68113-12130¥10,700

main68113-12130iAE82,CE80..DX,LE,LEL¥10,700198308-198707

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12120iCE80¥9,300198308-198408

*TEM,T=3.5

sub68114-12130¥10,700

main68114-12130iAE82,CE80..DX,LE,LEL¥10,700198308-198707

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-12170iCE80¥3,410198308-198408

*TEM,T=3.5

sub68123-12180¥3,810

main68123-12180iAE82,CE80..SED..(DX,LE,LEL)¥3,810198308-198707

*TT,T=3.5

main68123-12240iAE82,CE80..LB¥3,730198308-198707

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-12170iCE80¥3,410198308-198408

*TEM,T=3.5

sub68124-12180¥3,810

main68124-12180iAE82,CE80..SED..(DX,LE,LEL)¥3,810198308-198707

*TT,T=3.5

main68124-12240iAE82,CE80..LB¥3,730198308-198707

*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-12050iAE82,CE80¥2,610198308-198707

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-12050iAE82,CE80..DX,STD¥1,970198308-198707

RH

main68230-12030iAE82,CE80..DX,STD¥1,970198308-198707

LH

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080iAE82,CE80..DX,STD¥130198308-198707

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12090iAE82,CE80..SED..(DX,STD)¥1,970198308-198707

main68188-12100iAE82..SED..(LE,LEL)¥1,970198308-198707

main68188-12130iAE82,CE80..LB..DX¥1,970198308-198707

main68188-12140iAE82..LB..LE¥1,970198308-198707

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12090iAE82,CE80..SED..(DX,STD)¥1,970198308-198707

LH

main68189-12100iAE82..SED..(LE,LEL)¥1,970198308-198707

main68189-12130iAE82,CE80..LB..DX¥1,970198308-198707

main68189-12140iAE82..LB..LE¥1,970198308-198707

68630CHECK ASSY, REAR DOOR

main68630-12020iAE82,CE80¥3,670198308-198707

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iAE82,CE80¥280198311-198507

sub68617-90A00¥280

main68617-22010iAE82,CE80¥300198308-198311

sub68617-12010¥280

main68617-90A00iAE82,CE80¥280198507-198707

sub68617-90A01¥300

9033335002

main90333-35002¥80

9033348001

main90333-48001¥60

9095006060

main90950-06060¥110

9165140612

main91651-40612¥70

9165540616

main91655-40616¥120

9322915008

main93229-15008¥80

28 parts on this diagram · 3 diagrams in section
