FRONT DOOR WINDOW REGULATOR & HINGE

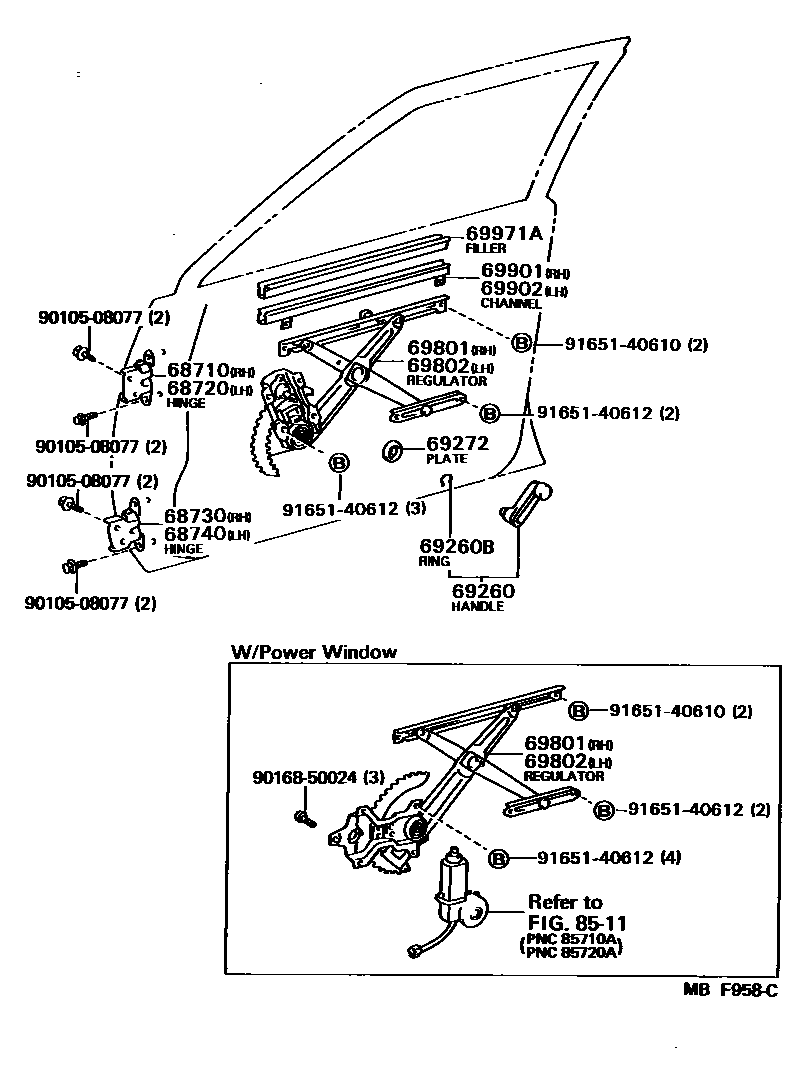

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-12080i198308-198707
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-12080i198308-198707
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-32010i198308-198707
sub68730-30090
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-32010i198308-198707
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-10040-10i198505-198707
BROWN,SEPIA BROWN,TRIM4#
sub69260-10040
sub69260-16010
main69260-10040-33i198505-198707
GRAY,SHADOW GRAY,TRIM1#
sub69260-10040
sub69260-16010
main69260-10040-44i198505-198707
BLUE,BLUE,TRIM8#
sub69260-10040
sub69260-16010
main69260-12060-03i198308-198401
GRAY,GRAY,TRIM1#
sub69260-14020
main69260-12060-04i198308-198401
BLUE,BLUE,TRIM8#
sub69260-14020
main69260-12060-05i198308-198401
BEIGE,BEIGE,TRIM3#
sub69260-14020
main69260-14020-04i198401-198505
BLUE,BLUE,TRIM8#
sub69260-14020
sub69260-22030
main69260-14020-12i198401-198408
MAROON,RED/MAROON,TRIM3#
sub69260-14020
sub69260-22030
main69260-14020-23i198308-198401
GRAY,GRAY,TRIM1#
sub69260-14020
sub69260-22030
main69260-14020-25i198308-198401
BEIGE,BEIGE,TRIM3#
sub69260-14020
sub69260-22030
main69260-14020-33i198401-198505
GRAY,GRAY,TRIM1#
sub69260-14020
sub69260-22030
main69260-14020-34i198308-198401
BLUE,BLUE,TRIM8#
sub69260-14020
sub69260-22030
main69260-14020-36i198408-198505
BROWN,BROWN,TRIM4#
sub69260-14020
sub69260-22030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i198308-198707
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-16010i198308-198707
sub69268-20020
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-12040i198508-198602
W/*PW
sub69801-12080
main69801-12080i198602-198707
W/*PW
main69810-12180i198508-198602
W/O *PW
sub69810-12250
main69810-12180i198308-198508
sub69810-12250
main69810-12250i198602-198707
W/O *PW
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-12040i198508-198602
W/*PW
sub69802-12080
main69802-12080i198602-198707
W/*PW
main69820-12170i198508-198602
W/O *PW
sub69820-12250
main69820-12170i198308-198508
sub69820-12250
main69820-12250i198602-198707
W/O *PW
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-12130i198308-198406
main69901-12150i198406-198509
sub69901-12151
main69901-12151i198509-198707
sub69901-12152
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69902-12080i198308-198406
main69902-12090i198406-198509
sub69902-12091
main69902-12091i198509-198707
sub69902-12092
69971AFILLER, FRONT DOOR GLASS CHANNEL
main69971-12040i198406-198509
sub69971-12070
main69971-12060i198308-198406
sub68171-30040
main69971-12070i198509-198707
sub69971-60020
8511
9010508077
main90105-08077
9016850024
main90168-50024
9165140610
main91651-40610
9165140612
main91651-40612

17 parts on this diagram · 1 diagram in section
