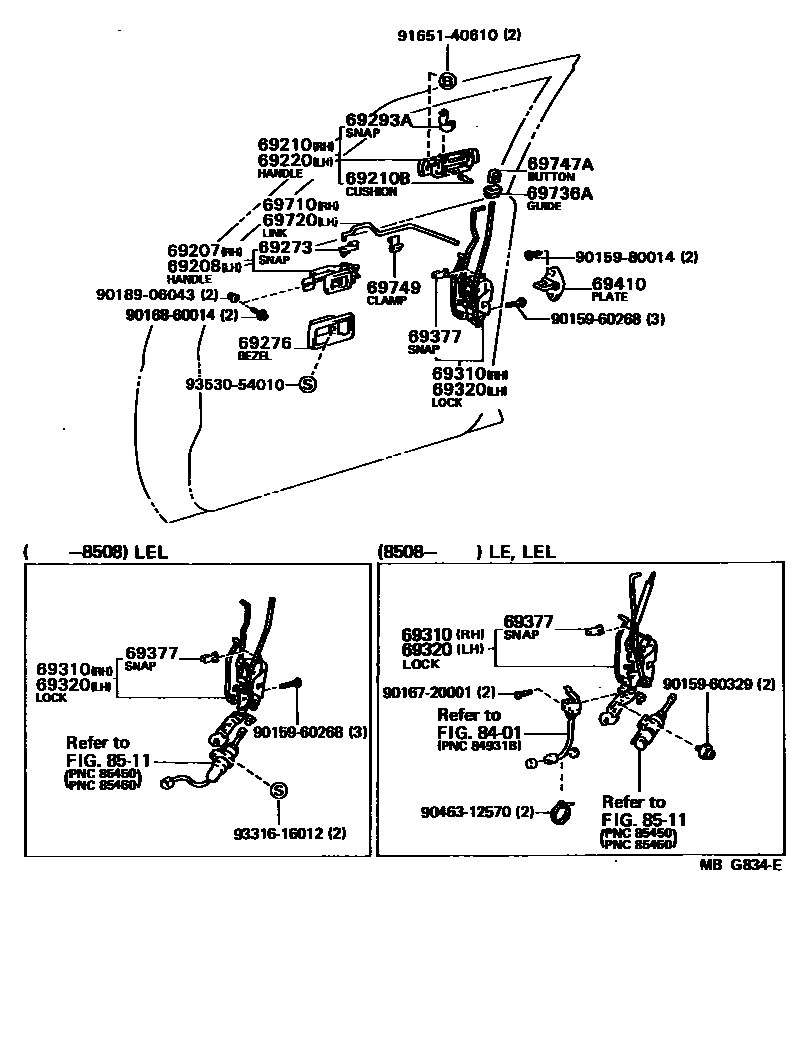

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-02iAE82,CE80..DX,LE198308-198408

MAROON,RED/MAROON,TRIM3#

sub69205-12070¥2,170

main69205-12070-03iAE82,CE80..DX,LE198308-198707

GRAY,GRAY,TRIM1#

sub69205-12070¥2,170

main69205-12070-04iAE82,CE80..DX,LE198308-198707

BLUE,BLUE,TRIM8#

sub69205-12070¥2,170

main69205-12070-13iCE80198308-198401

GRAY,GRAY,TRIM1#

sub69205-12070¥2,170

main69205-12070-14iCE80198308-198401

BLUE,BLUE,TRIM8#

sub69205-12070¥2,170

main69205-12070-15iCE80198308-198401

BEIGE,BEIGE,TRIM3#

sub69205-12070¥2,170

main69205-12070-16iAE82,CE80198408-198707

BROWN,SEPIA BROWN,TRIM4#

sub69205-12070¥2,170

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-02iAE82,CE80198308-198408

MAROON,RED/MAROON,TRIM3#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-03iAE82,CE80198308-198707

GRAY,GRAY,TRIM1#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-04iAE82,CE80..DX,LE198308-198707

BLUE,BLUE,TRIM8#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-13iCE80198308-198401

GRAY,GRAY,TRIM1#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-14iCE80198308-198401

BLUE,BLUE,TRIM8#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-15iCE80198308-198401

BEIGE,BEIGE,TRIM3#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-16iAE82,CE80198408-198707

BROWN,SEPIA BROWN,TRIM4#

sub69206-16040¥1,760

sub69206-12070¥2,170

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12080iAE82,CE80¥2,720198308-198505

main69240-12070iAE82,CE80¥2,520198505-198707

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iAE82,CE80¥310198308-198707

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12080iAE82,CE80¥2,720198308-198505

main69230-12070iAE82,CE80¥2,520198505-198707

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iAE82,CE80¥240198308-198707

RH

main69759-20070iAE82,CE80¥140198308-198707

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-04iAE82,CE80198308-198707

BLUE,BLUE,TRIM8#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-12iAE82,CE80198308-198408

MAROON,RED/MAROON,TRIM3#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-23iCE80198308-198401

GRAY,GRAY,TRIM1#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-24iCE80198308-198401

BLUE,BLUE,TRIM8#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-25iCE80198308-198401

BEIGE,BEIGE,TRIM3#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-26iAE82,CE80198408-198707

BROWN,BROWN,TRIM4#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-33iAE82,CE80..DX,LE198308-198707

GRAY,GRAY,TRIM1#

sub69277-32020¥640

sub69277-89104¥670

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE82¥160198508-198707

RH

main69293-12040iAE82¥160198508-198707

LH

main69293-12050iAE82,CE80¥200198308-198508

RH

main69293-12060iAE82,CE80¥200198308-198508

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12110iAE82..LEL198408-198505

main69310-12111iAE82..LEL198505-198508

sub69310-12130¥6,300

main69310-12120iAE82,CE80..DX,LE¥5,700198505-198707

W/O *EL

main69310-12130iAE82..LE,LEL¥6,300198508-198707

W/*EL

main69310-12150iAE82,CE80..DX,LE,STD¥7,300198308-198505

69320LOCK ASSY, FRONT DOOR, LH

main69320-12130iAE82..LEL¥6,800198408-198508

main69320-12131iAE82..LEL198505-198508

sub69320-12150¥6,300

main69320-12140iAE82,CE80..DX,LE¥5,700198505-198707

W/O *EL

main69320-12150iAE82..LE,LEL¥6,300198508-198707

W/*EL

main69320-12170iAE82,CE80..DX,LE,STD¥7,300198308-198508

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20040iAE82,CE80¥220198308-198707

LH

main69759-20050iAE82,CE80¥160198308-198707

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE82,CE80¥710198308-198707

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-12070iAE82,CE80¥680198308-198707

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-12080iAE82,CE80¥680198308-198707

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iAE82,CE80¥450198408-198707

main69736-22021iAE82,CE80..DX,LE¥500198308-198408

main69751-20031-01iCE80198308-198408

BLACK

sub69751-20031¥330

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-04iAE82,CE80198308-198505

BLUE,BLUE,TRIM8#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-12iAE82,CE80198308-198408

MAROON,RED/MAROON,TRIM3#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-16iAE82,CE80198408-198505

BROWN,BROWN,TRIM4#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-23iAE82,CE80198308-198505

GRAY,GRAY,TRIM1#

sub69741-32010¥340

sub69741-90K00¥360

main69741-90K00-01iAE82,CE80198505-198707

BLACK,BLACK

sub69741-90K00¥360

sub69741-89102¥340

sub69741-12040¥390

sub69741-89104¥410

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010iAE82,CE80¥180198308-198707

8401

8511

9015960268

main90159-60268¥130

9015960329

main90159-60329¥120

9015980014

main90159-80014¥120

9016720001

main90167-20001¥70

9016860014

main90168-60014¥120

9018906043

main90189-06043¥120

9046312570

main90463-12570¥200

9165140610

main91651-40610¥160

9331616012

main93316-16012¥120

9353054010

main93530-54010¥70

29 parts on this diagram · 1 diagram in section
