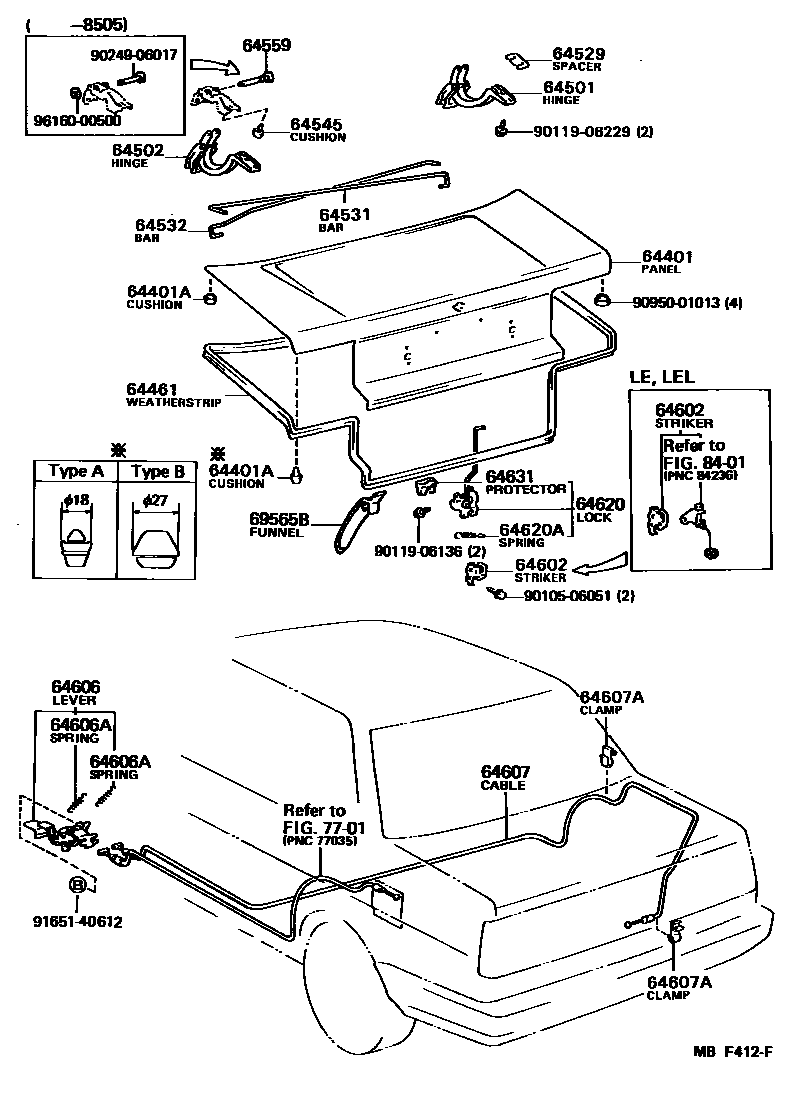

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12620iAE82,CE80..SED198308-198508

sub64401-1A050

sub90541-19001

main64401-12621iAE82..SED198508-198607

sub64401-12622

sub90950-01013

main64401-12622iAE82..SED198607-198707

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07003iAE82,CE80..SED198308-198707

FR

main90541-09041iAE82,CE80..SED198308-198508

RR,OD=18,TYPE A

main90541-19001iAE82,CE80..SED198308-198707

RR,OD=27,TYPE B

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12250iAE82,CE80..SED198308-198707

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12170iAE82,CE80..SED198308-198707

sub64510-12210

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12160iAE82,CE80..SED198308-198707

sub64520-12200

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAE82,CE80..SED198308-198707

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12160iAE82,CE80..SED198308-198707

main64531-12210iAE82..LEL198508-198707

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12150iAE82,CE80..SED198308-198707

main64532-12200iAE82..LEL198508-198707

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iAE82,CE80..SED198308-198707

64559PIN, LUGGAGE DOOR HINGE

main64559-12010iAE82,CE80..SED198505-198707

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iAE82..SED..(LE,LEL)198308-198707

sub64621-12060

sub84231-12030

main64621-12060iAE82,CE80..SED..(DX,STD)198308-198707

sub64621-12070

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12050iAE82..SED..(LE,LEL)198308-198707

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09034iAE82..SED..(LE,LEL)198308-198707

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12230iAE82..SED..(LE,LEL)198308-198707

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAE82..SED..(LE,LEL)198308-198707

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12070iAE82,CE80..SED..(DX,STD)198308-198508

main64610-12110iAE82..SED..(LE,LEL)198308-198707

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAE82,CE80..SED198308-198707

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAE82,CE80..SED198308-198707

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12010iAE82,CE80..SED198308-198707

7701

8401

9010506051

main90105-06051

9011906136

main90119-06136

9011906229

main90119-06229

9024906017

main90249-06017

9095001013

main90950-01013

9165140612

main91651-40612

9616000500

main96160-00500

28 parts on this diagram · 1 diagram in section
