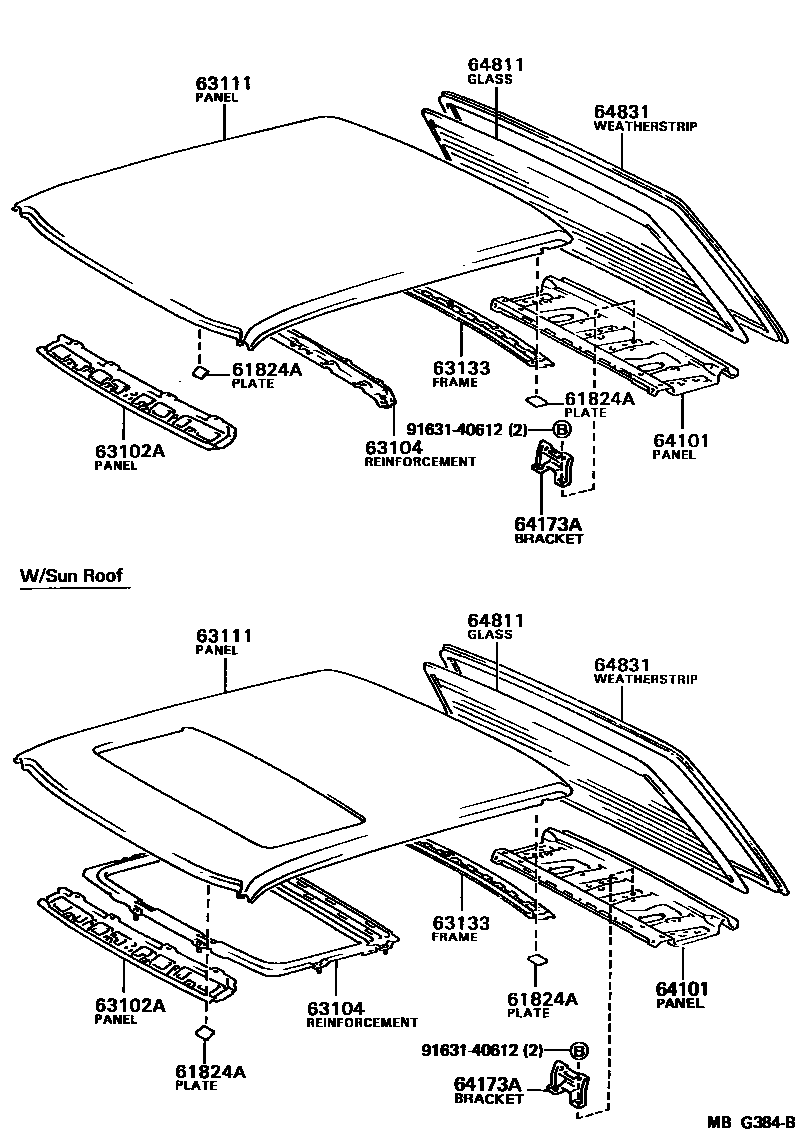

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

61824APLATE, NOISE CONTROL, NO.1

main61824-12010iAE82,CE80..LB198308-198707

sub62939-23010

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12020iAE82,CE80..SED198308-198707

main63102-12030iAE82,CE80..LB198308-198707

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-12110iAE82,CE80..SED198308-198707

W/O SUN ROOF

main63141-12120iAE82,CE80..LB198308-198707

W/O SUN ROOF

main63142-12020iAE82,CE80..DX,LE,LEL198308-198707

W/SUN ROOF

63111PANEL, ROOF

main63111-12230iAE82,CE80..SED198308-198707

W/O SUN ROOF

main63111-12240iAE82,CE80..SED..(DX,LE,LEL)198308-198707

W/SUN ROOF

main63111-12260iAE82,CE80..LB198308-198707

W/O SUN ROOF

main63111-12270iAE82,CE80..LB198308-198707

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-12140iAE82,CE80..SED198308-198707

64101PANEL SUB-ASSY, UPPER BACK

main64101-12260iAE82,CE80..SED..(DX,STD)198308-198707

main64101-12280iAE82..SED..(LE,LEL)198308-198707

64173ABRACKET, HIGH MOUNTING STOP LAMP

main64173-12010iAE82..SED198508-198707

64811GLASS, BACK WINDOW

main64801-12340iCE80198308-198408

*EHT,T=3.5

sub64801-12360

main64801-12350iCE80198308-198408

*EHT,T=3.5,HEAVY

sub64801-12370

main64801-12360iAE82,CE80..SED..(DX,LE,LEL)..USA198308-198508

*EHTT,T=3.5

main64801-12370iAE82,CE80..SED..(DX,LE,LEL)198308-198508

*EHTT,T=3.5,HEAVY

main64801-12480iAE82..SED..USA198508-198707

*EHTT,T=3.5

main64801-12490iAE82..SED198508-198707

*EHTT,T=3.5,HEAVY

main64811-12650iCE80198308-198408

*TEM,T=3.5

sub64801-12340

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-12280iAE82,CE80..SED198308-198707

main64812-12290iAE82..SED..(LE,LEL)198408-198707

9163140612

main91631-40612

10 parts on this diagram · 3 diagrams in section
