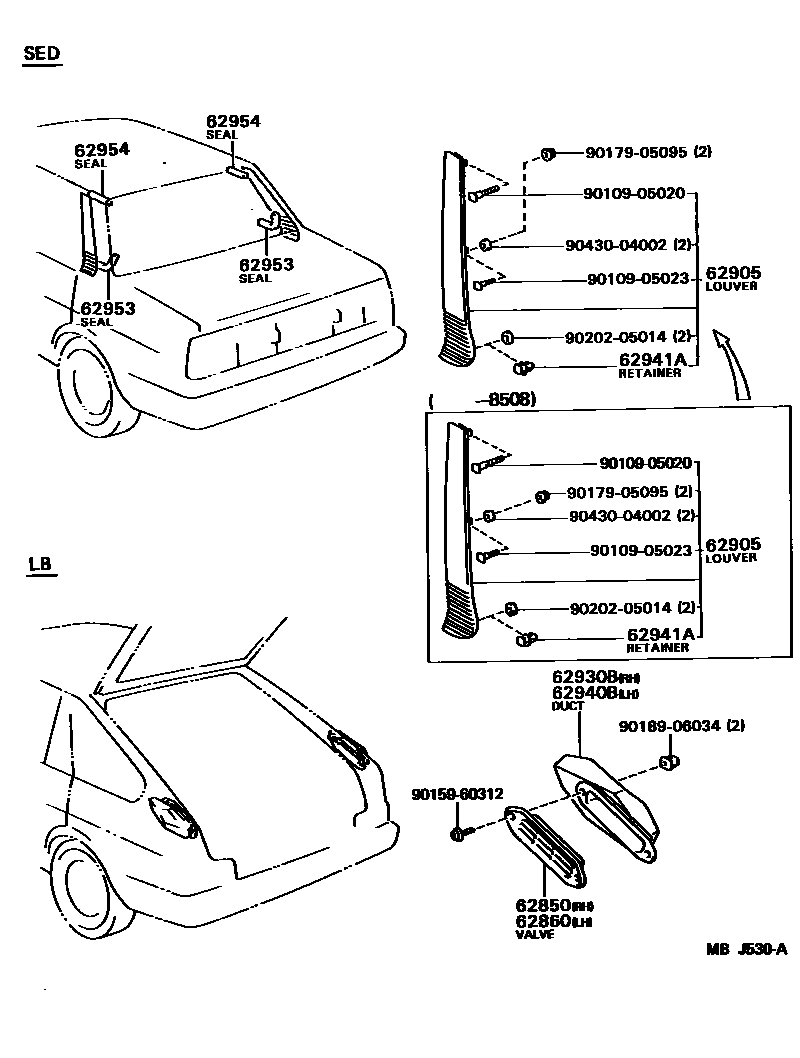

ROOF SIDE VENTILATOR

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-12050iAE82,CE80..LB198308-198707

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62850-12050iAE82,CE80..LB198308-198707

62905LOUVER, QUARTER VENTILATION

main62905-12290iAE82..SED..DX198508-198707

RH

main62905-12300iAE82..SED..(LE,LEL)198508-198707

RH

main62905-19335iAE82,CE80..SED198308-198508

RH

sub62905-12240

main62906-12290iAE82..SED..DX198508-198707

LH

main62906-12300iAE82..SED..(LE,LEL)198508-198707

LH

main62906-19315iAE82,CE80..SED198308-198508

LH

sub62906-12240

62930BDUCT ASSY, QUARTER VENT, RH

main62931-12180iAE82,CE80..LB198308-198707

62940BDUCT ASSY, QUARTER VENT, LH

main62932-12180iAE82,CE80..LB198308-198707

62941ARETAINER, QUARTER VENT DUCT

main62955-20020×4iAE82,CE80..SED198308-198707

sub62955-12010

62953SEAL, QUARTER VENT DUCT, NO.1

main62957-12050×2iAE82,CE80..SED198308-198707

62954SEAL, QUARTER VENT DUCT, NO.2

main62958-12010×2iAE82,CE80..SED198308-198707

9010905020

main90109-05020

9010905023

main90109-05023

9015960312

main90159-60312

9017905095

main90179-05095

9018906034

main90189-06034

9020205014

main90202-05014

9043004002

main90430-04002

15 parts on this diagram · 1 diagram in section
