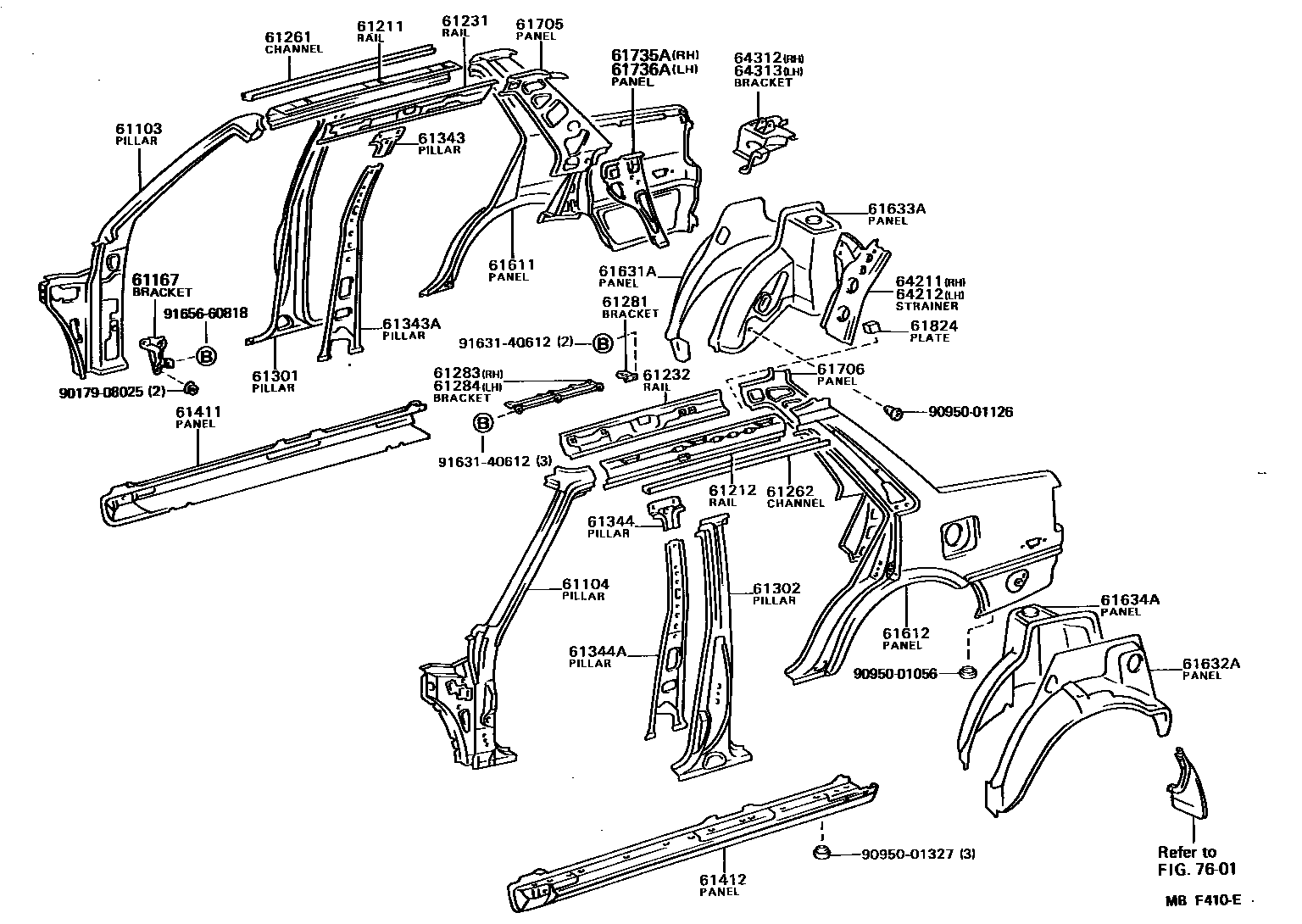

SIDE MEMBER

0001 1 0002 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12410iAE82,CE80..SED..(DX,LE,STD)¥41,500198308-198608

W/O ELECTRIC *RCM,*PW

main61021-12410iAE82..SED¥41,500198608-198707

main61021-12420iAE82..SED..(LE,LEL)..USA¥41,300198308-198508

W/ELECTRIC *RCM

sub61021-12410¥41,500

main61021-12420iAE82..SED..(LE,LEL)¥41,300198508-198608

W/ELECTRIC *PCM OR *PW

sub61021-12410¥41,500

main61021-12480iAE82,CE80..LB198308-198608

W/O ELECTRIC *RCM,*PW

main61021-12480iAE82..LB198608-198707

main61021-12490iAE82..LB..LE..USA198308-198508

W/ELECTRIC *RCM

sub61021-12480

main61021-12490iAE82..LB..LE198508-198608

W/ELECTRIC *PCM OR *PW

sub61021-12480

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12470iAE82,CE80..SED..(DX,LE,STD)¥52,100198308-198608

W/O ELECTRIC *RCM,*PW

main61022-12470iAE82..SED¥52,100198608-198707

main61022-12480iAE82..SED..(LE,LEL)..USA198308-198508

W/ELECTRIC *RCM

sub61022-12470¥52,100

main61022-12480iAE82..SED..(LE,LEL)198508-198608

W/ELECTRIC *RCM OR *PW

sub61022-12470¥52,100

main61022-12540iAE82,CE80..LB¥52,100198308-198608

W/O ELECTRIC *RCM,*PW

main61022-12540iAE82..LB¥52,100198608-198707

main61022-12550iAE82..LB..LE..USA¥52,000198308-198508

W/ELECTRIC *RCM

sub61022-12540¥52,100

main61022-12550iAE82..LB..LE¥52,000198508-198608

W/ELECTRIC *RCM OR *PW

sub61022-12540¥52,100

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12030iAE82,CE80¥3,720198308-198707

61211RAIL, ROOF SIDE, OUTER RH

main61211-12190iAE82,CE80..SED¥2,350198308-198707

main61211-12200iAE82,CE80..LB¥2,340198308-198707

61212RAIL, ROOF SIDE, OUTER LH

main61212-12190iAE82,CE80..SED¥2,350198308-198707

main61212-12200iAE82,CE80..LB¥2,340198308-198707

61231RAIL, ROOF SIDE, INNER RH

main61231-12350iAE82,CE80..SED¥1,870198308-198512

W/O SUN ROOF

sub61231-12360

main61231-12360iAE82,CE80..SED..(DX,LE,LEL)198308-198512

W/SUN ROOF

main61231-12360iAE82..SED198512-198707

main61231-12390iAE82,CE80..LB¥1,930198308-198611

W/O SUN ROOF

sub61231-12400

main61231-12400iAE82..LB198611-198707

main61231-12400iAE82,CE80..LB198308-198611

W/SUN ROOF

61232RAIL, ROOF SIDE, INNER LH

main61232-12250iAE82,CE80..SED¥1,870198308-198512

W/O SUN ROOF

sub61232-12260

main61232-12260iAE82,CE80..SED..(DX,LE,LEL)198308-198512

W/SUN ROOF

main61232-12260iAE82..SED198512-198707

main61232-12290iAE82,CE80..LB¥1,920198308-198512

W/O SUN ROOF

sub61232-12300

main61232-12300iAE82,CE80..LB198308-198512

W/SUN ROOF

main61232-12300iAE82..LB198512-198707

61261CHANNEL, ROOF DRIP, RH

main61265-12060iAE82,CE80..SED¥3,110198308-198707

main61265-12080iAE82,CE80..LB¥2,810198308-198707

61262CHANNEL, ROOF DRIP, LH

main61266-12060iAE82,CE80..SED¥3,110198308-198707

main61266-12080iAE82,CE80..LB¥2,810198308-198707

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-12020iAE82,CE80..DX,LE,LEL¥450198308-198707

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-12020iAE82,CE80..DX,LE,LEL198308-198707

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-12020iAE82,CE80..DX,LE,LEL198308-198707

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-12150iAE82,CE80¥31,900198308-198707

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-12200iAE82,CE80198308-198707

sub61302-12180¥31,900

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-12060iAE82,CE80¥1,900198308-198707

61343APILLAR, CENTER BODY, INNER RH

main61343-12901iAE82,CE80198308-198707

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-12060iAE82,CE80¥1,900198308-198707

61344APILLAR, CENTER BODY, INNER LH

main61344-12901iAE82,CE80198308-198707

61411PANEL, ROCKER, OUTER RH

main61411-12290iAE82,CE80¥19,300198308-198707

61412PANEL, ROCKER, OUTER LH

main61412-12300iAE82,CE80¥19,300198308-198707

61611PANEL, QUARTER, RH

main61601-12913iAE82,CE80..LB¥42,400198501-198707

main61601-1A790iAE82,CE80..SED¥30,700198308-198707

main61601-1A840iAE82,CE80..LB¥42,500198308-198501

sub61601-12913¥42,400

61612PANEL, QUARTER, LH

main61602-12917iAE82,CE80..LB..DX¥42,400198501-198508

main61602-12918iAE82..LB¥42,400198501-198707

main61602-1A380iAE82,CE80..SED..(DX,STD)¥41,600198308-198508

main61602-1A390iAE82..SED..(LE,LEL)¥41,600198308-198707

main61602-1A470iAE82,CE80..LB..DX¥42,500198308-198501

sub61602-12917¥42,400

main61602-1A480iAE82..LB..LE¥42,500198308-198501

sub61602-12918¥42,400

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12160iAE82,CE80¥8,100198308-198707

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12160iAE82,CE80¥8,100198308-198707

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12900iAE82,CE80..SED..(DX,STD)¥17,200198308-198707

main61607-12901iAE82..SED..(LE,LEL)¥17,500198308-198707

main61607-12902iAE82,CE80..LB¥17,200198308-198707

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12900iAE82,CE80..SED..(DX,STD)¥17,200198308-198707

main61608-12901iAE82..SED..(LE,LEL)198308-198707

main61608-12902iAE82,CE80..LB¥20,200198308-198707

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12939iAE82,CE80..SED¥27,000198308-198707

main61705-12944iAE82,CE80..LB¥21,300198308-198707

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12941iAE82,CE80..SED¥24,500198308-198707

main61706-12946iAE82,CE80..LB¥21,300198308-198707

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12190iAE82,CE80..SED¥5,900198308-198707

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12160iAE82,CE80..SED¥4,870198308-198707

61824PLATE, NOISE CONTROL, NO.1

main61824-12010iAE82,CE80¥460198308-198707

sub62939-23010¥370

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-12060iAE82,CE80..SED¥2,250198308-198707

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-12060iAE82,CE80..SED¥2,250198308-198707

64312BRACKET, PACKAGE TRAY, RH

main64312-12900iAE82,CE80..SED¥6,000198308-198707

64313BRACKET, PACKAGE TRAY, LH

main64313-12900iAE82,CE80..SED¥6,000198308-198707

7601

9017908025

main90179-08025¥80

9095001056

main90950-01056¥230

9095001126

main90950-01126¥360

9095001327

main90950-01327¥360

9163140612

main91631-40612¥120

9165660818

main91656-60818¥140

42 parts on this diagram · 2 diagrams in section
