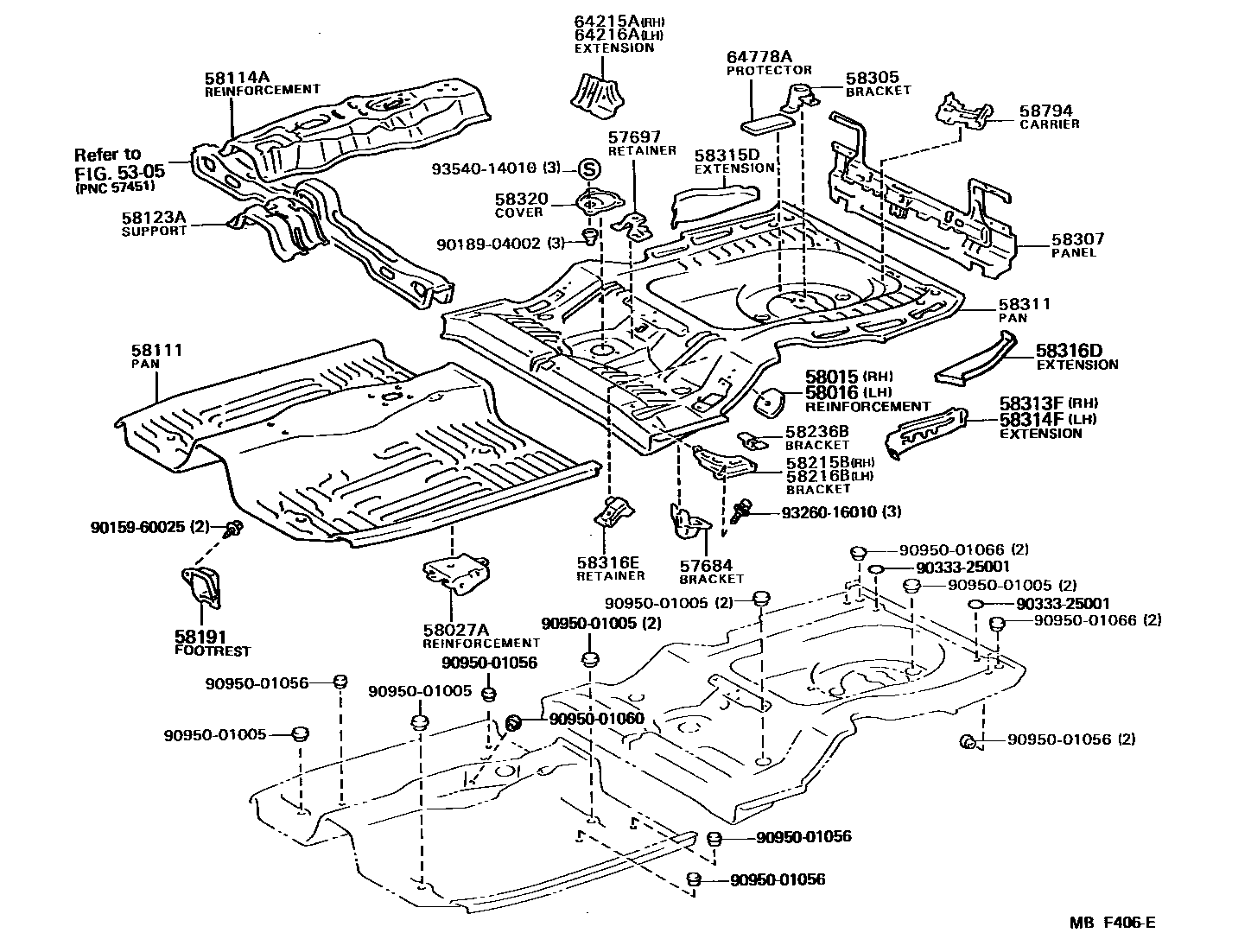

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57684BRACKET, FUEL TANK, REAR

main57686-16011iAE82,CE80¥980198308-198707

RH

main57687-16011iAE82,CE80¥980198308-198707

LH

57697RETAINER, REAR SEAT CUSHION

main57697-16010iAE82,CE80¥460198308-198707

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-12010iAE82,CE80¥1,570198308-198707

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-12010iAE82,CE80¥1,570198308-198707

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12020iAE82,CE80¥2,170198308-198707

58111PAN, FRONT FLOOR

main58111-12170iAE82,CE80198308-198707

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12020iAE82,CE80¥5,800198308-198707

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12010iAE82,CE80¥6,400198308-198707

58191FOOTREST, FRONT FLOOR

main58192-12020iAE82,CE80198308-198707

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-16010iAE82,CE80¥670198308-198707

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-16010iAE82,CE80¥670198308-198707

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAE82,CE80¥680198308-198707

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE82,CE80¥350198308-198707

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12820iAE82,CE80..SED¥23,000198308-198707

main58307-12850iAE82,CE80..LB¥13,700198308-198707

58311PAN, REAR FLOOR

main58311-12100iAE82,CE80..SED..(DX,STD)¥62,900198308-198707

main58311-12110iAE82..SED..LE¥62,900198308-198707

main58311-12130iAE82,CE80..LB198308-198309

sub58311-12110¥62,900

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12180iAE82,CE80..SED¥1,780198308-198707

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12180iAE82,CE80..SED¥1,780198308-198707

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12010iAE82,CE80¥1,070198308-198707

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12010iAE82,CE80¥1,070198308-198707

58316ERETAINER, REAR SEAT SET

main58316-16030iAE82,CE80..SED..(DX,STD)¥750198308-198707

58320COVER, REAR FLOOR SERVICE HOLE

main58325-16020iAE82,CE80¥680198308-198707

58794CARRIER, JACK

main58791-12090iAE82,CE80¥780198408-198707

main58791-16031iAE82,CE80¥1,090198308-198408

64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH

main64215-12010iAE82,CE80..SED¥510198308-198707

64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH

main64216-12010iAE82,CE80..SED¥510198308-198707

64778APROTECTOR, SPARE WHEEL

main64778-12010iAE82,CE80¥1,530198308-198506

sub64778-12020¥1,540

main64778-12020iAE82,CE80¥1,540198506-198707

9015960025

main90159-60025¥200

9018904002

main90189-04002¥100

9033325001

main90333-25001¥140

9095001005

main90950-01005¥400

9095001056

main90950-01056¥230

9095001060

main90950-01060¥200

9095001066

main90950-01066¥210

9326016010

main93260-16010¥110

9354014010

main93540-14010¥100

35 parts on this diagram · 2 diagrams in section
