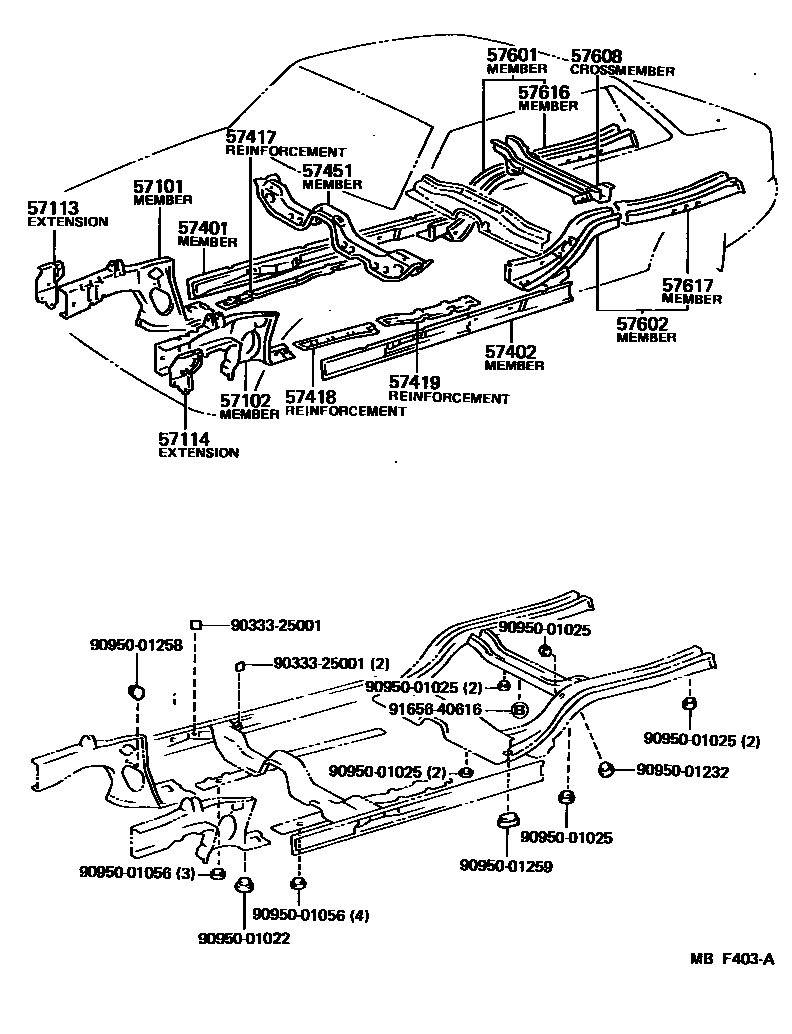

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12240iCE80¥35,700198308-198508

sub57101-12241¥36,000

main57101-12250iAE82¥35,700198308-198609

sub57101-12251¥36,000

main57101-12251iAE82¥36,000198609-198707

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12240iCE80198308-198508

main57102-12250iAE82¥36,000198308-198707

57113EXTENSION, FRONT SIDE MEMBER, RH

main57105-12030iAE82,CE80¥1,810198308-198707

57114EXTENSION, FRONT SIDE MEMBER, LH

main57106-12030iAE82,CE80¥1,810198308-198707

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12190iAE82,CE80¥10,600198308-198707

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12190iAE82,CE80¥10,600198308-198707

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12070iAE82,CE80¥1,430198308-198707

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAE82,CE80¥1,090198308-198707

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-12020iAE82,CE80¥870198308-198707

57451MEMBER, FRONT FLOOR CROSS

main57408-12040iAE82,CE80¥7,000198308-198707

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12360iCE80¥25,600198308-198508

sub57601-12390¥25,500

main57601-12390iAE82¥25,500198308-198707

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12330iAE82,CE80¥34,000198308-198707

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-12050iAE82,CE80¥15,400198308-198707

sub57606-12070¥15,700

main57606-12090iAE82¥15,400198605-198610

sub57606-12050¥15,400

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-12900iAE82,CE80198308-198707

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-12900iAE82,CE80198308-198707

9033325001

main90333-25001¥140

9095001022

main90950-01022¥200

9095001025

main90950-01025¥240

9095001056

main90950-01056¥230

9095001232

main90950-01232¥220

9095001258

main90950-01258¥170

9095001259

main90950-01259¥120

9165640616

main91656-40616¥100

23 parts on this diagram · 1 diagram in section
