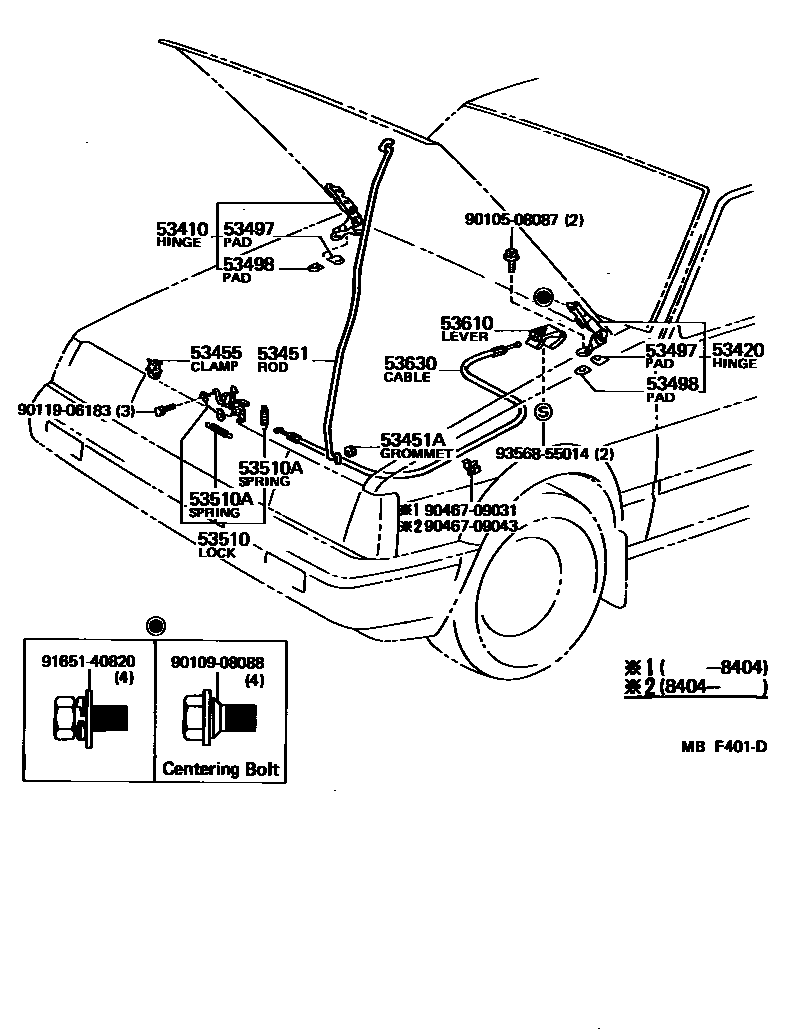

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12050iAE82,CE80198308-198707

sub53410-12051

53420HINGE ASSY, HOOD, LH

main53420-12040iAE82,CE80198308-198707

sub53420-12041

53451ROD, HOOD SUPPORT

main53451-12040iAE82,CE80198308-198505

sub53451-12041

main53451-12070iAE82,CE80198505-198707

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iAE82,CE80198308-198707

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iAE82,CE80198308-198707

53497PAD, HOOD HINGE, NO.1

main53497-12010×2iAE82,CE80198308-198707

T=1.0

sub53497-12011

53498PAD, HOOD HINGE, NO.2

main53498-12010×2iAE82,CE80198308-198707

sub53498-12011

53510LOCK ASSY, HOOD

main53510-12290iAE82,CE80198308-198707

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iAE82,CE80198308-198707

WD=0.9,L=39.6

main90506-20008iAE82,CE80198308-198707

WD=2.0,CW=17,L=60.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-12020-03iAE82,CE80198308-198707

GRAY,GRAY,TRIM1#

sub53601-10020

main53601-12020-04iAE82,CE80198308-198707

BLUE,BLUE,TRIM8#

sub53601-10020

main53601-12020-05iAE82,CE80198308-198408

BEIGE,BEIGE,TRIM3#

sub53601-10020

main53601-12020-06iAE82,CE80198408-198707

BROWN,BROWN,TRIM4#

sub53601-10020

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12180iAE82,CE80198308-198707

9010508087

main90105-08087

9010908088

main90109-08088

9011906183

main90119-06183

9046709031

main90467-09031

9046709043

main90467-09043

9165140820

main91651-40820

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
