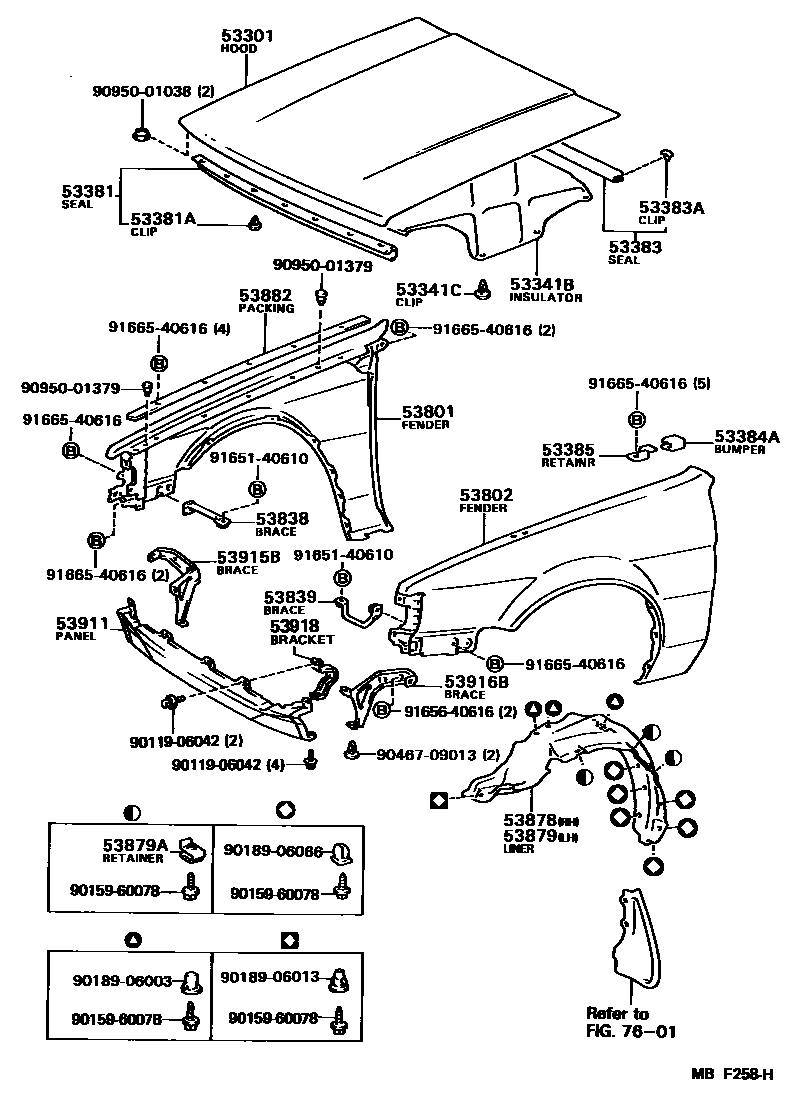

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-12520iAE82,CE80¥38,700198308-198607

sub53301-12521¥38,800

sub90950-01038¥220

main53301-12521iAE82¥38,800198607-198707

53341BINSULATOR, HOOD

main53341-12030iCE80¥7,600198308-198508

53341CCLIP(FOR HOOD INSULATOR)

main90467-09041iCE80¥210198308-198408

sub90467-09050¥120

main90467-09050iCE80¥120198408-198508

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12130iAE82,CE80¥2,080198308-198707

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAE82,CE80¥100198308-198707

53383SEAL, HOOD TO COWL TOP

main53383-12060iAE82,CE80¥1,480198308-198707

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030iAE82,CE80¥170198308-198707

53384ABUMPER, FENDER TO HOOD

main53384-14030iAE82,CE80¥300198308-198707

53385RETAINER, HOOD, BUMPER

main53385-14010iAE82,CE80¥270198308-198707

RH

main53386-14010iAE82,CE80¥270198308-198707

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-1A780iAE82,CE80198308-198412

sub53801-1E360¥33,300

main53801-1E250iAE82¥33,400198508-198707

main53801-1E360iAE82,CE80¥33,300198412-198508

53802FENDER SUB-ASSY, FRONT LH

main53802-1A800iAE82,CE80198308-198412

sub53802-1E250¥33,300

main53802-1E200iAE82¥33,400198508-198707

main53802-1E250iAE82,CE80¥33,300198412-198508

53838BRACE, FRONT FENDER, RH

main53835-12040iAE82,CE80¥450198308-198707

53839BRACE, FRONT FENDER, LH

main53836-12020iAE82,CE80¥500198308-198508

sub53836-12021¥510

main53836-12021iAE82¥510198508-198707

53878LINER, FRONT FENDER, RH

main53875-12080iAE82,CE80¥5,900198308-198508

main53875-12120iAE82¥5,400198508-198707

53879LINER, FRONT FENDER, LH

main53876-12080iAE82,CE80¥5,900198308-198508

main53876-12110iAE82¥5,400198508-198707

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAE82,CE80¥230198308-198707

53882PACKING, FRONT FENDER MAIN

main53882-12070iAE82,CE80¥980198308-198707

53911PANEL, FRONT VALANCE

main53911-12290iAE82,CE80¥11,600198308-198508

main53911-12310iAE82¥12,100198508-198707

53915BBRACE, VALANCE PANEL TO RADIATOR SUPPORT, RH

main53915-12060iAE82,CE80¥3,050198308-198508

main53915-12070iAE82¥3,170198508-198707

53916BBRACE, VALANCE PANEL TO RADIATOR SUPPORT, LH

main53916-12050iAE82,CE80¥3,050198308-198508

main53916-12060iAE82¥3,170198508-198707

53918BRACKET, FRONT VALANCE PANEL

main53918-12040iAE82,CE80¥630198308-198508

main53918-12050iAE82¥750198508-198707

7601

9011906042

main90119-06042¥130

9015960078

main90159-60078¥120

9018906003

main90189-06003¥140

9018906013

main90189-06013¥70

9018906066

main90189-06066¥80

9046709013

main90467-09013¥80

9095001038

main90950-01038¥220

9095001379

main90950-01379¥250

9165140610

main91651-40610¥160

9165640616

main91656-40616¥100

9166540616

main91665-40616¥70

33 parts on this diagram · 1 diagram in section
