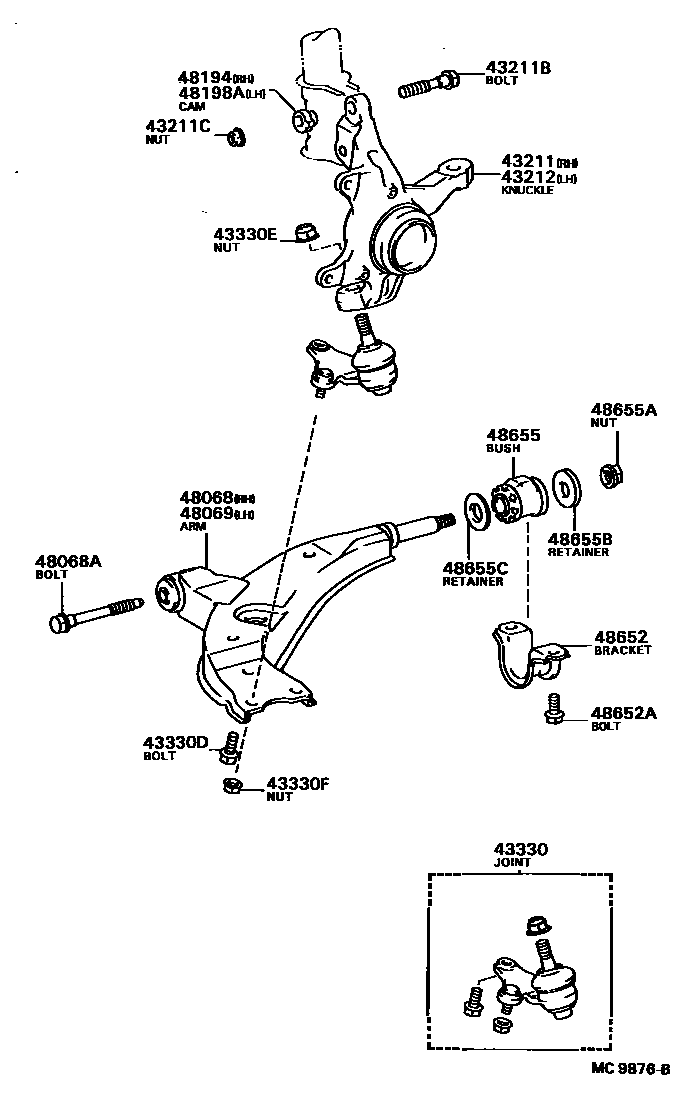

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-12070iAE82198308-198707

main43211-12080iCE80198308-198508

main43211-20090iCE80..DX198308-198508

W/POWER STEERING

43211BBOLT (FOR ABSORBER SETTING)

main90105-12042iAE82198308-198707

sub90105-12263

main90105-15001iCE80198308-198508

43211CNUT (FOR ABSORBER SETTING)

main90179-12025iAE82198308-198707

main90179-15001iCE80198308-198508

43212KNUCKLE, STEERING, LH

main43212-12030iAE82198308-198707

main43212-12040iCE80198308-198508

main43212-20050iCE80..DX198308-198508

W/POWER STEERING

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29135iAE82,CE80198308-198310

sub43330-29136

main43330-29136iAE82,CE80198310-198410

sub43330-29137

main43330-29137iAE82,CE80198410-198602

sub43330-29138

main43330-29138iAE82198602-198703

sub43330-29139

main43330-29139iAE82198703-198707

sub43330-29205

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-10069iAE82,CE80198308-198510

main90119-10407iAE82198510-198707

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90179-14015iAE82,CE80198308-198707

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10054iAE82,CE80198308-198510

main90179-10087iAE82198510-198702

main90179-10103iAE82198702-198707

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20150iAE82,CE80198308-198703

sub48068-20151

sub43330-29139

main48068-20151iAE82198703-198707

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12081iAE82,CE80198308-198505

sub90119-12083

main90119-12083iAE82,CE80198505-198707

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20150iAE82,CE80198308-198703

sub48069-20151

sub43330-29139

main48069-20151iAE82198703-198707

48194CAM, CAMBER ADJUST, RH

main48194-16010iAE82198308-198508

sub48194-16011

main48194-16011iAE82198508-198707

main48194-32010iCE80198308-198508

sub48194-32020

48198ACAM, CAMBER ADJUST, LH

main48198-16010iAE82198308-198508

sub48198-16011

main48198-16011iAE82198508-198707

main48198-32010iCE80198308-198508

sub48198-32020

48652BRACKET, FRONT LOWER ARM

main48652-20030iAE82,CE80198308-198707

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iAE82,CE80198308-198707

48655BUSH, LOWER ARM, NO.2

main48655-20030iAE82,CE80198308-198707

48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)

main90179-14006iAE82,CE80198308-198707

48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02060iAE82,CE80198308-198707

48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02061iAE82,CE80198308-198707

19 parts on this diagram · 1 diagram in section
