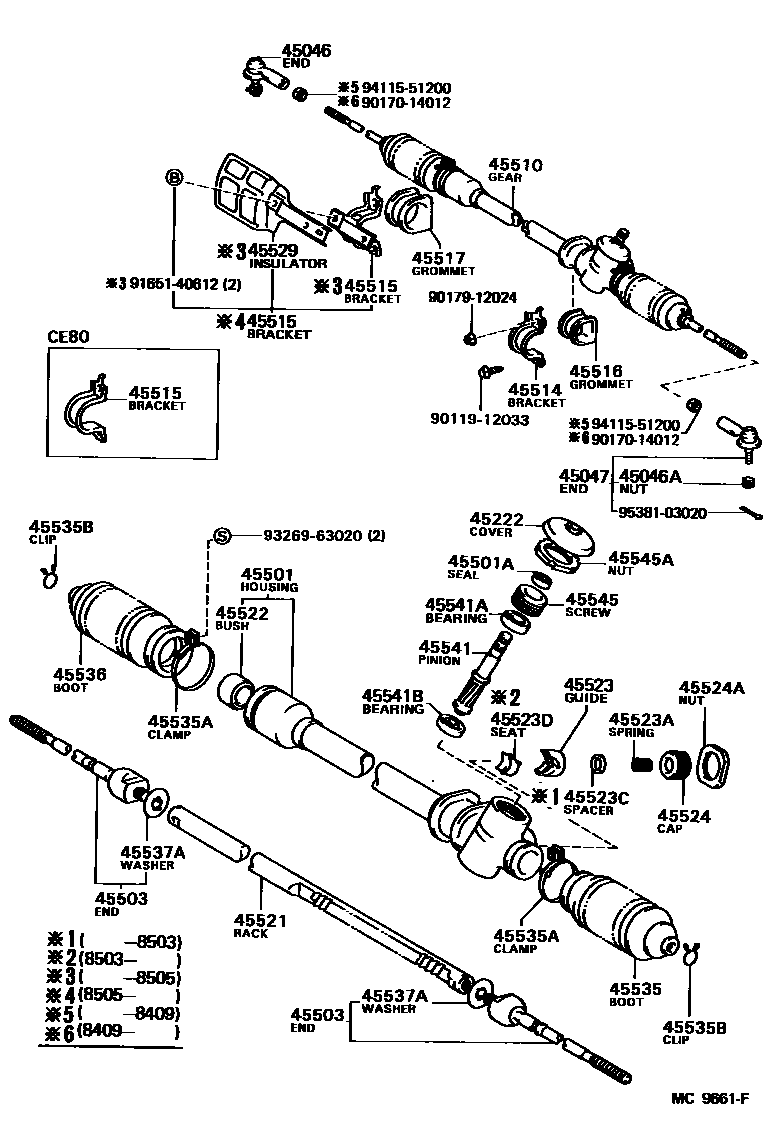

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE82,CE80¥3,030198409-198707

main45046-29135iAE82,CE80¥3,820198308-198409

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE82,CE80¥130198308-198707

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE82,CE80¥3,030198409-198707

main45046-29135iAE82,CE80¥3,820198308-198409

45222COVER, STEERING GEAR DUST

main45222-10030iAE82,CE80..DX,LE,STD¥590198308-198707

45501HOUSING SUB-ASSY, STEERING RACK

main45501-12100iAE82,CE80..DX,LE,STD¥13,400198308-198707

sub45501-12120¥13,300

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iAE82,CE80..DX,LE,STD¥190198308-198707

sub90311-15002¥190

45503END SUB-ASSY, STEERING RACK

main45503-19035iAE82,CE80..DX,LE,STD¥7,700198308-198409

main45503-19036iAE82,CE80..DX,LE¥6,000198409-198707

45510GEAR ASSY, STEERING

main45510-12070iCE80198308-198409

sub45510-12071¥45,700

sub45046-19175¥3,030

sub90170-14012¥110

main45510-12071iCE80¥45,700198409-198508

sub45510-12250¥45,700

main45510-12090iAE82..DX,LE198308-198409

sub45510-12091¥46,300

sub45046-19175¥3,030

sub90170-14012¥110

main45510-12091iAE82..DX,LE¥46,300198409-198707

sub45510-12240¥47,600

sub45222-10030¥590

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12040iAE82,CE80..DX,LE,STD¥710198308-198707

main45514-20010iAE82,CE80..DX,LE,LEL¥1,460198305-198707

W/POWER STEERING

45515BRACKET, STEERING RACK HOUSING, NO.2

main45506-12010iAE82¥1,670198505-198707

W/POWER STEERING

main45506-12020iAE82..DX,LE¥1,620198505-198707

main45515-12060iCE80¥790198308-198508

sub45515-12070¥800

main45515-12070iCE80..DX¥800198308-198508

W/POWER STEERING

main45515-12100iAE82198308-198505

W/POWER STEERING

main45515-12110iAE82..DX,LE198308-198505

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-20010iAE82,CE80¥760198308-198707

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12050iAE82,CE80¥1,190198308-198707

main45517-12060iCE80..DX¥1,290198308-198508

W/POWER STEERING

45521RACK, STEERING

main45521-12100iCE80¥9,500198308-198508

sub45521-20030¥9,400

sub45541-12060¥3,480

sub90501-23007¥170

sub90501-26038¥190

main45521-12120iAE82..DX,LE¥9,400198308-198707

45522BUSH, STEERING RACK

main45522-10021iAE82,CE80..DX,LE,STD¥2,150198311-198707

main45522-10030iAE82,CE80¥2,250198308-198311

sub45522-10031¥2,140

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-16011iAE82,CE80..DX,LE,STD¥540198308-198503

main45523-17012iAE82,CE80..DX,LE¥470198503-198707

sub45523-12040¥440

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23007iAE82,CE80..DX,LE,STD¥170198308-198503

main90501-28007iAE82..DX,LE¥200198503-198707

main90501-30007iCE80¥210198503-198508

45523CSPACER(FOR RACK GUIDE)

main90560-23003iAE82,CE80..DX,LE,STD¥600198308-198503

45523DSEAT, RACK GUIDE

main44277-17010iAE82,CE80..DX,LE¥410198503-198707

45524CAP, STEERING RACK GUIDE SPRING

main45524-12020iAE82,CE80..DX,LE¥860198503-198707

main45524-16010iAE82,CE80..DX,LE,STD¥630198308-198503

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iAE82,CE80..DX,LE,STD¥350198308-198707

45529INSULATOR, STEERING RACK BOOT HEAT

main45529-12010iAE82198308-198505

45535BOOT, STEERING RACK, NO.1

main45535-12011iAE82,CE80..DX,LE,STD¥1,820198308-198707

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10273iAE82,CE80..DX,LE,STD¥310198308-198707

NO.1

main90949-01082iAE82,CE80..DX,LE,STD¥310198308-198707

NO.2

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iAE82,CE80..DX,LE,STD¥120198308-198707

45536BOOT, STEERING RACK, NO.2

main45536-12030iAE82,CE80..DX,LE,STD¥2,000198308-198707

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14002iAE82,CE80..DX,LE,STD¥550198308-198707

45541PINION, STEERING

main45541-12040iCE80¥3,520198308-198508

sub45521-12120¥9,400

sub45521-20030¥9,400

sub45541-12060¥3,480

sub90501-23007¥170

sub90501-26038¥190

main45541-12060iAE82..DX,LE¥3,480198308-198707

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003iAE82,CE80..DX,LE,STD¥2,140198308-198707

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001iAE82,CE80..DX,LE,STD¥1,530198308-198707

45545SCREW, PINION BEARING ADJUSTING

main45545-10010iAE82,CE80..DX,LE,STD¥980198308-198707

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iAE82,CE80..DX,LE,STD¥580198308-198707

9011912033

main90119-12033¥350

9017014012

main90170-14012¥110

9017912024

main90179-12024¥100

9165140612

main91651-40612¥70

9326963020

main93269-63020¥110

9411551200

main94115-51200¥170

9538103020

main95381-03020¥90

38 parts on this diagram · 5 diagrams in section
