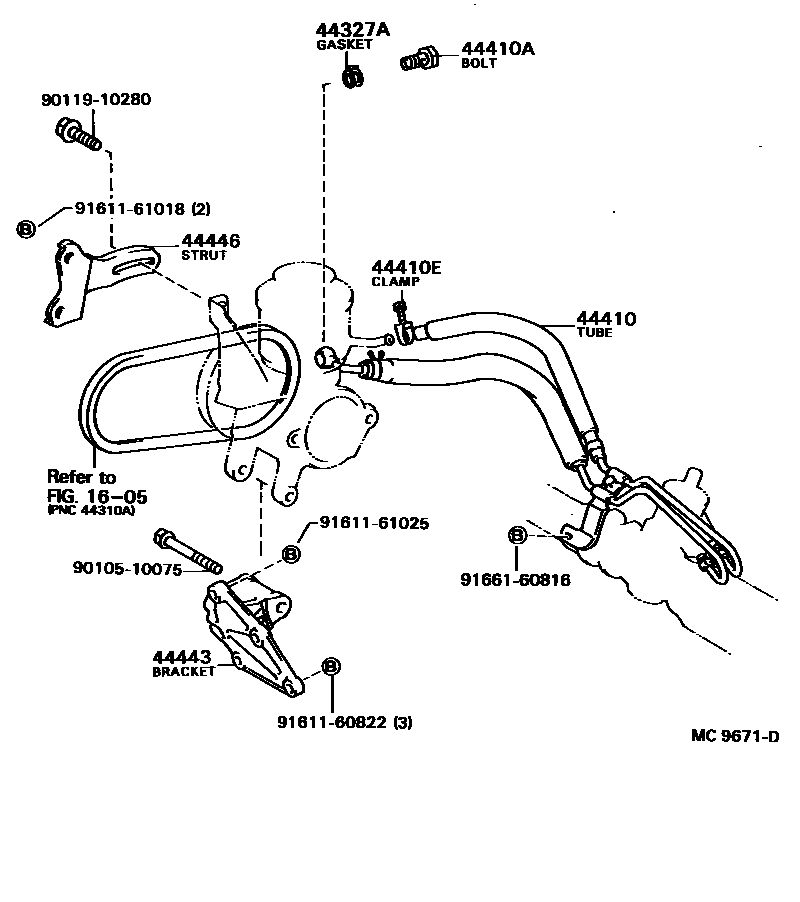

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE82,CE80..DX,LE,LEL¥260198308-198707

44410TUBE ASSY, PRESSURE FEED

main44410-12050iAE82¥37,300198308-198707

sub44410-12051¥37,500

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAE82,CE80..DX,LE,LEL¥610198308-198707

44410ECLAMP(FOR PRESSURE FEED TUBE)

main90460-01001iAE82,CE80..DX,LE,LEL¥580198308-198707

44443BRACKET, PUMP

main44443-12050iAE82¥8,500198308-198707

44446STRUT, ADJUSTING

main44446-12030iAE82¥1,630198308-198707

9010510075

main90105-10075¥180

9011910280

main90119-10280¥360

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

9166160816

main91661-60816¥130

13 parts on this diagram · 2 diagrams in section
