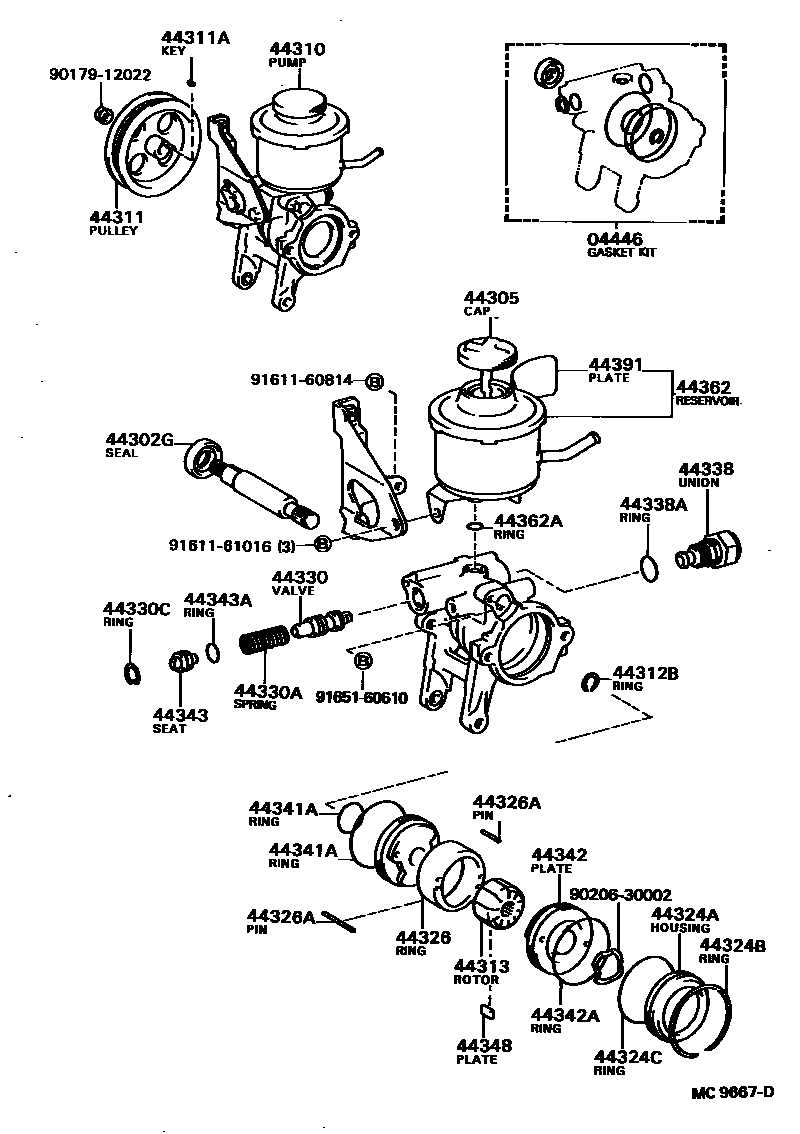

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12020iAE82,CE80..DX,LE,LEL¥2,360198308-198707

sub04446-27010¥2,370

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iAE82,CE80..DX,LE,LEL¥240198308-198707

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iAE82¥1,950198308-198707

sub44305-22040¥1,940

main44305-32010iCE80..DX¥1,560198308-198508

44310PUMP ASSY, VANE

main44320-12050iCE80..DX¥82,200198308-198507

sub44320-12051¥81,700

main44320-12051iCE80¥81,700198507-198508

sub44320-12052¥81,300

main44320-12060iAE82¥90,100198308-198507

sub44320-12061¥93,500

main44320-12061iAE82¥93,500198507-198707

sub44320-12062¥93,500

44311PULLEY, VANE PUMP

main44311-12030iCE80..DX¥7,400198308-198508

main44311-12040iAE82¥7,400198308-198707

44311AKEY, VANE PUMP PULLEY

main90280-05008iAE82,CE80..DX,LE,LEL¥220198308-198707

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAE82,CE80..DX,LE,LEL¥140198308-198707

44313ROTOR, VANE PUMP

main44313-12010iAE82,CE80..DX,LE,LEL¥7,900198308-198707

NO MARK,NO MARK

sub44313-22040¥7,700

main44313-12020iAE82,CE80..DX,LE,LEL¥7,900198308-198707

MARK 1,MARK 1

sub44313-22050¥7,700

main44313-12030iAE82,CE80..DX,LE,LEL¥7,900198308-198707

MARK 2,MARK 2

sub44313-22060¥7,700

main44313-12040iAE82,CE80..DX,LE,LEL¥7,900198308-198707

MARK 3,MARK 3

sub44313-22070¥7,700

main44313-12050iAE82,CE80..DX,LE,LEL¥7,900198308-198707

MARK 4,MARK 4

sub44313-22080¥7,700

44324AHOUSING, PUMP, REAR

main44324-12030iAE82,CE80..DX,LE,LEL¥13,100198308-198507

main44324-12031iAE82,CE80¥6,100198507-198707

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iAE82,CE80..DX,LE,LEL¥220198308-198707

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iAE82,CE80..DX,LE,LEL¥300198308-198707

44326RING, CAM(FOR VANE PUMP)

main44325-12110iAE82,CE80..DX,LE,LEL¥8,800198308-198707

NO MARK,NO MARK

main44325-12120iAE82,CE80..DX,LE,LEL¥8,800198308-198707

MARK 1,MARK 1

main44325-12130iAE82,CE80..DX,LE,LEL¥8,800198308-198707

MARK 2,MARK 2

main44325-12140iAE82,CE80..DX,LE,LEL¥8,800198308-198707

MARK 3,MARK 3

main44325-12150iAE82,CE80..DX,LE,LEL¥8,800198308-198707

MARK 4,MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAE82,CE80..DX,LE,LEL¥150198308-198707

L=28,OD=4.0,L=28

main90250-04049iAE82,CE80..DX,LE,LEL¥190198308-198707

L=43,OD=4.0,L=43

44330VALVE ASSY, FLOW CONTROL

main44330-12130iCE80..DX¥8,100198308-198508

MARK A,MARK A

sub44330-12131¥8,600

main44330-12140iCE80..DX¥8,100198308-198508

MARK B,MARK B

sub44330-12141¥8,600

main44330-12150iCE80..DX¥8,100198308-198508

MARK C,MARK C

sub44330-12151¥8,600

main44330-12160iCE80..DX¥8,100198308-198508

MARK D,MARK D

sub44330-12161¥8,600

main44330-12170iCE80..DX¥8,100198308-198508

MARK E,MARK E

sub44330-12171¥8,600

main44330-12180iCE80..DX¥8,100198308-198508

MARK F,MARK F

sub44330-12181¥8,600

main44330-14010iAE82¥7,900198308-198707

MARK A,MARK A

sub44330-20010¥8,600

main44330-14020iAE82¥7,900198308-198707

MARK B,MARK B

sub44330-20020¥8,600

main44330-14030iAE82¥7,900198308-198707

MARK C,MARK C

sub44330-20030¥8,600

main44330-14040iAE82¥7,900198308-198707

MARK D,MARK D

sub44330-20040¥8,600

main44330-14050iAE82¥7,900198308-198707

MARK E,MARK E

sub44330-20050¥8,600

main44330-14060iAE82¥7,900198308-198707

MARK F,MARK F

sub44330-20060¥8,600

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iAE82,CE80¥160198507-198707

main90501-12447iAE82,CE80..DX,LE,LEL¥660198308-198507

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iAE82,CE80..DX,LE,LEL¥260198308-198707

44338UNION, PRESSURE PORT

main44308-12020iCE80..DX198308-198507

main44308-12022iCE80¥7,200198507-198508

sub44308-12042¥7,100

main44308-12040iAE82¥7,200198308-198408

sub44308-12041¥7,600

main44308-12041iAE82¥7,600198408-198507

sub44308-12042¥7,100

main44308-12042iAE82¥7,100198507-198707

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iAE82,CE80..DX,LE,LEL¥300198308-198508

ID=19.5,OD=22.5

sub90301-19013¥260

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iAE82,CE80..DX,LE,LEL¥300198308-198707

INNER

sub90301-25008¥300

main90301-52001iAE82,CE80..DX,LE,LEL¥300198308-198707

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-12020iAE82,CE80..DX,LE,LEL¥6,200198308-198507

main44342-12021iAE82,CE80¥3,350198507-198707

sub44342-32010¥4,150

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iAE82¥300198308-198707

44343SEAT, FLOW CONTROL SPRING

main44343-12010iAE82,CE80..DX,LE,LEL¥1,240198308-198707

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iAE82,CE80..DX,LE,LEL¥210198308-198707

44348PLATE, VANE PUMP

main44345-12010iAE82,CE80..DX,LE,LEL¥660198308-198707

L=14.997,L=14.996-14.998,ROTOR NO MARK

main44345-12020iAE82,CE80..DX,LE,LEL¥660198308-198707

L=14.995,L=14.994-14.996,ROTOR MARK 1

main44345-12030iAE82,CE80..DX,LE,LEL¥660198308-198707

L=14.993,L=14.992-14.994,ROTOR MARK 2

main44345-12040iAE82,CE80..DX,LE,LEL¥660198308-198707

L=14.991,L=14.990-14.992,ROTOR MARK 3

main44345-12050iAE82,CE80..DX,LE,LEL¥660198308-198707

L=14.989,L=14.988-14.990,ROTOR MARK 4

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-12030iAE82¥10,100198308-198707

main44360-12020iCE80..DX¥10,200198308-198508

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-12003iAE82¥300198308-198707

sub90301-11016¥140

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12020iAE82198308-198707

9017912022

main90179-12022¥370

9020630002

main90206-30002¥300

9161160814

main91611-60814¥100

9161161016

main91611-61016¥270

9165160610

main91651-60610¥100

32 parts on this diagram · 2 diagrams in section
