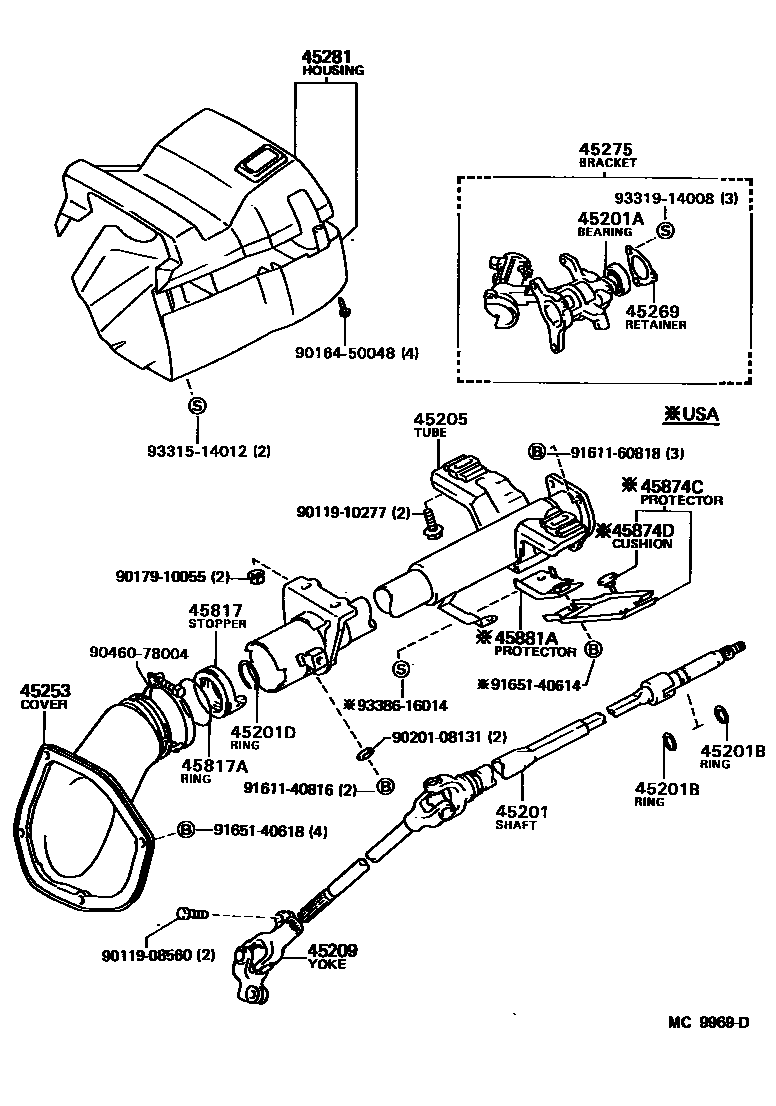

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
W/POWER STEERING
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201DRING(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
W/TILT STEERING
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-10020
45253COVER, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
45817STOPPER, STEERING SHAFT THRUST
sub45808-20030
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45874CPROTECTOR, STEERING COLUMN, NO.1
45874DCUSHION(FOR STEERING COLUMN PROTECTOR)
45881APROTECTOR, STEERING COLUMN, NO.2
9011908560
main90119-08560
9011910277
main90119-10277
9016450048
main90164-50048
9017910055
main90179-10055
9020108131
main90201-08131
9046078004
main90460-78004
9161140816
main91611-40816
9161160818
main91611-60818
9165140614
main91651-40614
9165140618
main91651-40618
9331514012
main93315-14012
9331914008
main93319-14008
9338616014
main93386-16014
28 parts on this diagram · 2 diagrams in section
