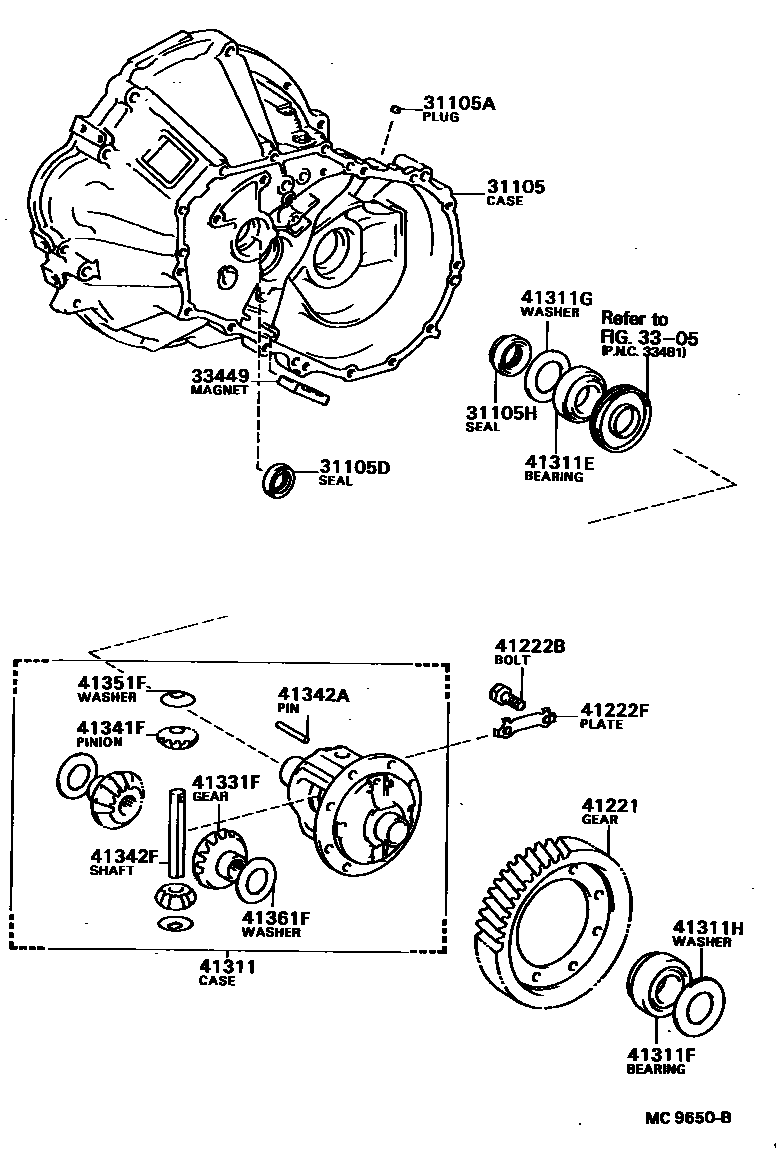

FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
3305
33449MAGNET, TRANSMISSION
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CASE, FRONT DIFFERENTIAL
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.60,T=1.60
T=1.65,T=1.65
T=1.70,T=1.70
T=1.75,T=1.75
T=1.80,T=1.80
T=1.85,T=1.85
T=1.90,T=1.90
T=1.95,T=1.95
T=2.00
T=2.00,T=2.00
T=2.05,T=2.05
T=2.10,T=2.10
T=2.15,T=2.15
T=2.20,T=2.20
T=2.25,T=2.25
T=2.30,T=2.30
T=2.35,T=2.35
T=2.40,T=2.40
T=2.45,T=2.45
T=2.50,T=2.50
T=2.55,T=2.55
T=2.60,T=2.60
T=2.65,T=2.65
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10,T=2.10
T=2.00,MARK V,T=2.00
T=2.35,MARK A,T=2.35
T=2.40,MARK B,T=2.40
T=2.45,MARK C,T=2.45
T=2.50,MARK D,T=2.50
T=2.55,MARK E,T=2.55
T=2.60,MARK F,T=2.60
T=2.65,MARK G,T=2.65
T=2.70,MARK H,T=2.70
T=2.75,MARK J,T=2.75
T=2.80,MARK K,T=2.80
T=2.85,MARK L,T=2.85
T=2.90,MARK M,T=2.90
T=2.10,MARK Q,T=2.10
T=2.15,MARK R,T=2.15
T=2.20,MARK S,T=2.20
T=2.25,MARK T,T=2.25
T=2.30,MARK U,T=2.30
T=2.05,MARK W,T=2.05
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95,T=0.95
T=1.00,T=1.00
T=1.05,T=1.05
T=1.10,T=1.10
T=1.15,T=1.15
T=1.20,T=1.20
T=1.00,MARK 02,T=1.0
T=1.10,MARK 03,T=1.1
T=1.20,MARK 04,T=1.2
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.15,MARK 16,T=1.15
20 parts on this diagram · 5 diagrams in section
