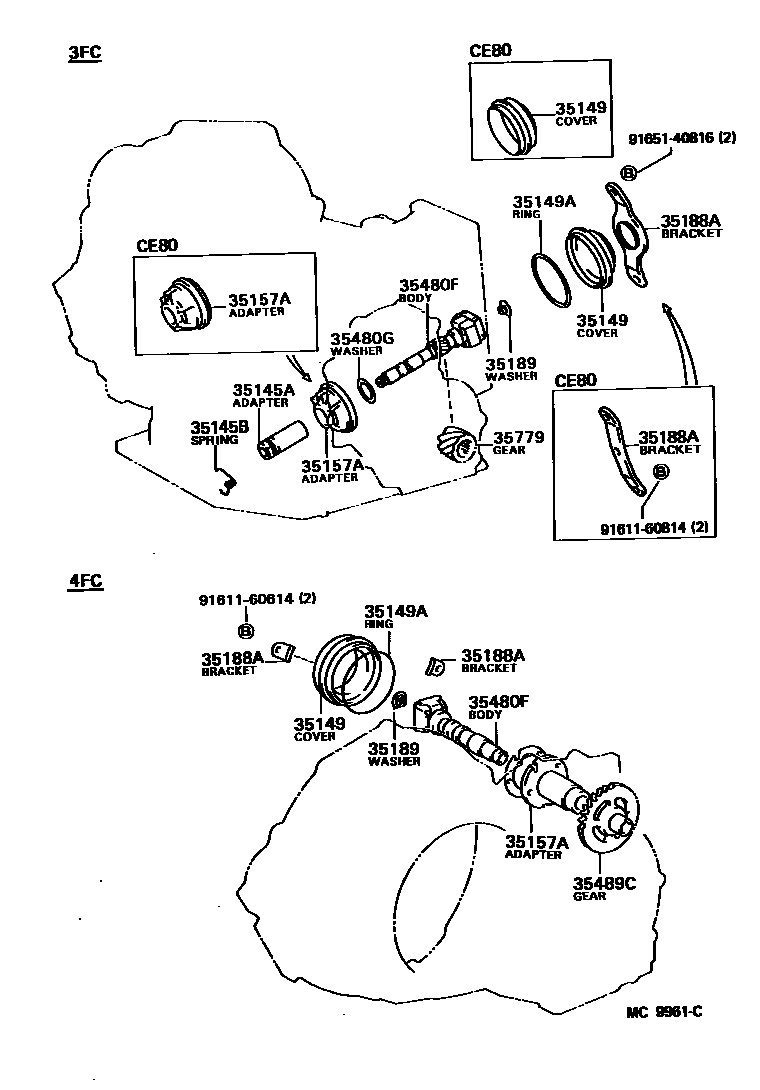

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32010iAE82,CE80..3FC198308-198411

sub35145-32011

main35145-32011iAE82,CE80..3FC198411-198707

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iAE82,CE80..3FC198308-198707

35149COVER, GOVERNOR

main35149-12010iAE82..3FC198308-198707

main35149-20010iAE82..4FC198408-198707

main35149-32010iCE80..3FC198308-198508

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iCE80..3FC198308-198508

main90301-68001iAE82..4FC198408-198707

main90301-73001iAE82..3FC198308-198707

35157AADAPTER, GOVERNOR BODY

main35157-12010iAE82..3FC198308-198707

main35157-20030iAE82..4FC198408-198411

sub35157-20031

main35157-20031iAE82..4FC198411-198707

main35157-32010iCE80..3FC198308-198407

sub35157-32011

sub90201-25003

main35157-32011iCE80..3FC198407-198508

35188ABRACKET, GOVERNOR COVER

main35188-12010iAE82..3FC198308-198707

main35188-20010iAE82..4FC198408-198707

main35188-32011iCE80..3FC198308-198508

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32010iAE82,CE80..ATM198308-198707

sub35189-32011

35480FBODY ASSY, GOVERNOR

main35480-20020iAE82..4FC198408-198412

sub35480-20021

main35480-20021iAE82..4FC198412-198707

main35480-32010iAE82..3FC198308-198412

sub35480-32011

main35480-32012iAE82..3FC198412-198707

sub35480-32013

main35480-32020iCE80..3FC198308-198412

sub35480-32021

main35480-32021iCE80..3FC198412-198508

sub35480-32022

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iAE82,CE80..3FC198407-198707

T=1.0

main90201-25003iAE82..3FC198308-198407

main90201-26004iCE80..3FC198308-198407

T=1.6

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iAE82..4FC198408-198707

35779GEAR, GOVERNOR DRIVE

main35779-32010iAE82,CE80..3FC198308-198707

9161160614

main91611-60614

9161160814

main91611-60814

9165140816

main91651-40816

14 parts on this diagram · 1 diagram in section
