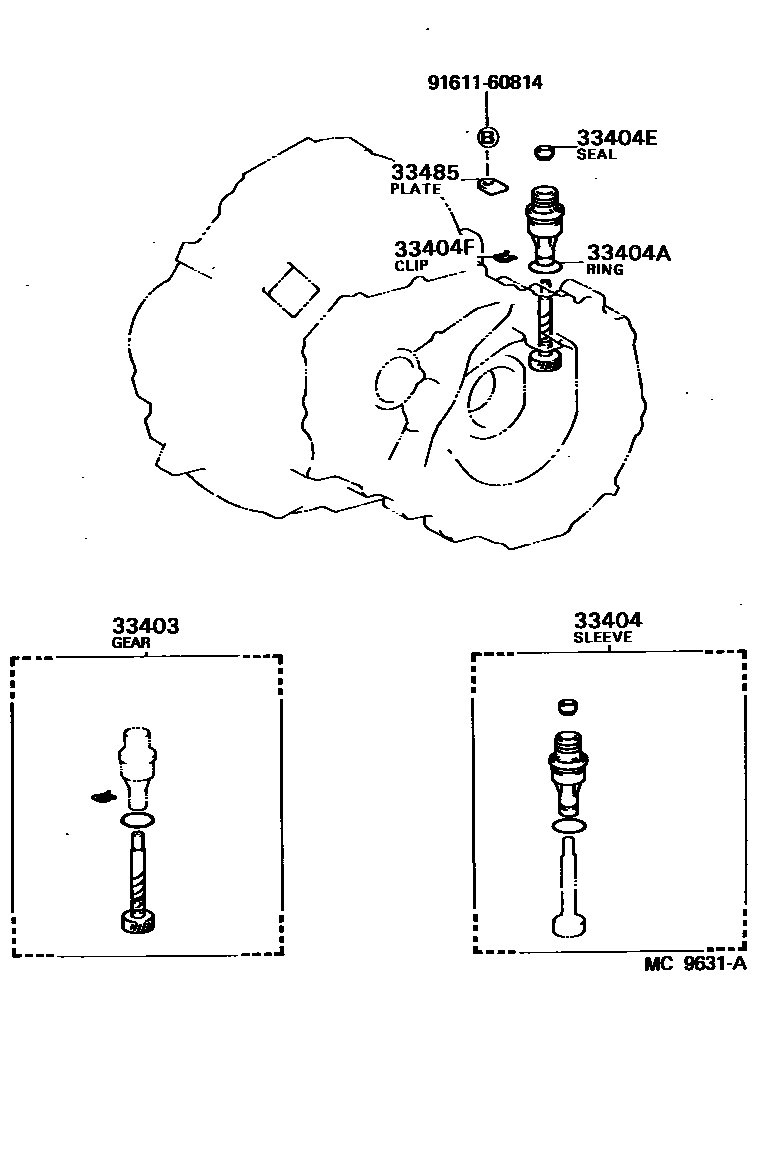

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19285iAE82..5F198308-198707

N=31,MARK 31:35

main33403-39115iCE80..MTM198308-198508

N=22,MARK 22:25

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-12030iAE82..5F198308-198707

main33404-16010iCE80..MTM198308-198508

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iCE80..MTM198308-198508

main96711-24030iAE82..5F198308-198707

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE82,CE80..MTM198308-198707

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE82,CE80..MTM198308-198707

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iCE80..MTM198308-198508

main33485-30020iAE82..5F198308-198707

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
