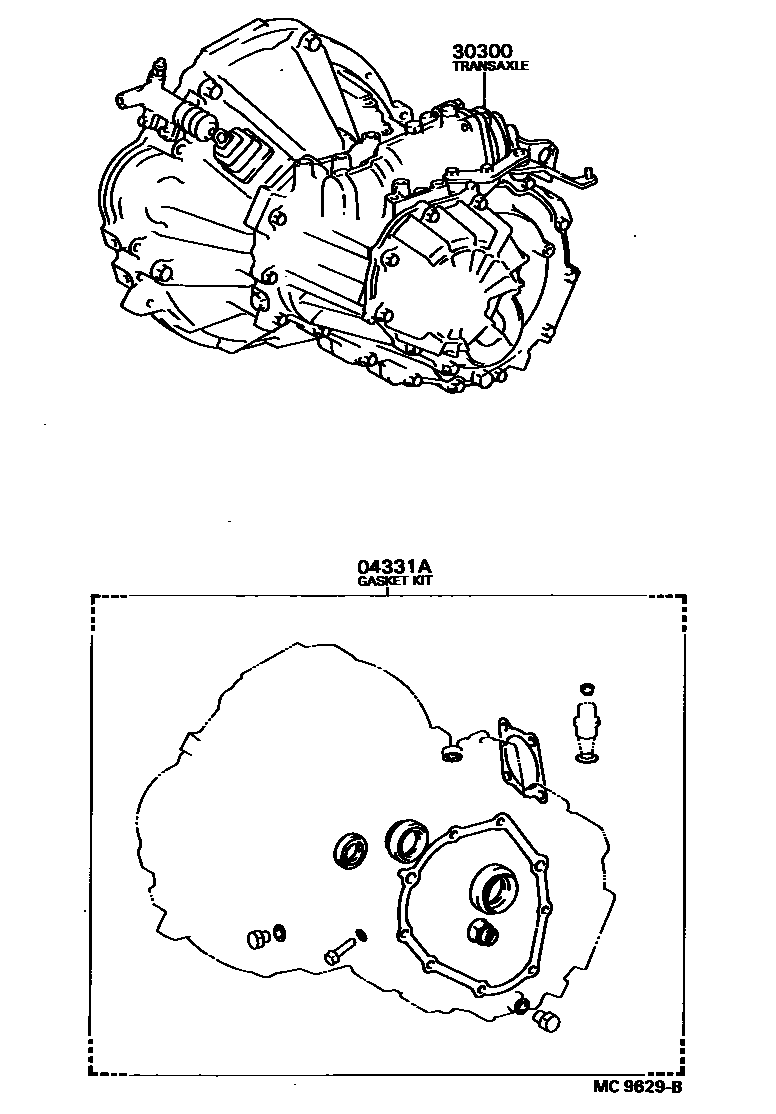

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080iAE82..5F198308-198707

main04331-32010iCE80..MTM198308-198508

30300TRANSAXLE ASSY, MANUAL

main30300-12020iCE80..STD198308-198408

sub30300-12021

sub11355-64032

sub11356-64010

sub91621-60610

sub91651-61022

main30300-12080iAE82..5F198308-198704

sub30300-12082

sub11355-15060

sub11361-16020

sub16268-15060

sub16322-15030

sub91611-61025

main30300-12082iAE82..5F198704-198707

main30300-12120iCE80..5F198308-198508

sub30300-12010

2 parts on this diagram · 2 diagrams in section
