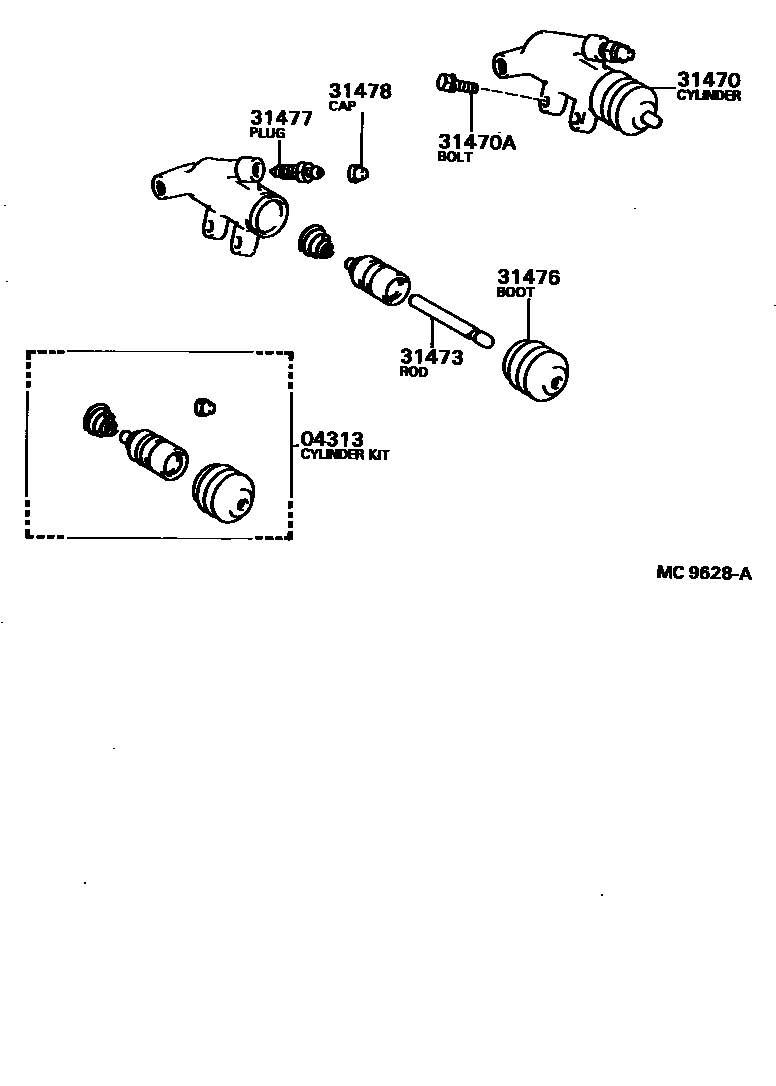

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12010iAE82..5F¥1,030198308-198707

main04313-22020iCE80..MTM¥1,040198405-198508

sub04313-12030¥800

main04313-32010iCE80..MTM¥1,030198308-198405

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12040iAE82..5F¥7,300198308-198410

sub31470-12041¥7,400

sub91611-40820¥130

main31470-12041iAE82..5F¥7,400198410-198707

sub31470-12042¥7,500

main31470-32010iCE80..MTM¥7,200198308-198405

sub31470-32020¥7,200

main31470-32020iCE80..MTM¥7,200198405-198508

sub31470-32021¥7,500

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE82..5F¥170198409-198707

*8-1.25PX22-17.1

main91611-60825iAE82,CE80..MTM¥140198308-198508

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAE82,CE80..MTM¥450198308-198707

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE82,CE80..MTM¥230198308-198707

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCE80..MTM¥180198308-198508

main47547-60020iAE82..5F¥230198308-198707

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE82,CE80..MTM¥160198308-198707

7 parts on this diagram · 2 diagrams in section
