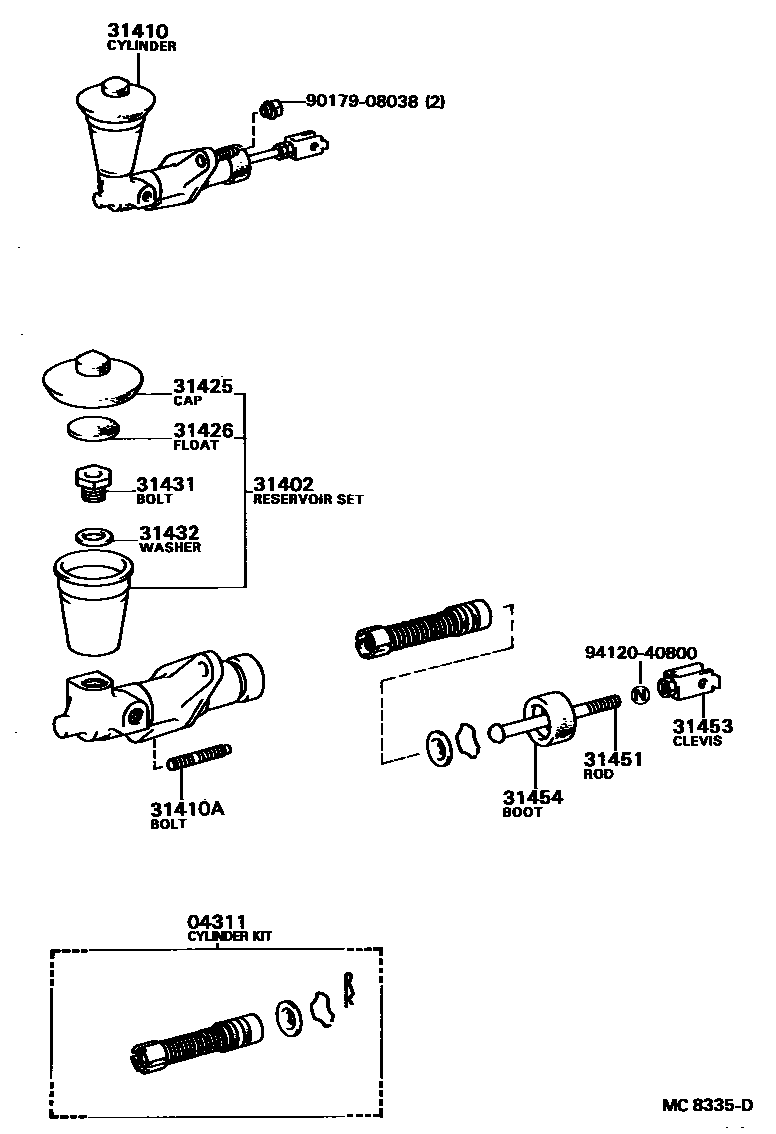

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12030iAE82..5F198308-198402

sub04311-12031

main04311-17030iAE82..5F198508-198607

sub04311-17031

main04311-22020iAE82..5F198607-198704

sub04311-22021

main04311-22021iAE82..5F198704-198707

sub04311-22022

main04311-30080iCE80..MTM198308-198508

sub04311-14020

main04311-32010iAE82..5F198402-198505

sub04311-32011

main04311-32011iAE82..5F198505-198508

sub04311-32012

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12010iAE82..5F198308-198704

sub31402-30030

main31402-30030iCE80..MTM198308-198707

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12120iAE82..5F198308-198402

sub31410-12280

main31410-12121iAE82..5F198402-198505

sub31410-12122

main31410-12122iAE82..5F198505-198508

sub31410-12260

main31410-12160iAE82..5F198508-198704

sub31410-12161

main31410-12161iAE82..5F198704-198707

sub31410-12162

main31410-32040iCE80..MTM198308-198508

sub31410-32041

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE82,CE80..MTM198308-198707

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iAE82..5F198308-198704

sub47230-20040

main47230-20040iCE80..MTM198308-198707

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE82,CE80..MTM198308-198707

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAE82,CE80..MTM198308-198707

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAE82,CE80..MTM198308-198707

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iAE82..5F198508-198607

WHITE

main31451-22060iAE82..5F198607-198707

BLACK

main31451-30060iCE80..MTM198308-198508

main31451-32010iAE82..5F198308-198508

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iCE80..5F198506-198508

sub31404-28012

main31404-30041iCE80..MTM198308-198506

main31453-22010iAE82..5F198308-198610

sub31453-35010

main31453-35010iAE82..5F198610-198707

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE82..5F198308-198707

main31454-24010iCE80..MTM198308-198508

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
