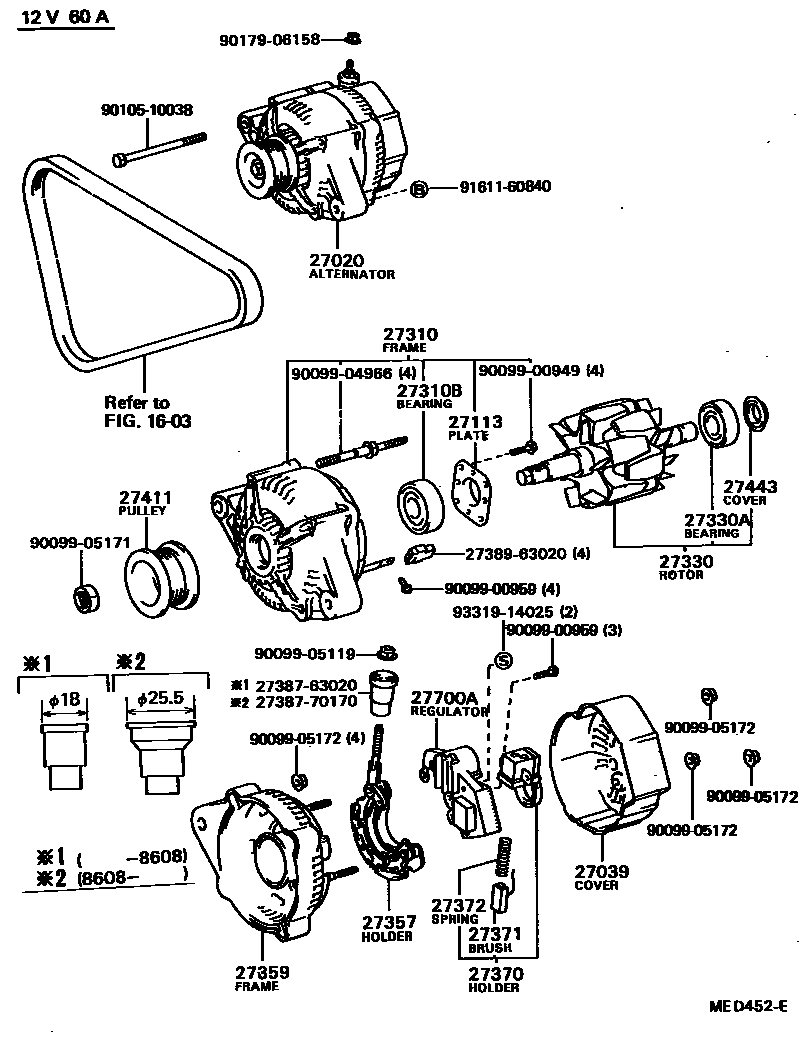

ALTERNATOR

0001 1 0002 1

1603

27020ALTERNATOR ASSY

main27020-64080i1CLC..CE80198308-198508

12V 55A

sub27020-64100

main27020-64100i1CLC..CE80..3FC198308-198508

12V 60A,12V 60A

main27060-63030i4ALC..AE82198308-198608

12V 60A

main27060-63031i4ALC..AE82198608-198707

12V 60A,12V 60A

27039COVER, ALTERNATOR REAR END

main27039-63040i4ALC..AE82198308-198505

12V 60A

sub27039-72110

main27039-72110i4ALC..AE82198505-198707

12V 60A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-57060i1CLC..CE80198308-198508

12V 55A,60A

main27312-63020i4ALC..AE82198308-198501

12V 60A

main27312-72100i4ALC..AE82198501-198707

12V 60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-63040i4ALC..AE82198308-198501

12V 60A

main27310-63041i4ALC..AE82198501-198707

12V 60A

main27310-64060i1CLC..CE80198308-198508

12V 55A,60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i1CLC..CE80198308-198508

12V 55A,60A

main90099-10141i4ALC..AE82198308-198309

12V 60A,OD=42

main90099-10152i4ALC..AE82198309-198412

12V 60A,OD=43

main90099-10156i4ALC..AE82198412-198501

12V 60A,OD=43

sub90099-10152

main90099-10159i4ALC..AE82198501-198707

12V 60A,OD=46

sub90099-10199

27330ROTOR ASSY, ALTERNATOR

main27330-10020i4ALC..AE82198501-198706

12V 60A

sub27330-10021

main27330-10021i4ALC..AE82198706-198707

12V 60A

main27330-56190i1CLC..CE80198308-198409

12V 55A

sub27330-64080

main27330-63041i4ALC..AE82198308-198501

12V 60A

sub27330-10020

main27330-64030i1CLC..CE80..3FC198308-198508

12V 60A

sub27330-54180

main27330-64030i1CLC..CE80198409-198508

12V 55A

sub27330-54180

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4ALC..AE82198308-198707

12V 60A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63040i4ALC..AE82198308-198707

12V 60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-63040i4ALC..AE82198308-198404

12V 60A

sub27359-63041

sub27370-63021

main27359-63041i4ALC..AE82198404-198707

12V 60A

sub27359-63120

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-63020i4ALC..AE82198308-198404

12V 60A

sub27370-35060

main27370-63021i4ALC..AE82198404-198707

12V 60A

sub27370-70300

main27370-72100i4ALC..AE82198501-198603

12V 60A

sub27370-63021

27371BRUSH, ALTERNATOR

main27371-56070i1CLC..CE80198308-198508

12V 55A,60A

sub27371-54412

main27371-63020i4ALC..AE82198308-198707

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-56070i1CLC..CE80198308-198508

12V 55A,60A

main27372-63020i4ALC..AE82198308-198501

12V 60A

sub27372-87501

main27372-72100i4ALC..AE82198501-198707

12V 60A

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-16180i4ALC..AE82198706-198707

12V 60A

main27411-63021i4ALC..AE82198308-198411

12V 60A

main27411-63080i4ALC..AE82198411-198501

12V 60A

sub27411-63021

main27411-63081i4ALC..AE82198501-198706

12V 60A

sub27411-16180

main27411-64060i1CLC..CE80198308-198508

12V 55A,60A

27443COVER, ALTERNATOR BEARING

main27443-63020i4ALC..AE82198308-198707

12V 60A

27700AREGULATOR ASSY, GENERATOR

main27700-57060i1CLC..CE80198308-198508

12V 55A,60A

sub27700-64030

sub90099-05118

main27700-63020i4ALC..AE82198308-198402

12V 60A

main27700-63021i4ALC..AE82198402-198707

12V 60A

sub27700-70030

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510038

main90105-10038

9017906158

main90179-06158

9161160840

main91611-60840

9331914025

main93319-14025

29 parts on this diagram · 2 diagrams in section
