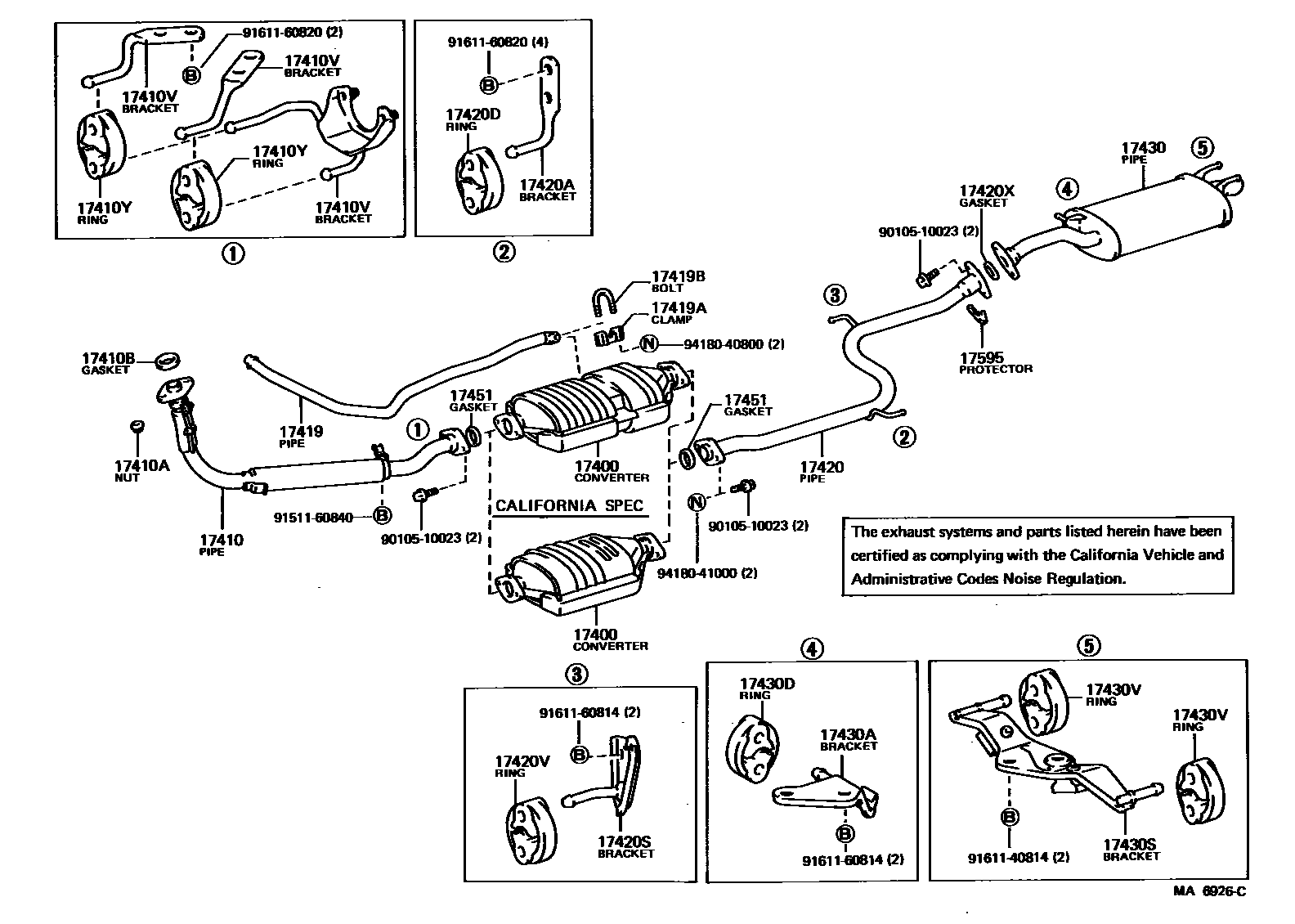

EXHAUST PIPE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
sub90917-06039
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
CTR
RH
LH
17419PIPE, CONVERTER AIR INLET
17419ACLAMP, NO.1(FOR CONVERTER AIR INLET PIPE)
17419BBOLT, U(FOR CONVERTER AIR INLET PIPE)
17420ABRACKET, EXHAUST PIPE CENTER, FRONT
17420SBRACKET, EXHAUST PIPE CENTER, REAR
17420XGASKET, EXHAUST PIPE, CENTER
sub90917-06039
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
sub90917-06039
17595PROTECTOR, EXHAUST PIPE, LOWER NO.3
9010510023
main90105-10023
9151160840
main91511-60840
9161140814
main91611-40814
9161160814
main91611-60814
9161160820
main91611-60820
9418040800
main94180-40800
9418041000
main94180-41000
29 parts on this diagram · 2 diagrams in section
