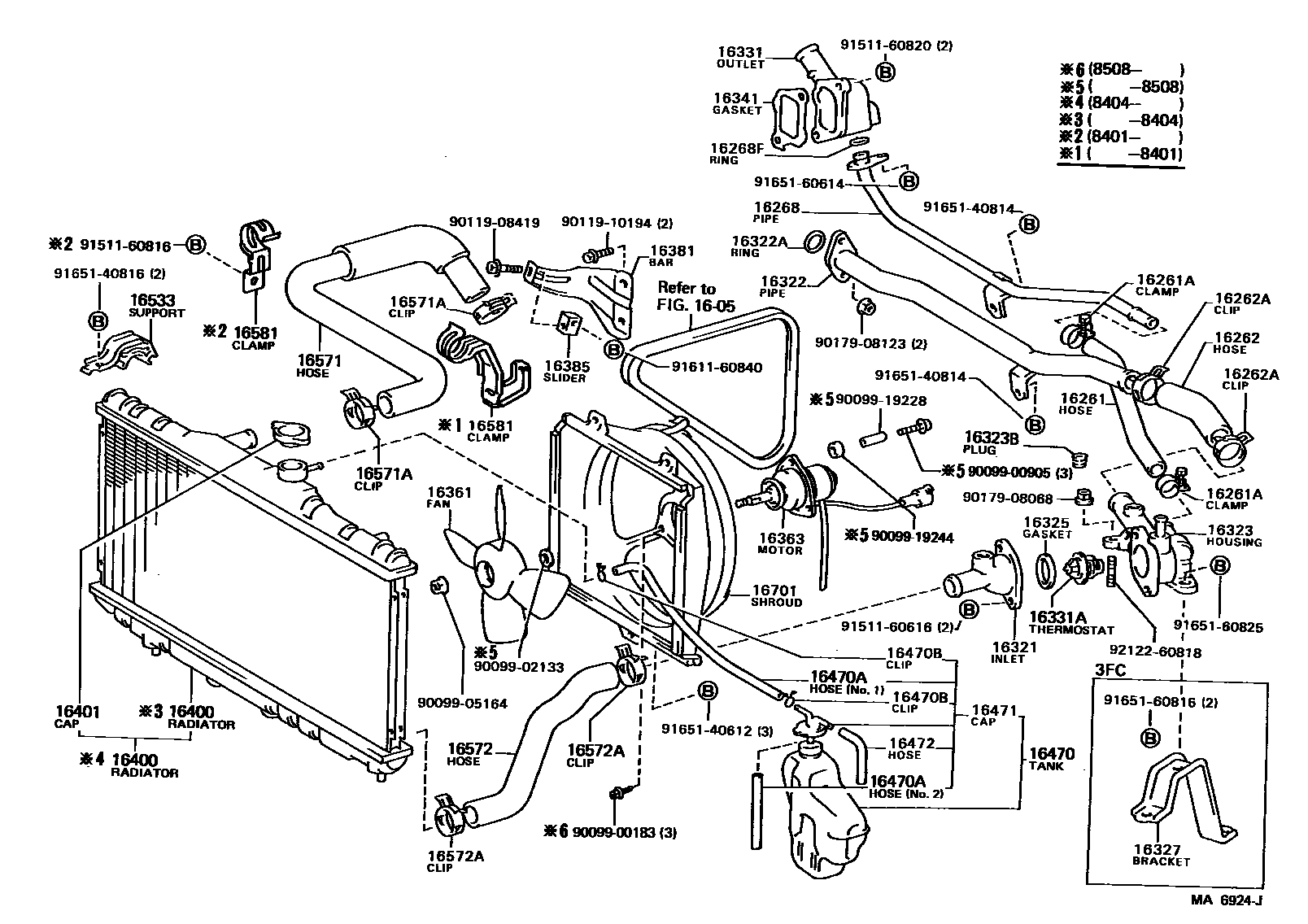

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16321INLET, WATER
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
16323BPLUG(FOR WATER INLET HOUSING)
16325GASKET, WATER INLET HOUSING, NO.1
16327BRACKET, WATER INLET HOUSING
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95,*WAX 82-95
16341GASKET, WATER OUTLET
16361FAN
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=480
*H,L=340,NO.1;*H,L=220,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
WATER INLET SIDE
16581CLAMP, HOSE(FOR WATER HOSE)
16701SHROUD SUB-ASSY, FAN
9009900183
main90099-00183
9009900905
main90099-00905
9009902133
main90099-02133
9009905164
9009919228
main90099-19228
9009919244
main90099-19244
9011908419
9011910194
9017908068
9017908123
9151160616
9151160816
9151160820
9161160840
9165140612
9165140814
9165140816
9165160614
9165160816
9165160825
9212260818
56 parts on this diagram · 3 diagrams in section
