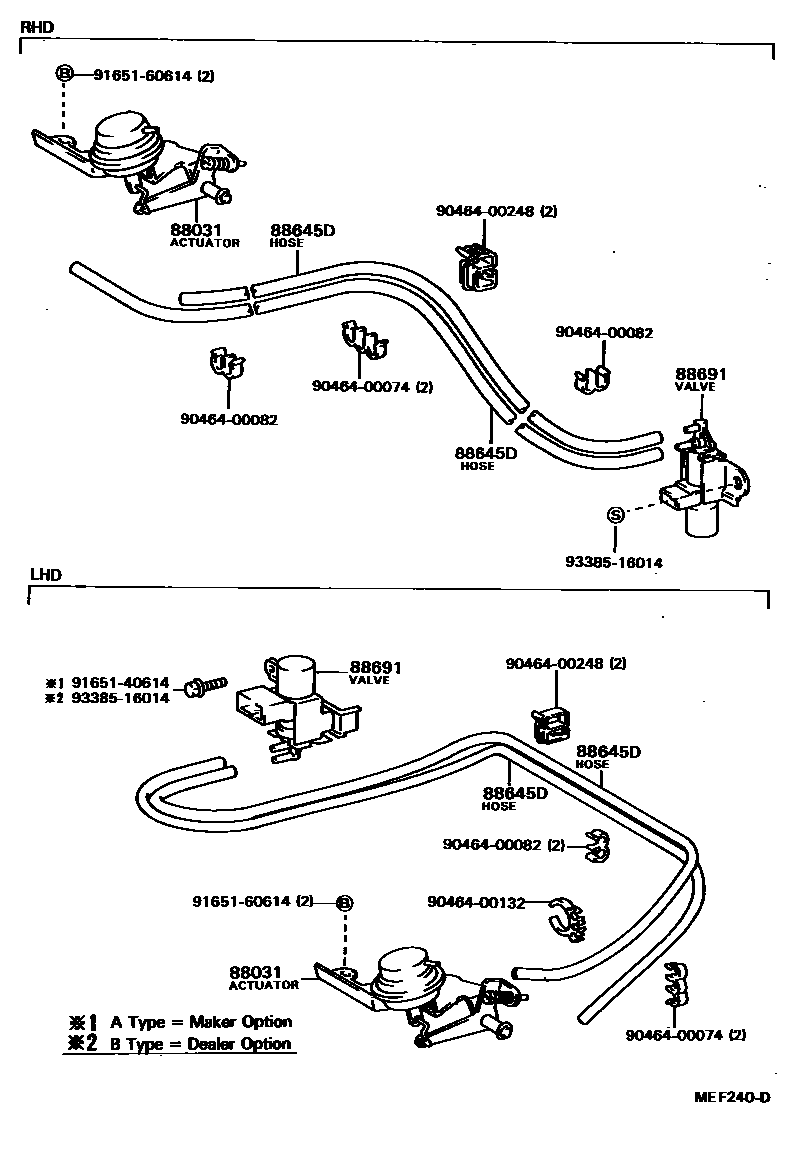

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0005 1

88031ACTUATOR SET, IDLE-UP

main88031-10010iEE80..GEN,SA,SAA¥6,100198410-198804

main88031-10020iEE80..LHD..EUR¥6,200198410-198704

FRENCH TERRITORY SPEC

sub88031-10021¥6,100

main88031-12150iCE80..XL198308-198704

HEATER IDLE UP

main88031-12160iAE8#..ARL¥10,800198411-198511

main88031-12170iAE80;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL¥10,800198511-198807

main88031-16020iAE8#..(DX,GL,SE,STD,XL)..(GEN,SA,SAA)¥13,500198305-198804

main88031-30070iCE80..LHD..EUG198404-198505

FRENCH TERRITORY SPEC

sub88031-12150

main88031-30070iCE80..GEN198305-198505

sub88031-12150

88645DHOSE (FOR IDLE UP DEVICE)

main90445-08163iAE8#..RHD..(DX,GL,STD,XL)..(GEN,SA)¥1,840198305-198505

L=1200

sub90445-08194¥1,670

main90445-08194iAE82..(DX,GL)..SA¥1,670198505-198605

*H,L=1200

sub90999-92006¥2,010

main90445-08205iAE8#..RHD..(DX,GL,STD,XL)..(GEN,SA)¥2,190198305-198505

L=1150

sub90445-08207¥2,220

main90445-08207iAE82..(DX,GL)..SA¥2,220198505-198605

L=1450(*H,L=1150)

sub90999-92006¥2,010

main95411-10030iAE8#..(4DS,5D,5DS)..LHD..(GEN,SAA)¥530198305-198707

*H,L=40,MARK=#0

sub90999-92002¥460

main95411-10060iCE80..GEN¥910198305-198704

*H,L=390,MARK=#0

sub90999-92003¥520

main95411-10060iAE8#..CS,CSX,S¥910198411-198605

*H,L=450,MARK=#0

sub90999-92003¥520

main95411-10060iAE8#..(4DS,5D,5DS)..LHD..(GEN,SAA)¥910198305-198707

*H,L=360,MARK=#0

sub90999-92003¥520

main95411-10060iAE82..(DX,GL,SE)..SA¥910198505-198804

*H,L=600,MARK=#0

sub90999-92003¥520

main95411-10060iAE8#..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL¥910198605-198807

*H,L=330,MARK=#0

sub90999-92003¥520

main95411-10095iEE80..SA¥1,540198505-198804

*H,L=900,MARK=#0

sub90999-92004¥890

main95411-10095iEE80..GEN,SA,SAA¥1,540198410-198605

*H,L=750,MARK=#0

sub90999-92004¥890

main95411-10095iEE80..LHD..GEN¥1,540198410-198704

*H,L=800,MARK=#0,B TYPE

sub90999-92004¥890

main95411-10095iEE80..LHD..(GEN,SAA)¥1,540198505-198707

*H,L=750,MARK=#0,A TYPE

sub90999-92004¥890

main95411-19930iAE8#..CS,CSX,S¥530198411-198605

*H,L=80,MARK=#*

sub90999-92002¥460

main95411-19930iAE8#..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL¥530198605-198807

*H,L=140,MARK=#*

sub90999-92002¥460

main95411-19930iAE8#..(4DS,5D,5DS)..LHD..(GEN,SAA)¥530198305-198707

*H,L=260,MARK=#*

sub90999-92002¥460

main95411-19960iAE8#..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL¥910198605-198807

*H,L=360,MARK=#*

sub90999-92003¥520

main95411-19960iAE8#..CS,CSX,S¥910198411-198605

*H,L=420,MARK=#*

sub90999-92003¥520

main95411-19995iEE80..LHD..GEN¥1,540198505-198804

*H,L=700,MARK=#*

sub90999-92004¥890

main95411-19995iEE80..GEN,SA,SAA¥1,540198410-198605

*H,L=750,MARK=#*

sub90999-92004¥890

main95411-19995iCE80..GEN¥1,540198305-198704

*H,L=850,MARK=#*

sub90999-92004¥890

main95411-19995iEE80..LHD..EUR¥1,540198410-198704

*H,L=850,MARK=#*,B TYPE

sub90999-92004¥890

main95411-19995iAE82..RHD..(GL,XL)..GEN¥1,540198505-198804

*H,L=950,MARK=#*

sub90999-92004¥890

main95411-19995iEE80..LHD..(GEN,SAA)¥1,540198505-198707

*H,L=750,MARK=#*,A TYPE

sub90999-92004¥890

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-12280iEE80..LHD..EUG198404-198505

FRENCH TERRITORY SPEC

main88690-12280iAE8#,EE80..LHD..(DX,GL,STD,XL)..(GEN,SAA)198305-198505

main88690-12281iEE80..LHD..EUR198505-198704

FRENCH TERRITORY SPEC

main88690-12281iAE82,CE80,EE80..LHD..(GL,STD,XL)..(GEN,SAA)198505-198707

main88690-12370iAE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL198411-198807

main88691-12080iAE82..RHD..GT..(ARL,GEN,SA)198410-198807

main88691-12090iAE82..LHD..GT..GEN198410-198704

main88691-30430iAE8#,EE80..RHD..(DX,GL,STD,XL)..(GEN,SA)198305-198605

sub89570-28050¥6,600

main88691-90K02iAE82,EE80..(DX,GL,SE,STD)..SA198505-198804

9046400074

main90464-00074¥120

9046400082

main90464-00082¥100

9046400132

main90464-00132¥240

9046400248

main90464-00248¥140

9046480882

main90464-80882

9165140614

main91651-40614¥160

9165160614

main91651-60614¥70

9338516014

main93385-16014¥80

11 parts on this diagram · 4 diagrams in section
