WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12350iAE8#,CE80..RHD198305-198408

sub85110-12420

main85110-12360iAE8#,CE80,EE80..LHD..EUG198305-198505

COLD SPEC

sub85110-12520

main85110-12360iAE8#,CE80,EE80..LHD..EUG198305-198505

SWEDEN SPEC

sub85110-12520

main85110-12390iAE8#,CE80,EE80..LHD198305-198504

sub85110-12510

main85110-12420iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198408-198605

sub85110-20562

main85110-12440iAE82,CE80,EE80..RHD..(EUR,GEN)198505-198807

sub85110-12600

main85110-12510iAE8#,CE80,EE80..LHD198504-198707

sub85110-12520

main85110-12520iAE82..SED..DX..FRG198505-198704

SWEDEN SPEC

main85110-12520iAE82,CE80,EE80..LHD..(EUG,FRG)198505-198704

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-12400iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198807

main85160-12410iAE8#,CE80,EE80..LHD198305-198707

sub85160-12420

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAE8#,CE80,EE80198305-198507

main90176-08033iAE8#,CE80,EE80198507-198807

85190ARM ASSY, WINDSHIELD WIPER

main85190-12620iAE8#,CE80,EE80..RHD..(GEN,SA)198305-198807

RH

main85190-12630iAE8#,CE80,EE80..LHD..EUR198305-198704

LH

main85190-12640iAE8#,CE80,EE80..LHD..(GEN,SAA)198305-198707

LH

main85190-12690iAE8#,CE80,EE80..RHD..EUG198305-198704

RH

main85210-12160iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198807

LH

main85210-12170iAE8#,CE80,EE80..LHD198305-198707

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12450iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198807

LH

sub85220-12561

main85220-12510iAE8#,CE80,EE80..LHD198305-198707

RH

main85220-16180iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198807

RH

sub85220-16350

main85220-16270iAE8#,CE80,EE80..LHD198305-198707

LH

sub85220-16640

85221BLADE, WINDSHIELD WIPER

main85221-12210iAE8#,CE80,EE80..LHD198305-198707

RH

sub85214-12H90

main85221-12210iAE8#,CE80..RHD198305-198308

LH

sub85214-12H90

main85221-12230iAE8#..ARL198308-198807

LH

sub85214-12H90

main85221-17020iAE82,CE80,EE80..RHD..(EUR,GEN,SA)198608-198807

RH

sub85221-40040

main85221-17020iAE82,CE80,EE80..LHD198608-198707

LH

sub85221-40040

main85221-30100iAE8#,CE80..LHD198305-198608

LH

sub85221-40040

main85221-30100iAE8#,CE80..RHD198305-198308

RH

sub85221-40040

main85221-30120iAE8#..ARL198308-198608

RH

sub85221-40040

9009900913

main90099-00913

9009900955

main90099-00955

9011906151

main90119-06151

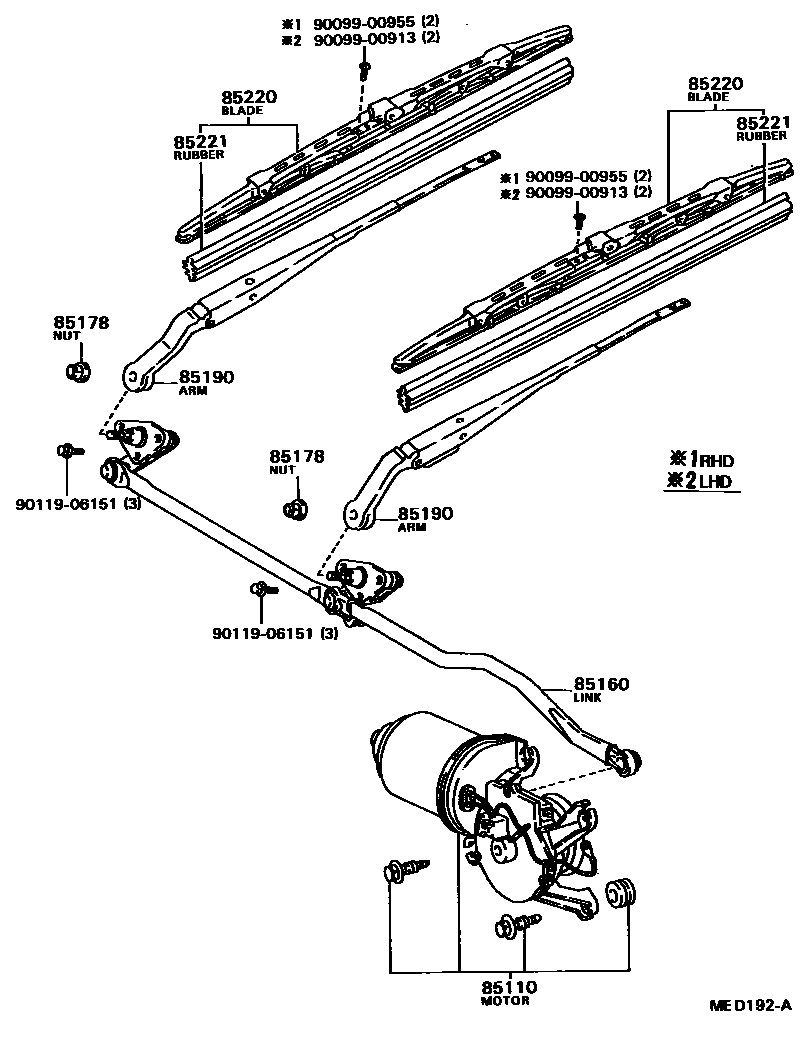

9 parts on this diagram · 1 diagram in section
