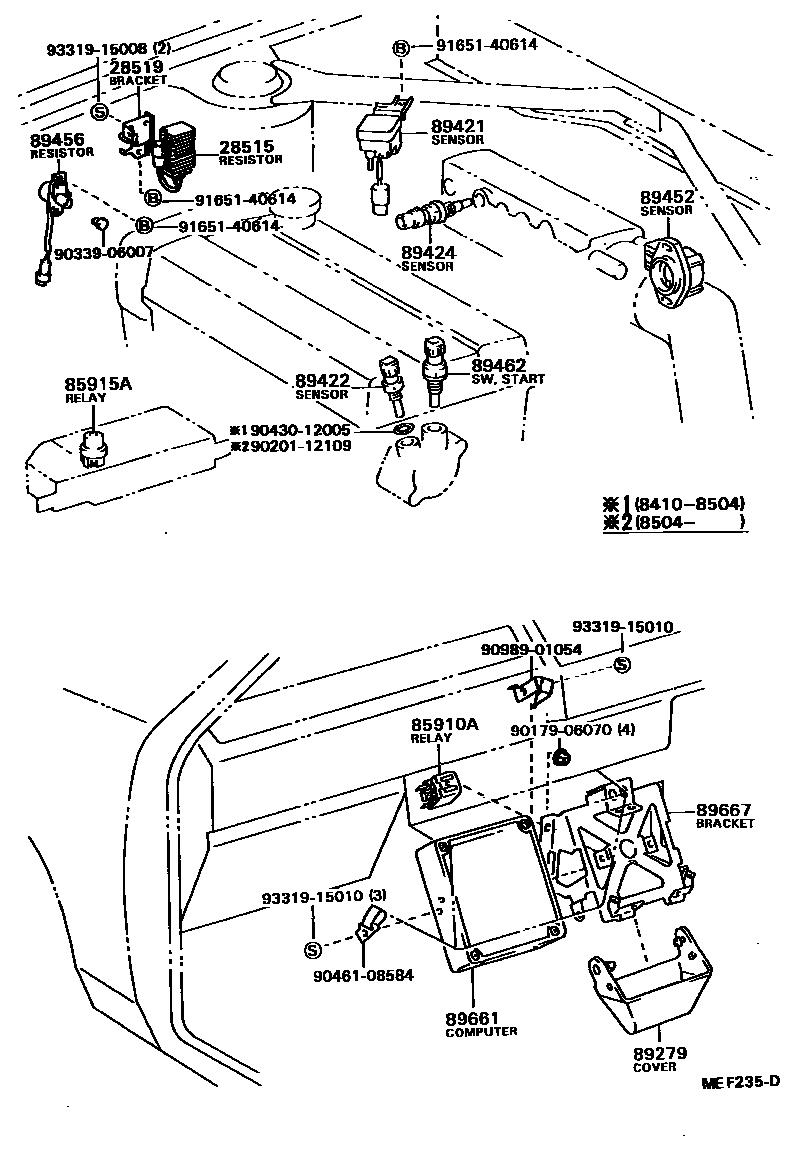

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-16020i4AG#..AE82198708-198807

28519BRACKET, SOLENOID RESISTOR

main28519-16050i4AG#..AE82198708-198807

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iAE82..GT198410-198807

85915ARELAY, MAIN

main90987-02004iAE82..GT198410-198807

89279COVER, ENGINE CONTROL COMPUTER

main89279-12010iAE82..GT198410-198807

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-12030iAE82..GT198410-198807

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-12010iAE82..GT198708-198807

main89422-30020iAE82..GT198410-198708

sub89422-12010

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE82..GT198708-198807

main89424-28010iAE82..GT198410-198708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iAE82..GT198708-198807

DENSO

main89452-12050iAE82..GT..SA198708-198807

AISIN

sub89452-33010

main89452-14050iAE82..GT..ARL198607-198708

main89452-20050iAE82..GT..ARL198511-198607

main89452-20070iAE82..GT..(EUR,GEN,SA)198607-198708

main89452-28010iAE82..GT..(EUR,GEN,SA)198410-198607

sub89452-28040

89456RESISTOR, VARIABLE

main89456-12020iAE82..GT..(EUR,GEN,SA)198410-198804

89462SWITCH, START INJECTOR TIME

main89462-12010iAE82..GT198708-198807

main89462-30011iAE82..GT198410-198708

89661COMPUTER, ENGINE CONTROL

main89661-12040iAE82..GT..EUG198410-198704

main89661-12070iAE82..GT..(GEN,SA)198410-198708

main89661-12080iAE82..GT..ARL198511-198708

main89661-12250iAE82..GT..ARL198708-198807

main89661-12260iAE82..GT..SA198708-198804

sub89661-12190

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12010iAE82..GT198410-198807

9017906070

main90179-06070

9020112109

main90201-12109

9033906007

main90339-06007

9043012005

main90430-12005

9046108584

main90461-08584

9098901054

main90989-01054

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

22 parts on this diagram · 1 diagram in section
