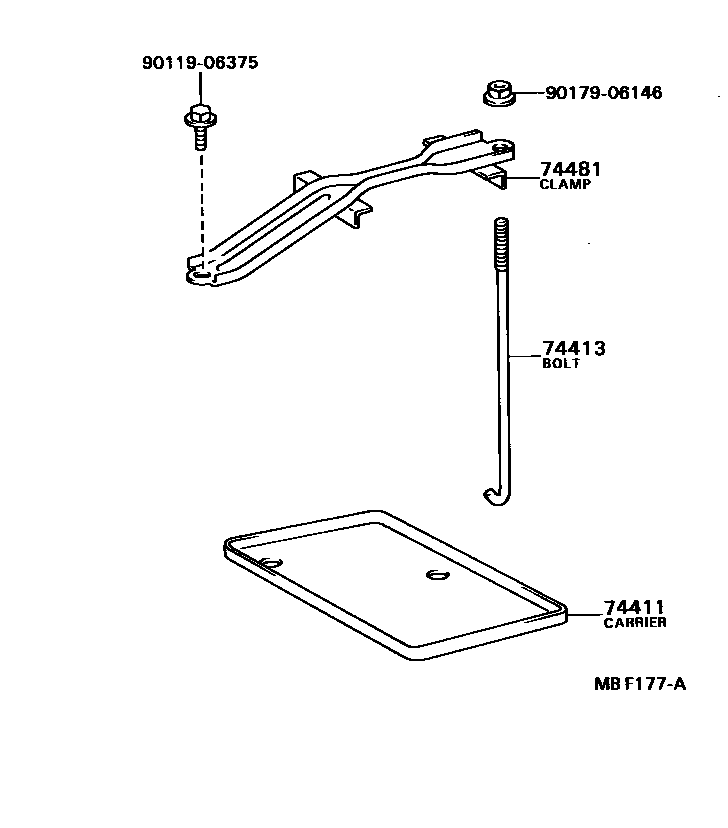

BATTERY CARRIER

74411CARRIER, BATTERY

main74431-14010iAE8#,EE80..ARL,GEN,SAA198305-198807

NS40SL,NS40ZAL,28B19L,34B19L

sub74431-14050

main74431-14020iEE80..4DS,5D;AE80..DX,GL,STD;AE82..(DX,GL)..(GEN,SA);AE82..(DX,GL)..(EUG,FRG);EE80..(3DS,5DS)..(GEN,SA);EE80..(3DS,5DS)..(EUG,FRG);AE82..(GT,SE,STD,XL)..(EUR,GEN,SA198305-198807

N40L,32C24L

main74431-14030iAE8#,EE80..EUR198408-198704

NX110-5L,80D26L

sub74431-52040

main74431-14030iCE80198305-198704

50D20L,55D23L

sub74431-52040

main74431-14040iCE80198305-198704

NX120-7L,95D31L

74413BOLT, BATTERY CLAMP

main74451-16010iAE8#,CE80,EE80198305-198807

74481CLAMP, BATTERY HOLD DOWN

main74404-12220iAE8#,EE80..ARL,GEN,SAA198305-198807

NS40SL,NS40ZAL,28B19L,34B19L

main74404-12230iCE80198305-198704

50D20L,55D23L

main74404-12230iCE80198305-198704

NX1105L,NX1207L,80D26L,95D31L

main74404-12240iEE80..4DS,5D;AE80..DX,GL,STD;AE82..(DX,GL)..(GEN,SA);AE82..(DX,GL)..(EUG,FRG);EE80..(3DS,5DS)..(GEN,SA);EE80..(3DS,5DS)..(EUG,FRG);AE82..(GT,SE,STD,XL)..(EUR,GEN,SA198305-198807

N40L,32C24L

9011906375

main90119-06375

9017906146

main90179-06146

5 parts on this diagram · 1 diagram in section
