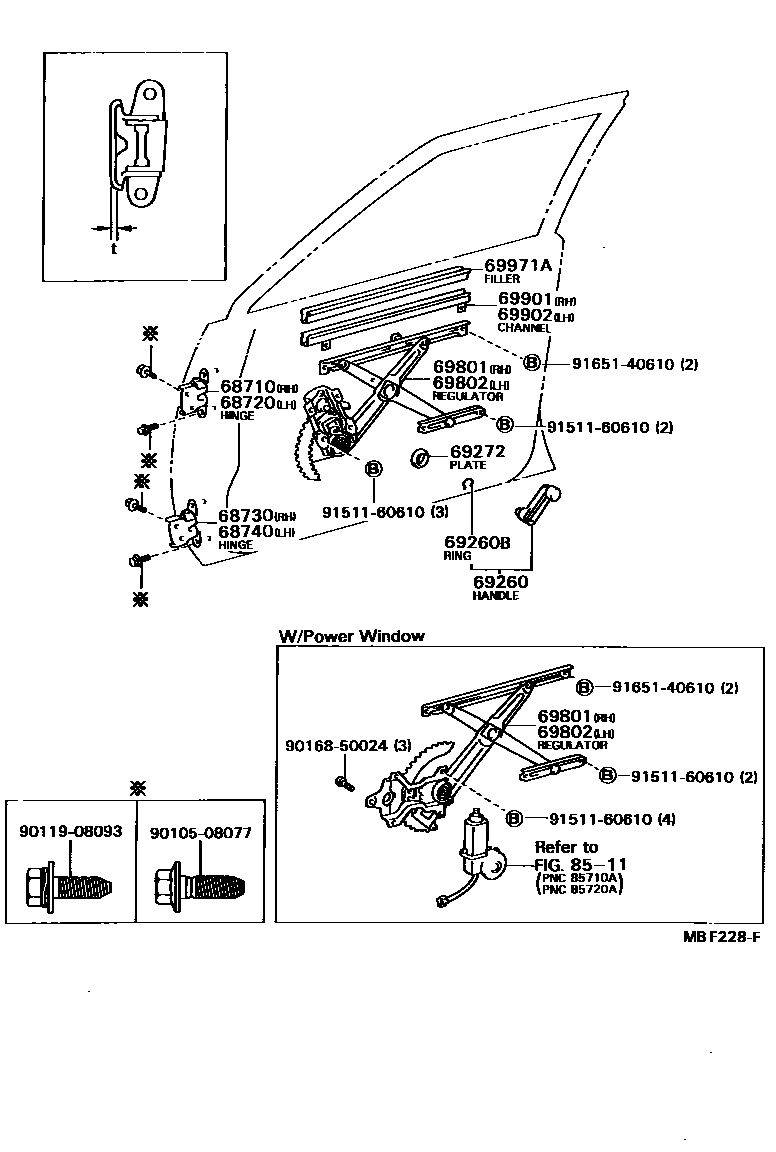

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12080iAE8#,CE80¥3,000198305-198807

T=5.0

main68710-12090iAE8#,CE80,EE80¥2,990198305-198807

T=4.0

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12080iAE82,CE80¥3,000198305-198807

T=5.0

main68720-12090iAE8#,CE80,EE80¥2,990198305-198807

T=4.0

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iAE8#,CE80,EE80¥2,990198305-198807

T=4.0

sub68730-60020¥2,050

main68730-32010iAE8#,CE80¥2,980198305-198807

T=5.0

sub68730-30090¥3,000

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iAE8#,CE80,EE80¥2,990198305-198807

T=4.0

sub68740-60020¥2,050

main68740-32010iAE82,CE80¥2,980198305-198807

T=5.0

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-10iAE8#,CE80,EE80..ARL,GEN,SAA198505-198807

BROWN,SEPIA BROWN,TRIM4#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-10040-33iAE8#,CE80,EE80..ARL,GEN,SAA198505-198807

GRAY,SHADOW GRAY,TRIM1#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-10040-44iAE82,CE80,EE80..(4DS,5D)..(GL,STD,XL)..(GEN,SAA)198505-198707

BLUE,BLUE,TRIM8#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-12060-03iAE8#,CE80..GEN,SAA198305-198401

GRAY,GRAY,TRIM1#

sub69260-14020¥1,600

main69260-12060-04iAE8#,CE80..GEN,SAA198305-198401

BLUE,BLUE,TRIM8#

sub69260-14020¥1,600

main69260-12060-05iAE8#,CE80..GEN,SAA198305-198401

BEIGE,BEIGE,TRIM3#

sub69260-14020¥1,600

main69260-12070-03iAE8#,CE80..EUR198305-198401

GRAY,GRAY,TRIM1#

sub69260-14030¥1,610

main69260-12070-04iAE8#,CE80..EUR198305-198401

BLUE,BLUE,TRIM8#

sub69260-14030¥1,610

main69260-12070-05iAE8#,CE80..EUR198305-198401

BEIGE,BEIGE,TRIM3#

sub69260-14030¥1,610

main69260-14020-04iAE8#,CE80,EE80..(4DS,5D)..(ARL,GEN,SAA)198401-198505

BLUE,BLUE,TRIM8#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-12iAE8#,CE80..GEN,SAA198401-198408

MAROON,RED/MAROON,TRIM3#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-23iAE8#,CE80..GEN,SAA198305-198401

GRAY,GRAY,TRIM1#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-25iAE8#,CE80..GEN,SAA198305-198401

BEIGE,BEIGE,TRIM3#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-33iAE8#,CE80,EE80..ARL,GEN,SAA198401-198505

GRAY,GRAY,TRIM1#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-34iAE8#,CE80..GEN,SAA198305-198401

BLUE,BLUE,TRIM8#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-36iAE8#,CE80,EE80..ARL,GEN,SAA198408-198505

BROWN,BROWN,TRIM4#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14030-04iAE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD)..(EUR,SA)198401-198807

BLUE,BLUE,TRIM8#

sub69260-14030¥1,610

main69260-14030-12iAE8#,CE80..EUR,SA198401-198408

MAROON,RED/MAROON,TRIM3#

sub69260-14030¥1,610

main69260-14030-23iAE8#,CE80..EUR198305-198401

GRAY,GRAY,TRIM1#

sub69260-14030¥1,610

main69260-14030-25iAE8#,CE80..EUR198305-198401

BEIGE,BEIGE,TRIM3#

sub69260-14030¥1,610

main69260-14030-26iAE8#,CE80,EE80..EUR,SA198408-198807

BROWN,SEPIA BROWN,TRIM4#

sub69260-14030¥1,610

main69260-14030-33iAE8#,CE80,EE80..EUR,SA198401-198807

GRAY,GRAY,TRIM1#

sub69260-14030¥1,610

main69260-14030-34iAE8#,CE80..EUR198305-198401

BLUE,BLUE,TRIM8#

sub69260-14030¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAE8#,CE80,EE80¥180198305-198807

sub90520-01274¥160

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE8#,CE80,EE80¥180198305-198807

sub69268-20020¥180

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12080iEE80..4DS..RHD..5F..GL..GEN¥6,000198605-198807

W/*PW

main69801-12090iAE82..GT..EUG¥6,000198608-198704

W/*PW

main69810-12180iAE8#,CE80,EE80..4DS,5D,5DS¥5,100198305-198602

sub69810-12250¥4,950

main69810-12190iAE82,CE80,EE80..3DS¥5,000198410-198602

sub69810-12270¥4,830

main69810-12250iAE8#,CE80,EE80..4DS,5D,5DS¥4,950198602-198807

main69810-12270iAE82,CE80,EE80..3DS¥4,830198602-198704

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12080iEE80..4DS..RHD..5F..GL..GEN¥6,000198605-198807

W/*PW

main69802-12090iAE82..GT..EUG¥6,000198608-198704

W/*PW

main69820-12170iAE8#,CE80,EE80..4DS,5D,5DS¥5,100198305-198602

sub69820-12250¥4,950

main69820-12190iAE82,CE80,EE80..3DS¥5,000198410-198602

sub69820-12270¥4,830

main69820-12250iAE8#,CE80,EE80..4DS,5D,5DS¥4,950198602-198807

main69820-12270iAE82,CE80,EE80..3DS¥4,830198602-198704

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12150iAE8#,CE80..EUR,GEN,SAA¥870198305-198509

W/GLASS,T=3.5

sub69901-12151¥880

main69901-12151iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SAA)¥880198509-198602

W/GLASS,T=3.5

sub69901-12152¥890

main69901-12152iAE82,CE80,EE80..EUR,GEN,SA,SAA¥890198602-198807

W/GLASS,T=3.5

main69901-12160iAE8#,CE80,EE80..ARL,GEN,SA¥880198305-198602

W/GLASS,T=4.0

sub69901-12161¥880

main69901-12162iAE8#,CE80,EE80..ARL,GEN¥880198602-198807

W/GLASS,T=4.0

main69901-12170iAE82,CE80,EE80..3DS¥870198410-198509

W/GLASS,T=3.5

sub69901-12171¥880

main69901-12171iAE82,CE80,EE80..3DS¥880198509-198602

W/GLASS,T=3.5

sub69901-12152¥890

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-12090iAE8#,CE80..EUR,GEN,SAA¥870198305-198509

W/GLASS,T=3.5

sub69902-12091¥880

main69902-12091iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SAA)¥880198509-198602

W/GLASS,T=3.5

sub69902-12092¥890

main69902-12092iAE82,CE80,EE80..EUR,GEN,SA,SAA¥890198602-198807

W/GLASS,T=3.5

main69902-12100iAE8#,CE80,EE80..ARL,GEN,SA¥880198305-198602

W/GLASS,T=4.0

sub69902-12101¥880

main69902-12102iAE8#,CE80,EE80..ARL,GEN¥880198602-198807

W/GLASS,T=4.0

main69902-12110iAE82,CE80,EE80..3DS¥870198410-198509

W/GLASS,T=3.5

sub69902-12111¥880

main69902-12111iAE82,CE80,EE80..3DS¥880198509-198602

W/GLASS,T=3.5

sub69902-12092¥890

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-12040iAE8#,CE80,EE80¥600198305-198509

sub69971-12070¥600

main69971-12070iAE8#,CE80,EE80¥600198509-198807

sub69971-60020¥630

8511

9010508077

main90105-08077¥110

9011908093

main90119-08093¥90

9016850024

main90168-50024¥120

9151160610

main91511-60610¥120

9165140610

main91651-40610¥160

18 parts on this diagram · 2 diagrams in section
