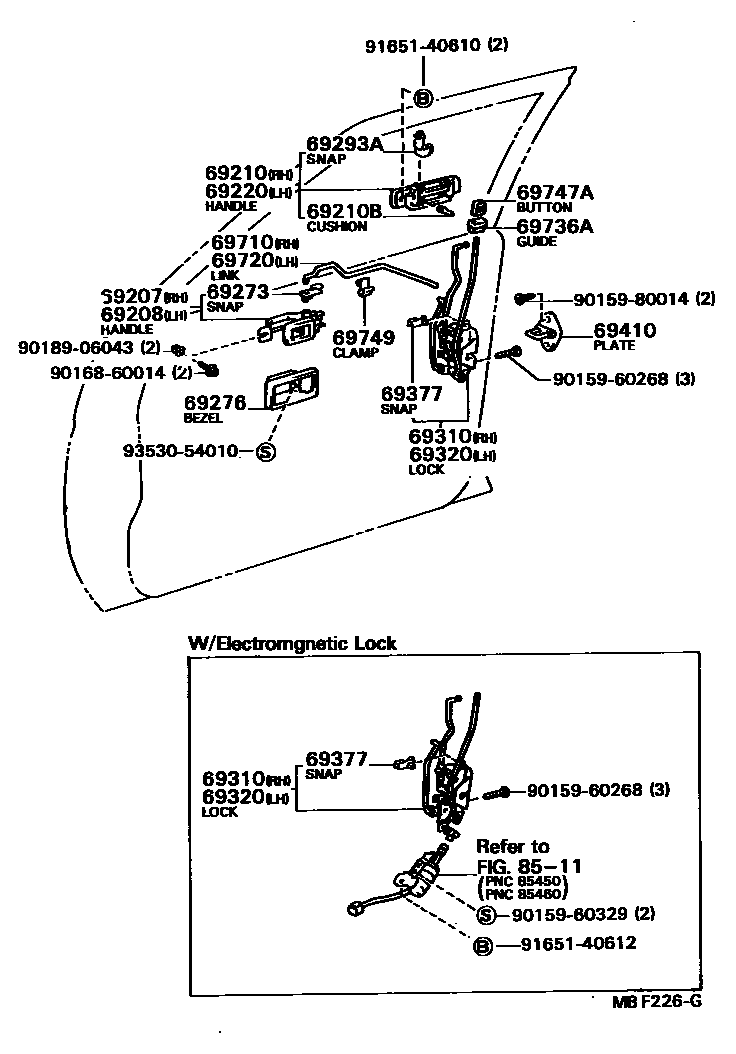

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-02iAE8#,CE80..DX,GL,XL198305-198408

MAROON,RED/MAROON,TRIM3#

sub69205-12070¥2,170

main69205-12070-03iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

GRAY,GRAY,TRIM1#

sub69205-12070¥2,170

main69205-12070-04iAE8#,CE80..DX,GL,XL198305-198401

BLUE,BLUE,TRIM8#

sub69205-12070¥2,170

main69205-12070-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198401-198807

BLUE,BLUE,TRIM4#

sub69205-12070¥2,170

main69205-12070-13iAE80..STD198305-198401

GRAY,GRAY,TRIM1#

sub69205-12070¥2,170

main69205-12070-14iAE80..STD198305-198401

BLUE,BLUE,TRIM8#

sub69205-12070¥2,170

main69205-12070-15iAE80..STD198305-198401

BEIGE,BEIGE,TRIM3#

sub69205-12070¥2,170

main69205-12070-16iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,SEPIA BROWN,TRIM4#

sub69205-12070¥2,170

main69205-12090-03iAE82,CE80,EE80..3DS198410-198704

GRAY,GRAY,TRIM1#

main69205-12090-06iAE82,CE80,EE80..3DS198410-198704

BROWN,BROWN,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-02iAE8#,CE80..DX,GL,XL198305-198408

MAROON,RED/MAROON,TRIM3#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-03iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

GRAY,GRAY,TRIM1#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-04iAE8#,CE80..DX,GL,XL198305-198807

BLUE,BLUE,TRIM8#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-13iAE80..STD198305-198401

GRAY,GRAY,TRIM1#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-14iAE80..STD198305-198401

BLUE,BLUE,TRIM8#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-15iAE80..STD198305-198401

BEIGE,BEIGE,TRIM3#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-16iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,SEPIA BROWN,TRIM4#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12090-03iAE82,CE80,EE80..3DS198410-198704

GRAY,GRAY,TRIM1#

main69206-12090-06iAE82,CE80,EE80..3DS198410-198704

BROWN,BROWN,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12080iAE80,EE80..SAA¥2,720198305-198505

main69240-12060iEE80..4DS..RHD..5F..GL..GEN¥2,510198508-198704

INDONESIA SPEC

main69240-12060iEE80..4DS..RHD..5F..XL¥2,510198611-198704

MALAYSIA SPEC

main69240-12070iAE8#,CE80,EE80..ARL,EUR,GEN,SA¥2,520198305-198807

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iAE8#,CE80,EE80¥310198305-198807

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12080iAE80,EE80..SAA¥2,720198305-198505

main69230-12060iEE80..4DS..RHD..5F..XL¥2,510198611-198704

MALAYSIA SPEC

main69230-12060iEE80..4DS..RHD..5F..GL..GEN¥2,510198508-198704

INDONESIA SPEC

main69230-12070iAE8#,CE80,EE80¥2,520198305-198807

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iAE82,CE80,EE80..3DS¥240198410-198704

LH

main69759-20060iAE8#,CE80,EE80..4DS,5D,5DS¥240198305-198807

RH

main69759-20070iAE82,CE80,EE80..3DS¥140198410-198704

RH

main69759-20070iAE8#,CE80,EE80..4DS,5D,5DS¥140198305-198807

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-14030-13iAE82,CE80,EE80..3DS198410-198704

GRAY,GRAY,TRIM1#

sub69277-14030¥650

main69277-14030-26iAE82,CE80,EE80..3DS198410-198704

BROWN,SEPIA BROWN,TRIM4#

sub69277-14030¥650

main69277-32020-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-12iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-23iAE80..STD198305-198401

GRAY,GRAY,TRIM1#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-24iAE80..STD198305-198401

BLUE,BLUE,TRIM8#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-25iAE80..STD198305-198401

BEIGE,BEIGE,TRIM3#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-26iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,BROWN,TRIM4#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-33iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

GRAY,GRAY,TRIM1#

sub69277-32020¥640

sub69277-89104¥670

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE8#,CE80,EE80¥160198305-198807

RH

main69293-12040iAE8#,CE80,EE80¥160198305-198807

LH

main69293-12050iAE80,EE80..SAA¥200198305-198505

RH

main69293-12060iAE80,EE80..SAA¥200198305-198505

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12120iEE80..SAA¥5,700198505-198707

main69310-12140iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)¥5,700198305-198807

main69310-12150iAE80,EE80..SAA¥7,300198308-198505

main69310-12160iAE82..(GT,SE)..SA¥6,300198605-198807

W/*EL

main69310-12210iAE82,CE80,EE80..3DS¥8,900198410-198704

sub69310-12320¥9,900

main69310-12230iAE82..LHD..GT..EUG¥6,300198608-198704

W/*EL

sub69310-12320¥9,900

main69310-12240iAE8#..ARL¥6,300198410-198807

sub69310-12120¥5,700

main69310-12320iAE82..RHD..EUG¥9,900198608-198704

W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-12140iEE80..SAA¥5,700198505-198707

main69320-12160iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)¥8,800198305-198807

main69320-12170iAE80,EE80..SAA¥7,300198308-198505

main69320-12180iAE82..(GT,SE)..SA¥6,300198605-198807

W/*EL

main69320-12230iAE82,CE80,EE80..3DS¥8,900198410-198704

sub69320-12330¥9,900

main69320-12250iAE82..RHD..EUG¥9,800198608-198704

W/*EL

sub69320-12330¥9,900

main69320-12260iAE8#..ARL¥6,300198410-198807

sub69320-12140¥5,700

main69320-12330iAE82..LHD..GT..EUG¥9,900198608-198704

W/*EL

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20020iAE82,CE80,EE80..3DS¥260198410-198704

TYPE A,LH

main69759-20030iAE82,CE80,EE80..3DS¥250198410-198704

TYPE A,RH

main69759-20040iAE82,CE80,EE80..3DS¥220198410-198704

TYPE B,LH

main69759-20040iAE8#,CE80,EE80..4DS,5D,5DS¥220198305-198807

LH

main69759-20050iAE8#,CE80,EE80..4DS,5D,5DS¥160198305-198807

RH

main69759-20050iAE82,CE80,EE80..3DS¥160198410-198704

TYPE B,RH

main69759-20100iAE82,CE80,EE80..3DS¥250198410-198704

TYPE C,RH

main69759-20110iAE82,CE80,EE80..3DS¥250198410-198704

TYPE C,LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE8#,CE80,EE80¥710198305-198807

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-12070iAE8#,CE80,EE80..4DS,5D,5DS¥680198305-198807

main69711-12090iAE82,CE80,EE80..3DS¥660198410-198704

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-12080iAE8#,CE80,EE80..4DS,5D,5DS¥680198305-198807

main69712-12100iAE82,CE80,EE80..3DS¥660198410-198704

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iAE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SA,SAA)¥450198408-198807

main69736-22021iAE8#,CE80..DX,GL,XL¥500198305-198408

main69751-20031-01iAE82,CE80,EE80..(4DS,5DS)..STD..(EUR,GEN,SAA)198305-198807

BLACK

sub69751-20031¥330

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-01iAE8#,CE80,EE80..4DS,5D,5DS198305-198605

BLACK,BLACK

sub69741-32010¥340

sub69741-90K00¥360

main69741-90K00-01iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SAA)198505-198807

BLACK,BLACK

sub69741-90K00¥360

sub69741-89102¥340

sub69741-12040¥390

sub69741-89104¥410

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12040iAE82,CE80,EE80..3DS¥300198410-198704

main69749-20010iAE8#,CE80,EE80..4DS,5D,5DS¥180198305-198807

8511

9015960268

main90159-60268¥130

9015960329

main90159-60329¥120

9015980014

main90159-80014¥120

9016860014

main90168-60014¥120

9018906043

main90189-06043¥120

9165140610

main91651-40610¥160

9165140612

main91651-40612¥70

9353054010

main93530-54010¥70

26 parts on this diagram · 2 diagrams in section
