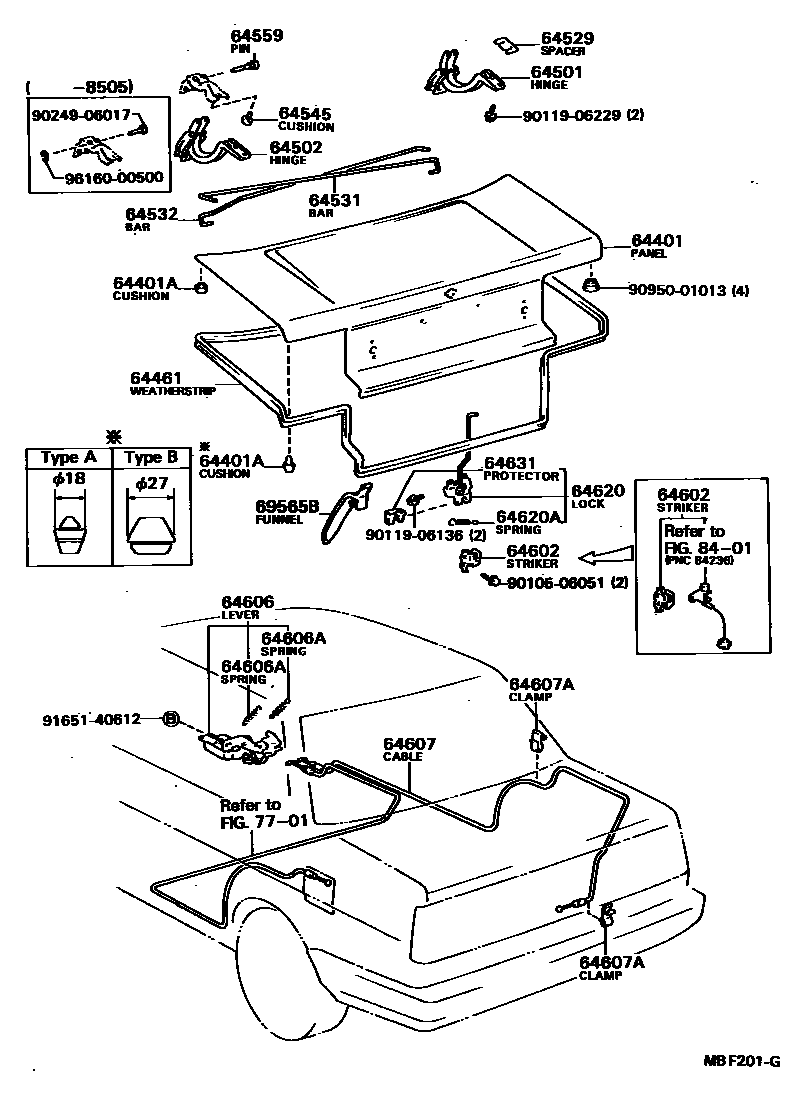

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12640iAE8#,CE80..4DS..(EUR,GEN,SAA)198305-198408

sub64401-1A070

main64401-12641iAE82,CE80,EE80..4DS..(GEN,SAA)198505-198707

main64401-12870iAE8#,CE80,EE80..4DS..EUR198408-198505

sub64401-1A150

main64401-12871iAE82,CE80,EE80..4DS..(EUR,GEN)198505-198604

*GIS

main64401-1A300iAE82,CE80,EE80..4DS..EUR198604-198704

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07003×2iAE8#,CE80,EE80..4DS198305-198807

FR

main90541-09041×2iAE8#,CE80,EE80..4DS198305-198505

RR,OD=18,TYPE A

main90541-19001×2iAE8#,CE80,EE80..4DS198305-198807

RR,OD=27,TYPE B

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12250iAE8#,CE80,EE80..4DS198305-198807

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12170iAE8#,CE80,EE80..4DS198305-198507

main64510-12210iAE8#,CE80,EE80..4DS198507-198807

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12160iAE8#,CE80,EE80..4DS198305-198507

main64520-12200iAE8#,CE80,EE80..4DS198507-198807

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010×4iAE8#,CE80,EE80..4DS198305-198807

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12130iAE82..4DS..CSX198411-198605

main64531-12160iAE82,CE80,EE80..4DS..(DX,GL,SE,STD,XL)198605-198807

main64531-12200iAE82..4DS..GT198605-198807

main64531-12210iAE82..4DS..(3FC,5F)..ARL198605-198807

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12120iAE82..4DS..CSX198411-198605

main64532-12150iAE82,CE80,EE80..4DS..(DX,GL,SE,STD,XL)198605-198807

main64532-12190iAE82..4DS..GT198605-198807

main64532-12200iAE82..4DS..(3FC,5F)..ARL198605-198807

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×2iAE8#,CE80,EE80..4DS198305-198807

64559PIN, LUGGAGE DOOR HINGE

main64559-12010×2iAE8#,CE80,EE80..4DS198505-198807

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iAE8#,CE80,EE80..4DS..GL..(EUR,GEN)198305-198704

sub84231-12030

main64621-12060iAE8#,CE80,EE80..4DS..(DX,STD,XL)..(EUR,GEN,SAA)198305-198707

sub64621-12070

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12050iAE8#,CE80..4DS..LHD..(DX,GL,XL)..(GEN,SAA)198305-198410

main64606-12060iAE82..4DS..(CSX,GL,GT)..(ARL,SA)198402-198605

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09034×2iAE8#,CE80,EE80..4DS..(DX,GL,XL)..(EUR,GEN,SAA)198410-198707

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12130iAE8#,CE80..4DS..RHD..(DX,GL,XL)..GEN198305-198410

main64607-12140iAE8#,CE80..4DS..LHD..(DX,GL,XL)..(GEN,SAA)198305-198410

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×2iAE82..4DS..(CSX,GL,GT)..(ARL,SA)198402-198605

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12070iAE8#,CE80..4DS..(EUR,GEN,SAA)198305-198410

main64610-12110iAE82,CE80,EE80..4DS..(DX,GL)..EUR198410-198505

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAE8#,CE80,EE80..4DS198305-198807

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAE8#,CE80,EE80..4DS198308-198807

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12010iAE8#,CE80,EE80..4DS198305-198807

7701

8401

9010506051

main90105-06051

9011906136

main90119-06136

9011906229

main90119-06229

9024906017

main90249-06017

9095001013

main90950-01013

9165140612

main91651-40612

9616000500

main96160-00500

28 parts on this diagram · 1 diagram in section
