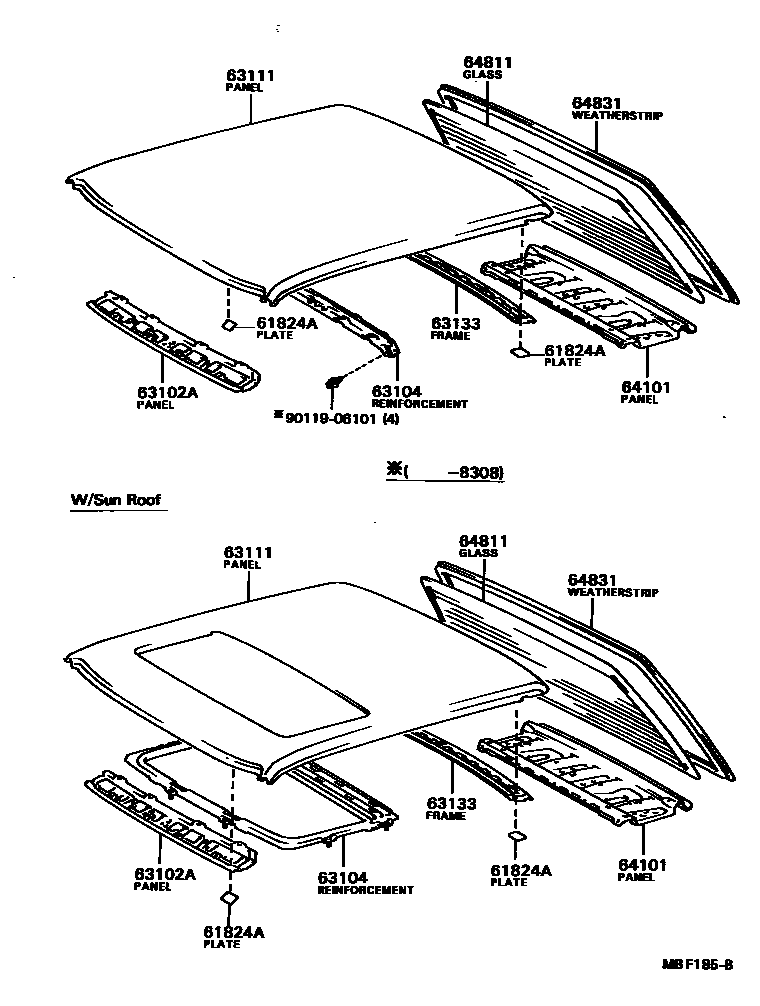

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

61824APLATE, NOISE CONTROL, NO.1

main61824-12010iAE8#,CE80,EE80..4DS198305-198807

sub62939-23010

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12020iAE8#,CE80,EE80..SED198305-198807

main63102-12030iAE8#,CE80,EE80..5D198305-198807

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-12100iAE8#,CE80198305-198308

W/O SUN ROOF

main63141-12110iAE8#,CE80,EE80..4DS198308-198807

W/O SUN ROOF

main63141-12120iAE8#,CE80,EE80..5D198308-198807

W/O SUN ROOF

main63142-12020iAE8#,CE80..(DX,GL,XL)..(EUR,GEN,SAA)198305-198707

W/SUN ROOF

63111PANEL, ROOF

main63111-12230iAE8#,CE80,EE80..4DS198305-198807

W/O SUN ROOF

main63111-12240iAE8#,CE80..4DS..(DX,GL,XL)..(EUR,GEN,SAA)198305-198707

W/SUN ROOF

main63111-12260iAE8#,CE80,EE80..5D198305-198807

W/O SUN ROOF

main63111-12270iAE82,CE80,EE80..5D..(EUR,GEN,SAA)198305-198707

W/SUN ROOF

main63111-12280iAE8#,CE80,EE80..3DS,5DS198410-198807

W/O SUN ROOF

main63111-12290iAE82,CE80,EE80..(3DS,5DS)..(DX,GL,GT,XL)..(EUR,GEN)198410-198704

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-12140iAE8#,CE80,EE80..4DS198305-198807

64101PANEL SUB-ASSY, UPPER BACK

main64101-12250iAE8#,CE80,EE80..4DS..(DX,STD,XL)198305-198807

sub64101-12260

main64101-12270iAE8#,CE80,EE80..4DS..(GL,GT,SE)198305-198807

sub64101-12280

64811GLASS, BACK WINDOW

main64801-12340iAE80..STD..(EUR,SAA)198305-198707

*EHT,T=3.5

sub64801-12360

main64801-12350iAE8#,CE80,EE80..4DS..LHD..(DX,STD)..EUR198305-198704

*EHT,T=3.5,HEAVY

sub64801-12370

main64801-12360iAE80,EE80..4DS..(DX,XL)..SAA198305-198707

*EHTT,T=3.5

main64801-12370iAE8#,CE80,EE80..4DS..LHD..EUR198305-198704

*EHTT,T=3.5,HEAVY

main64811-12650iAE8#,CE80..4DS..(DX,STD,XL)..GEN198305-198707

*TEM,T=3.5

sub64801-12340

main64811-12680iAE8#,CE80..4DS..GEN198305-198707

*TT,T=3.5

sub64801-12360

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-12280iAE8#,CE80,EE80..4DS198305-198807

main64812-12290iEE80..4DS..SAA198505-198707

main64812-12290iEE80..4DS..RHD..5F..GL..GEN198508-198704

INDONESIA SPEC

9011906101

main90119-06101

9 parts on this diagram · 4 diagrams in section
