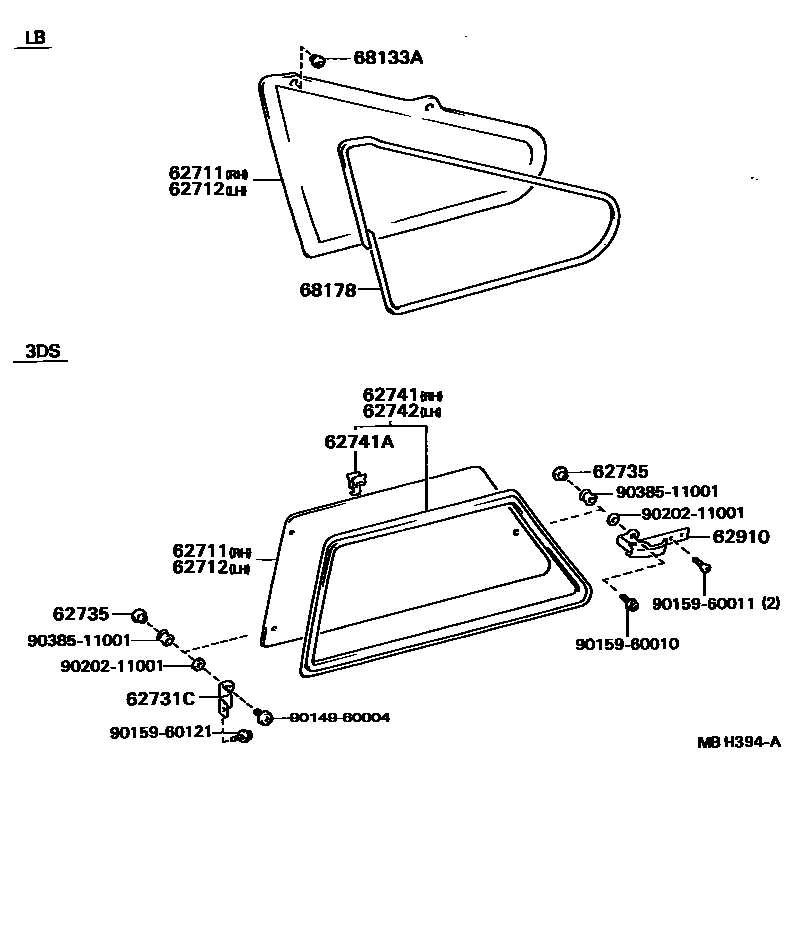

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-12390iAE8#,CE80..5D..DX..(EUR,GEN)198305-198704

*TEM,T=3.5

sub62711-12400

main62711-12400iAE8#,CE80,EE80..5D..(EUR,GEN,SAA)198305-198707

*TT,T=3.5

main62711-12440iAE82,CE80,EE80..3DS198410-198704

*TT,T=4.0

main62711-12450iAE82,CE80,EE80..3DS..(DX,STD)..EUR198410-198704

*TEM,T=4.0

sub62711-12440

62712GLASS, QUARTER WINDOW, LH

main62712-12390iAE8#,CE80..5D..DX..(EUR,GEN)198305-198704

*TEM,T=3.5

sub62712-12400

main62712-12400iAE8#,CE80,EE80..5D..(EUR,GEN,SAA)198305-198707

*TT,T=3.5

main62712-12440iAE82,CE80,EE80..3DS198410-198704

*TT,T=4.0

main62712-12450iAE82,EE80..3DS..GEN198410-198704

*TEM,T=4.0

sub62712-12440

62731CHINGE, QUARTER WINDOW, RH

main62731-12080iAE82,CE80,EE80..3DS198410-198704

62735RETAINER, QUARTER WINDOW HINGE

main62735-14010iAE82,CE80,EE80..3DS198410-198704

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12140iAE82,CE80,EE80..3DS198410-198704

62741ACLIP, QUARTER WINDOW WEATHERSTRIP

main62759-12010iAE82,CE80,EE80..3DS198410-198704

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-12120iAE82,CE80,EE80..3DS198410-198704

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-12080iAE82,CE80,EE80..3DS198410-198704

68133ASPACER, QUARTER WINDOW NO.2 GLASS

main68137-12020iAE82,CE80,EE80..5D198505-198807

main68137-32010iAE8#,CE80,EE80..5D198305-198505

68178SEAL, QUARTER WINDOW NO.2 GLASS

main68177-12020iAE8#,CE80,EE80..5D198305-198807

sub62741-12120

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9015960121

main90159-60121

9020211001

main90202-11001

9038511001

main90385-11001

16 parts on this diagram · 1 diagram in section
