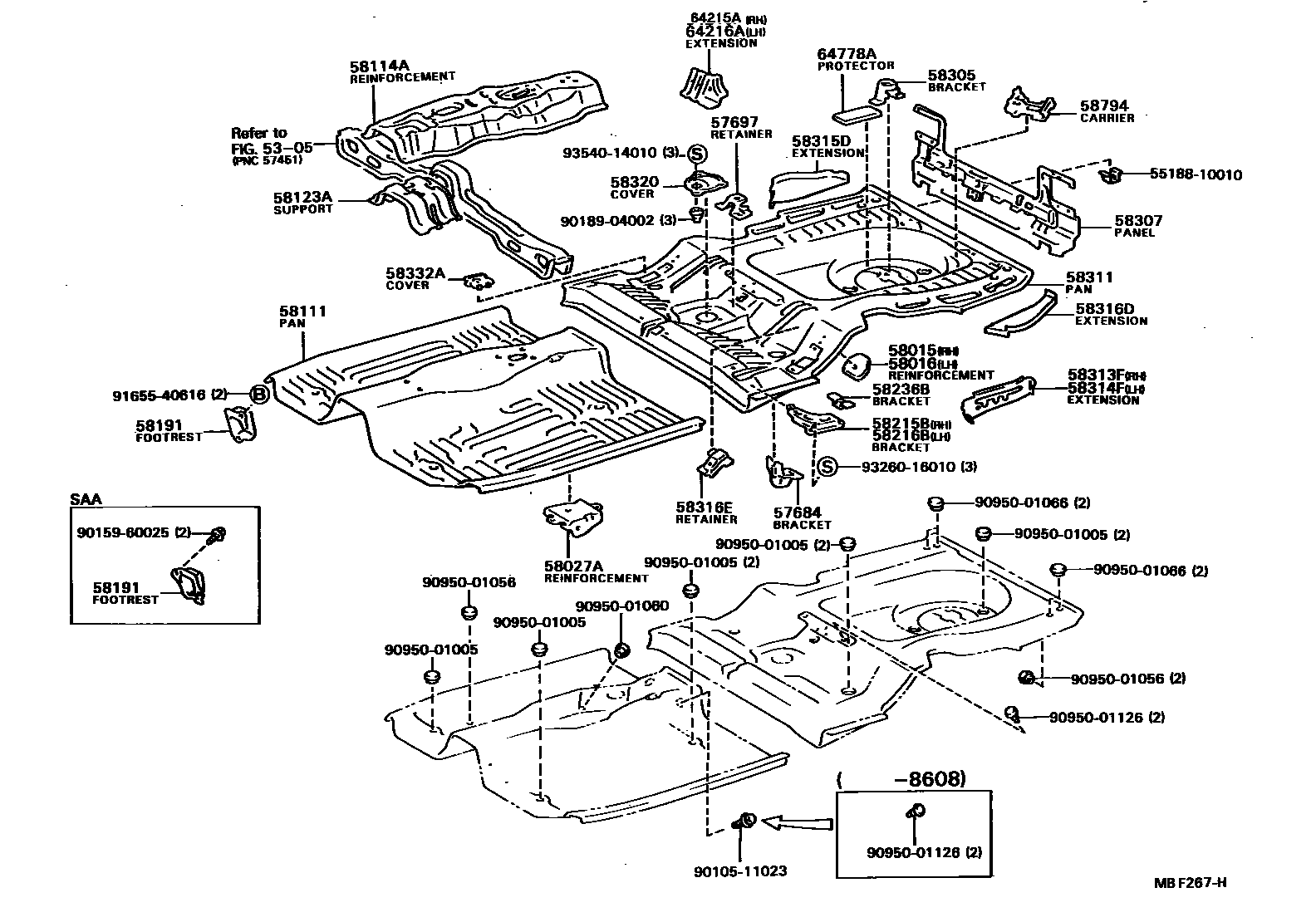

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

5305

57684BRACKET, FUEL TANK, REAR

main57686-16011iAE8#,CE80,EE80¥980198305-198807

RH

main57687-16011iAE8#,CE80,EE80¥980198305-198807

LH

57697RETAINER, REAR SEAT CUSHION

main57697-16010iAE8#,CE80,EE80¥460198305-198807

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-12010iAE82,CE80,EE80..EUR,SAA¥1,570198308-198707

main58015-16010iAE8#,CE80,EE80..ARL,GEN,SA¥1,220198305-198807

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-12010iAE8#,CE80,EE80¥1,570198308-198707

main58015-16010iAE8#,CE80¥1,220198305-198807

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12010iAE8#,CE80,EE80..EUR¥2,260198305-198704

main58027-12020iAE8#,CE80,EE80..ARL,GEN,SA,SAA¥2,170198305-198807

58111PAN, FRONT FLOOR

main58111-12170iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198807

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12020iAE8#,CE80,EE80..EUR,GEN,SA,SAA¥5,800198305-198807

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12010iAE8#,CE80,EE80¥6,400198305-198807

58191FOOTREST, FRONT FLOOR

main58191-12060iEE80..RHD..GEN;AE82..RHD..GL..GEN;AE82..(5D,5DS)..4FC..ARL;AE82..RHD..(3FC,5F)..(CSX,GT,XL)¥2,390198402-198807

main58192-12020iAE80,EE80..SAA198305-198707

main58192-12030iAE82..LHD..GT198410-198704

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-16010iAE8#,CE80,EE80¥670198305-198807

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-16010iAE8#,CE80,EE80¥670198305-198807

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAE8#,CE80,EE80¥680198305-198807

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE8#,CE80,EE80¥350198305-198807

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12820iAE8#,CE80,EE80..4DS¥23,000198305-198807

main58307-12840iAE8#,CE80,EE80..5D..(EUR,GEN,SA,SAA)¥19,800198305-198807

main58307-12860iAE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN,SA)¥17,600198410-198807

58311PAN, REAR FLOOR

main58311-12100iAE8#,CE80,EE80..4DS..(DX,S,STD,XL)¥62,900198305-198807

main58311-12110iAE8#,CE80,EE80..5D¥62,900198305-198807

main58311-16050iAE8#,CE80,EE80..3DS,5DS¥54,900198410-198807

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12170iAE8#,CE80..4DS..GEN¥1,770198305-198508

sub58313-12180¥1,780

main58313-12180iAE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)¥1,780198305-198508

*GIS

main58313-12180iAE82,CE80,EE80..4DS..(EUR,GEN,SA,SAA)¥1,780198508-198807

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12170iAE82,CE80,EE80..4DS..GEN¥1,770198305-198508

sub58314-12180¥1,780

main58314-12180iAE8#,CE80,EE80..4DS..(EUR,GEN,SA,SAA)¥1,780198305-198508

*GIS

main58314-12180iAE82,CE80,EE80..4DS..(EUR,GEN,SA,SAA)¥1,780198508-198807

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12010iAE8#,CE80,EE80..4DS,5D¥1,070198305-198807

main58315-12020iAE8#,CE80,EE80..3DS,5DS¥910198410-198807

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12010iAE8#,CE80,EE80..4DS,5D¥1,070198305-198807

main58316-12020iAE8#,CE80,EE80..3DS,5DS¥910198410-198807

58316ERETAINER, REAR SEAT SET

main58316-16030iAE8#,CE80,EE80..4DS..(DX,S,STD,XL)¥750198305-198807

58320COVER, REAR FLOOR SERVICE HOLE

main58325-16020iAE8#,CE80,EE80¥680198305-198807

58332ACOVER, REAR FLOOR SIDE SERVICE HOLE

main58331-16010iAE8#,CE80,EE80¥670198305-198807

RH

main58332-16010iAE8#,CE80,EE80¥670198305-198807

LH

58794CARRIER, JACK

main58791-12090iAE8#,CE80,EE80¥780198408-198807

main58791-16031iAE8#,CE80¥1,090198305-198408

64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH

main64215-12010iAE8#,CE80,EE80..4DS¥510198305-198807

64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH

main64216-12010iAE8#,CE80,EE80..4DS¥510198305-198807

64778APROTECTOR, SPARE WHEEL

main64778-12010iAE8#,CE80,EE80¥1,530198305-198506

sub64778-12020¥1,540

main64778-12020iAE8#,CE80,EE80¥1,540198506-198807

5518810010BRACKET, UNDER TRAY SUPPORT

main55188-10010¥300

9010511023

main90105-11023¥190

9015960025

main90159-60025¥200

9018904002

main90189-04002¥100

9095001005

main90950-01005¥400

9095001056

main90950-01056¥230

9095001060

main90950-01060¥200

9095001066

main90950-01066¥210

9095001126

main90950-01126¥360

9165540616

main91655-40616¥120

9326016010

main93260-16010¥110

9354014010

main93540-14010¥100

39 parts on this diagram · 3 diagrams in section
