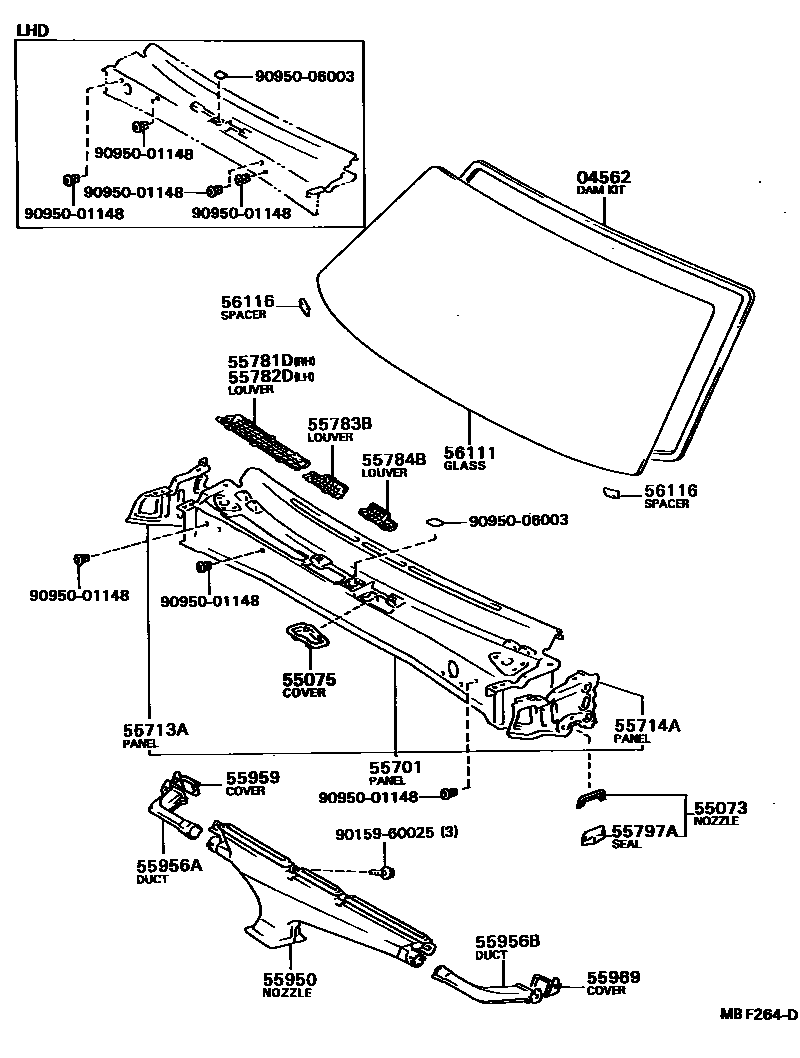

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30030iAE8#,CE80¥2,680198305-198308

sub04562-30040¥2,390

main04562-30040iAE8#,CE80,EE80¥2,390198308-198807

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iAE82,CE80,EE80..EUR¥740198512-198807

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-12060iAE8#,CE80,EE80..RHD..GEN¥2,120198306-198704

main55077-12070iAE8#,CE80,EE80..LHD..(GEN,SAA)¥2,120198306-198707

55701PANEL SUB-ASSY, COWL

main55700-12270iAE8#,EE80..RHD..(DX,GL,STD,XL)¥38,600198305-198705

sub55700-12370¥38,600

main55700-12280iCE80..RHD¥38,600198305-198506

sub55700-12380

main55700-12290iAE8#,EE80..LHD..(DX,GL,STD,XL)¥38,600198305-198707

main55700-12300iCE80..LHD¥38,600198305-198704

main55700-12340iAE82..RHD..GT..(GEN,SA)¥38,600198410-198705

sub55700-12360¥38,600

main55700-12350iAE82..LHD..GT198410-198704

main55700-12360iAE82..RHD..EUG¥38,600198506-198807

main55700-12370iAE82,EE80..(DX,GL,STD)..SA¥38,600198506-198807

main55700-12380iCE80..RHD198506-198704

55713APANEL, COWL TOP SIDE, RH

main55713-12060iAE8#,CE80,EE80¥1,980198305-198807

55714APANEL, COWL TOP SIDE, LH

main55714-12060iAE8#,CE80,EE80¥1,980198305-198807

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-12130iAE8#,CE80,EE80..RHD¥1,440198305-198807

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-12020iAE8#,CE80,EE80..LHD¥1,440198305-198610

sub55782-12050¥1,440

main55782-12050iAE82,CE80,EE80..LHD..EUR¥1,440198604-198610

COLD SPEC

main55782-12050iAE82,CE80,EE80..LHD¥1,440198610-198707

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-12160iAE8#,CE80,EE80¥920198305-198610

sub55783-12190¥930

main55783-12190iAE8#,CE80,EE80¥930198610-198807

main55783-12190iAE82,CE80,EE80..LHD..EUR¥930198604-198610

COLD SPEC

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-12030iAE8#,CE80,EE80¥920198305-198610

sub55784-12060¥930

main55784-12060iAE82,CE80,EE80..LHD..EUR¥930198604-198610

COLD SPEC

main55784-12060iAE8#,CE80,EE80¥930198610-198807

55797ASEAL, COWL WATER EXTRACT

main55797-20030iAE8#,CE80,EE80..ARL,EUR¥260198512-198807

55950NOZZLE ASSY, DEFROSTER

main55950-12060iAE8#,CE80,EE80..RHD¥5,700198305-198807

main55950-12070iAE8#,CE80,EE80..LHD¥5,700198305-198707

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-12040iAE8#,CE80,EE80¥1,920198305-198807

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-12030iAE8#,CE80,EE80¥1,920198305-198807

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-12020iAE8#,CE80,EE80..GEN,SAA198305-198707

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55969-12020iAE8#,CE80,EE80..GEN,SAA198305-198707

56111GLASS, WINDSHIELD

main56111-12530iAE8#,CE80,EE80..SED..GEN¥0198305-198704

*ZT,T=5.0

sub56111-12560¥96,500

main56111-12540iAE80,EE80..STD¥84,600198305-198807

*LAM,T=5.3

sub56111-12560¥96,500

main56111-12550iAE8#,CE80,EE80..SED..GEN¥53,500198305-198704

*TZT,T=5.0

sub56111-12560¥96,500

main56111-12560iAE8#,CE80,EE80..SED..(EUR,GEN)¥96,500198305-198707

*TL,T=5.3

sub56111-12680¥104,000

main56111-12580iAE8#,EE80..5D..GEN¥46,000198305-198704

*ZT,T=5.0

sub56111-12610¥99,000

main56111-12590iAE8#,CE80,EE80..5D..(DX,XL)..(EUR,GEN)¥87,000198305-198704

*LAM,T=5.3

sub56111-12610¥99,000

main56111-12600iAE82..5D..GEN;AE82..5D..(EUG,FRG);AE80,CE80,EE80..5D..(EUR,GEN)¥52,100198305-198704

*TZT,T=5.0

sub56111-12610¥99,000

main56111-12610iAE8#,CE80,EE80..5D..(EUR,GEN,SAA)¥99,000198305-198707

*TL,T=5.3

sub56111-12690¥107,000

main56111-12680iAE8#,EE80..SED..(CS,CSX,DX,GL,GT,S,SE)..(ARL,SA)¥104,000198605-198807

W/TOP SHADE,*TL,T=5.3

sub56111-12560¥96,500

main56111-12690iAE82..5D..GT..SA¥107,000198410-198807

*TL,T=5.3

main56111-12690iEE80..5D..RHD..GL¥107,000198602-198704

W/TOP SHADE,*TL,T=5.3

main56111-12740iAE82,CE80,EE80..SED..(DX,STD)..(EUG,FRG)198601-198605

*LAM,T=5.96

main56111-12750iAE82,CE80,EE80..SED..(DX,GL,STD)..(EUG,FRG)198601-198605

*TL,T=5.96

56116SPACER, WINDSHIELD GLASS

main56116-24010iAE8#,CE80,EE80¥230198305-198807

9015960025

main90159-60025¥200

9095001148

main90950-01148¥120

9095006003

main90950-06003¥40

21 parts on this diagram · 1 diagram in section
