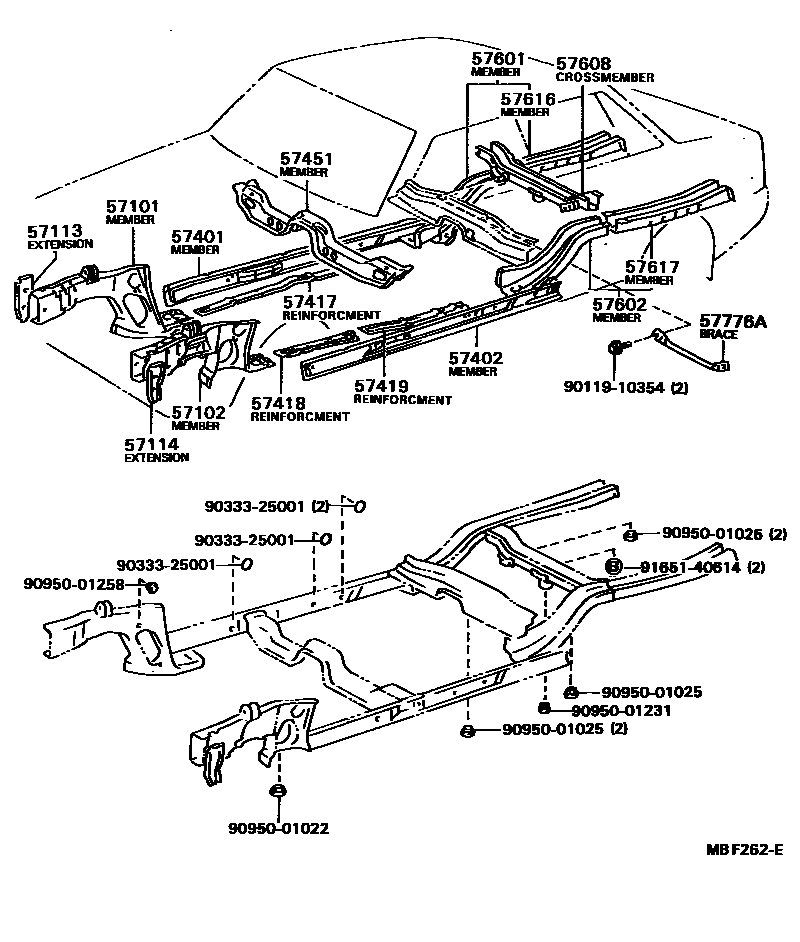

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12240iEE80..SAA198410-198609

sub57101-12241

main57101-12241iEE80..SAA198609-198707

main57101-12250iAE80..SAA198308-198410

sub57101-12251

main57101-12260iCE80..EUG198305-198310

sub57101-20380

main57101-12270iAE8#..EUR198305-198310

sub57101-20390

main57101-12280iCE80..GEN198305-198402

sub57101-12281

main57101-12281iCE80,EE80..GEN198402-198704

sub57101-20381

main57101-12290iAE8#..GEN198305-198402

sub57101-12291

main57101-12291iAE8#..GEN198402-198704

sub57101-20391

main57101-20380iCE80..EUG198310-198402

sub57101-20381

main57101-20381iCE80,EE80..EUR,SA198402-198807

main57101-20390iAE8#..EUR198310-198402

sub57101-20391

main57101-20391iAE8#..ARL,EUR,SA198402-198807

main57101-20510iCE80,EE80..GEN198604-198704

HARSH ROAD PACKAGE

main57101-20520iAE82..(GL,STD,XL)..GEN198604-198704

HARSH ROAD PACKAGE

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12250iAE80,EE80..SAA198308-198707

main57102-12260iCE80..EUG198305-198310

sub57102-20360

main57102-12270iAE8#..EUR198305-198310

sub57102-20340

main57102-12280iCE80..GEN198305-198402

sub57102-12281

main57102-12281iCE80..GEN198402-198704

sub57102-20361

main57102-12290iAE8#..GEN198305-198402

sub57102-12291

main57102-12291iAE8#,EE80..GEN198402-198704

sub57102-20341

main57102-12340iAE82..(GL,STD,XL)..GEN198604-198704

HARSH ROAD PACKAGE

main57102-20340iAE8#..EUR198310-198402

sub57102-20341

main57102-20341iAE8#,EE80..ARL,EUR,SA198402-198807

main57102-20360iCE80..EUG198310-198402

sub57102-20361

main57102-20361iCE80..EUG198402-198704

main57102-20500iCE80..GEN198604-198704

HARSH ROAD PACKAGE

57113EXTENSION, FRONT SIDE MEMBER, RH

main57105-12030iAE80,EE80..SAA198308-198707

main57113-12090iAE8#,CE80,EE80..ARL,EUR,GEN,SA198305-198807

57114EXTENSION, FRONT SIDE MEMBER, LH

main57106-12030iAE80,EE80..SAA198308-198707

main57114-12090iAE8#,CE80,EE80..ARL,EUR,GEN,SA198305-198807

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12180iAE8#,CE80,EE80..(4DS,5D,5DS)..GEN198305-198512

sub57401-12200

main57401-12190iAE80,EE80..SAA198308-198707

main57401-12200iAE8#,CE80,EE80..(4DS,5D,5DS)..EUR198305-198704

main57401-12220iAE82,EE80..3DS..GEN198410-198512

sub57401-12230

main57401-12230iAE82,CE80,EE80..3DS198410-198704

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12180iAE8#,CE80,EE80..(4DS,5D,5DS)..GEN198305-198512

sub57402-12200

main57402-12190iAE80,EE80..SAA198308-198707

main57402-12200iAE8#,CE80,EE80..(4DS,5D,5DS)..EUR198305-198704

main57402-12220iAE82,EE80..3DS..GEN198410-198512

sub57402-12230

main57402-12230iAE82,CE80,EE80..3DS198410-198704

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12060iAE8#,CE80198305-198410

sub57417-12070

main57417-12070iAE8#,CE80,EE80198410-198807

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20030iAE8#,CE80198305-198410

sub57418-20040

main57418-20040iAE8#,CE80,EE80198410-198807

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-12010iAE8#,CE80198305-198410

sub57419-12020

main57419-12020iAE8#,CE80,EE80198410-198807

57451MEMBER, FRONT FLOOR CROSS

main57408-12040iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198807

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12340iAE82..(4DS,5D)..(EUG,SDZ);AE82..(4DS,5D)..(ARL,GEN,SA);AE80,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)198305-198512

sub57601-12370

main57601-12360iAE80,EE80..SAA198308-198512

sub57601-12390

main57601-12370iAE8#,CE80,EE80..4DS,5D198508-198807

main57601-12370iAE82..5F..GL..EUG198504-198505

*FRG

main57601-12390iEE80..SAA198512-198707

main57601-12410iAE8#..5DS..ARL198511-198807

main57601-12450iAE8#,CE80,EE80..3DS,5DS198410-198512

sub57601-12410

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12310iAE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)198305-198807

main57602-12330iAE80,EE80..SAA198308-198707

main57602-12360iAE8#,CE80,EE80..3DS,5DS198410-198807

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-12050iAE8#,CE80,EE80..(DX,GL,STD,XL)..(EUR,GEN,SAA)198305-198707

sub57606-12070

main57606-12070iAE82..GT..(EUR,GEN)198410-198704

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-12900iAE80,EE80..SAA198308-198707

main57615-16900iAE8#,CE80,EE80..3DS,5DS198410-198807

sub57615-16901

main57615-16902iAE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)198305-198807

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-12900iAE80,EE80..SAA198308-198707

main57616-16900iAE8#,CE80,EE80..3DS,5DS198410-198807

sub57616-16901

main57616-16902iAE8#,CE80,EE80..(4DS,5D)..(ARL,EUR,GEN,SA)198305-198807

57776ABRACE, REAR LOWER ARM BRACKET

main57776-12010iAE82..GT198410-198807

9011910354

main90119-10354

9033325001

main90333-25001

9095001022

main90950-01022

9095001025

main90950-01025

9095001231

main90950-01231

9095001258

main90950-01258

9165140614

main91651-40614

23 parts on this diagram · 1 diagram in section
